Slide nut A4 35 | 20 | 8 | M10

morepic-1

morepic-2

Slide nut A4

Item no. 1147234 | EAN 4012196489916

Item no. / Types

Length	35 mm

Width	20 mm

Height

Thread

Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails

Technical data

Technical data

Dimension	M10
Dimension H	8 mm
Height	8 mm
Length	35 mm
Material	Stainless steel

Surface	Bright, treated
Thread	M10
Thread metric	10
Width	20 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41SN M6 A4	35 mm	20 mm	6 mm	M6	1147226	piece	50 piece
MS41SN M8 A4	35 mm	20 mm	6 mm	M8	1147230	piece	50 piece
MS41SN M10 A4	35 mm	20 mm	8 mm	M10	1147234	piece	50 piece
MS41SN M12 A4	35 mm	20 mm	9 mm	M12	1147238	piece	50 piece

Downloads

Data sheet MS41SN M10 A4 / 1147234 , 0.19MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS41SN M10 A4 / 1147234 , 0.04MB , pdf

Download

REACH Declaration of conformity MS41SN M10 A4 / 1147234 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS41SN M10 A4 / 1147234 , 0.12MB , pdf

Download

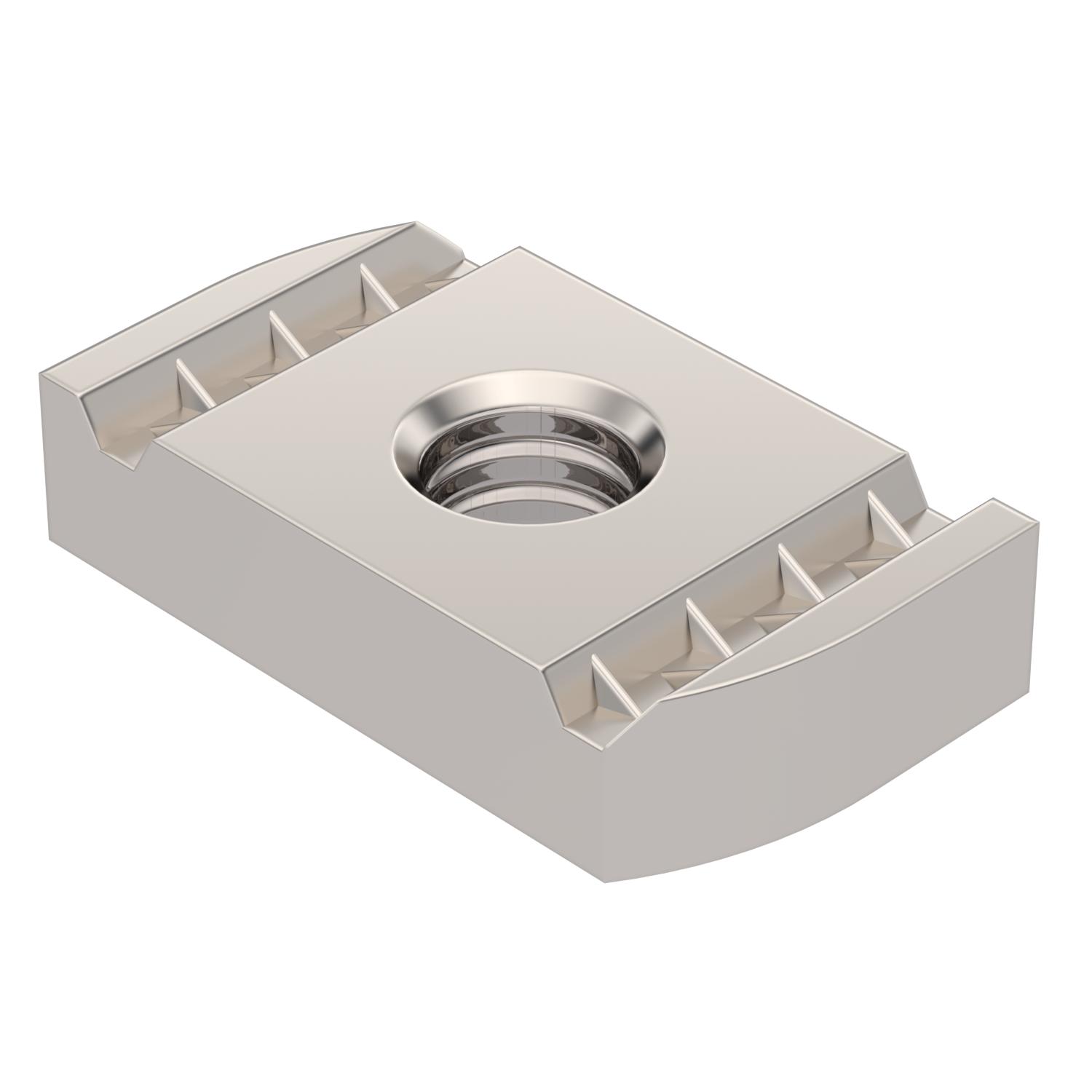

Product graphic MS41SN M10 A4 / 1147234, 54.14 kB, jpg

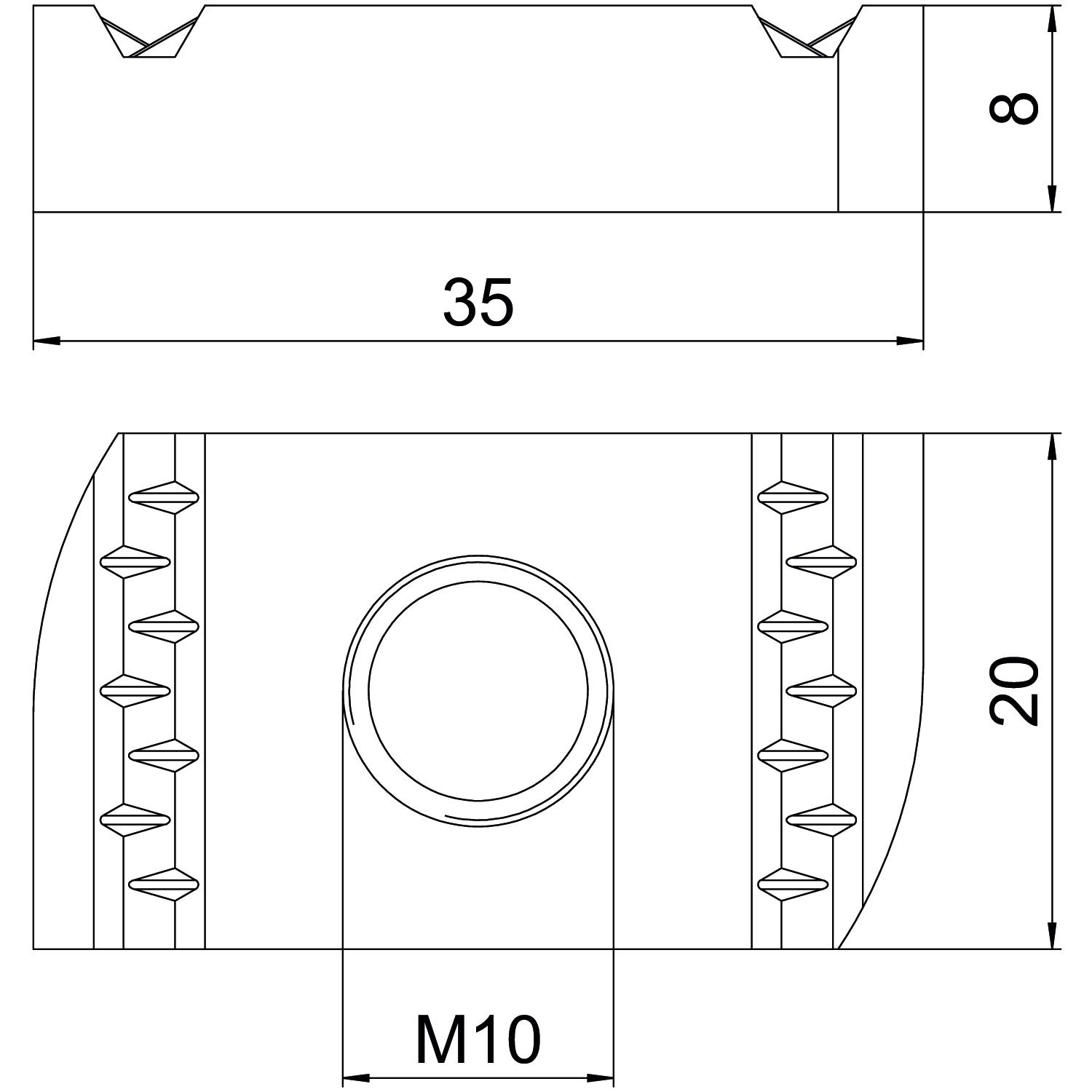

Scale drawing MS41SN M10 A4 / 1147234, 96.90 kB, jpg

MS41SN M10 A4 / 1147234
