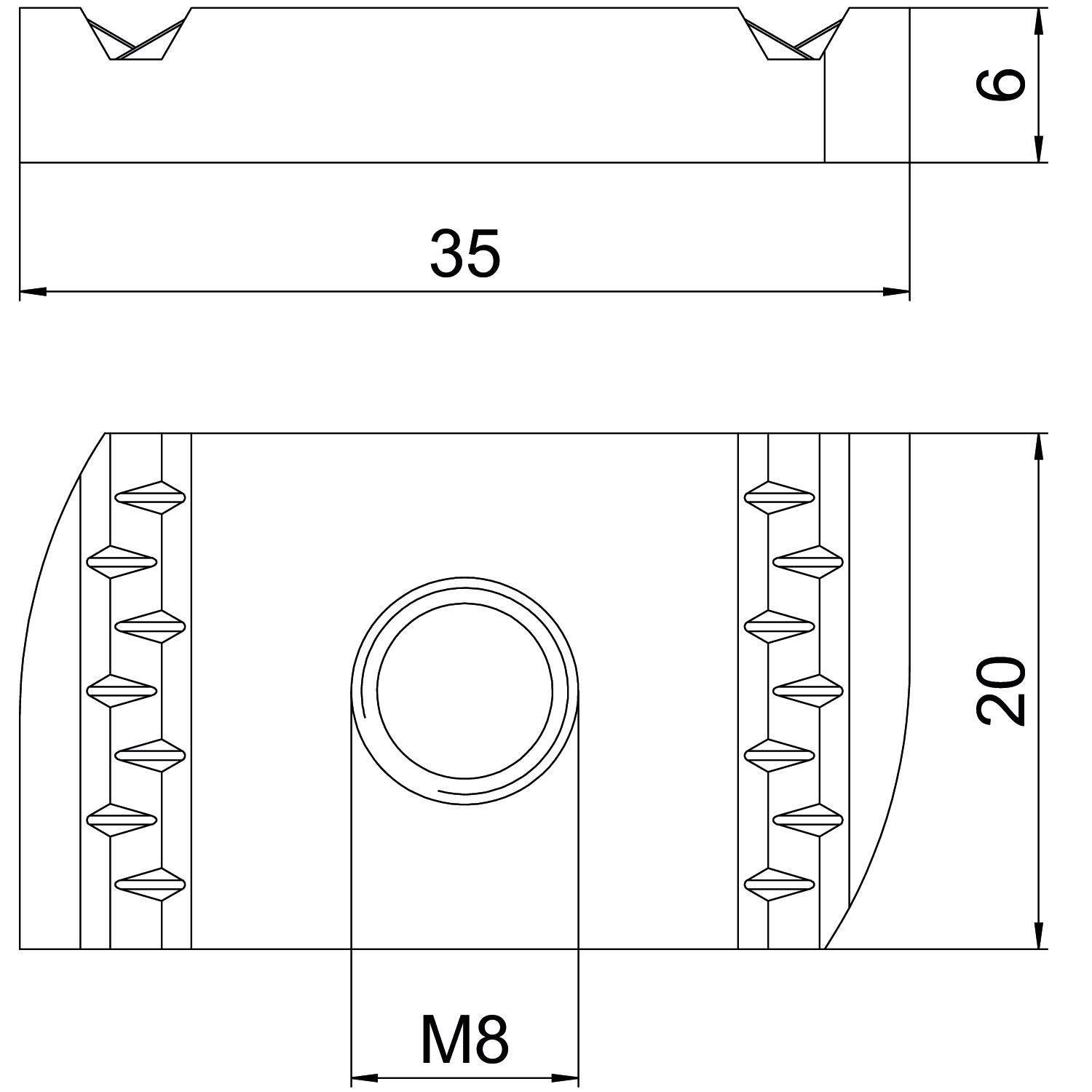

Slide nut A4 35 | 20 | 6 | M8
morepic-1 morepic-2

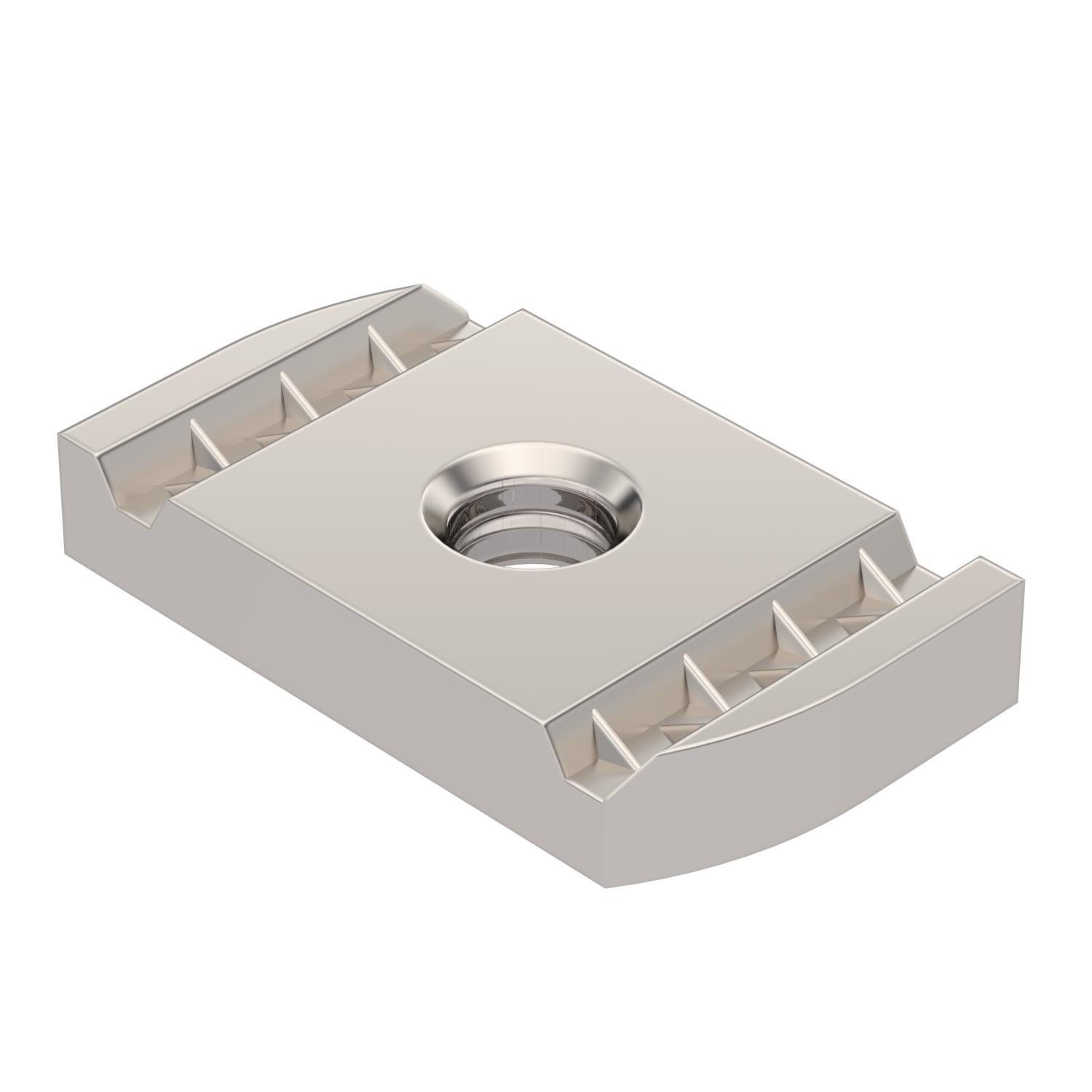

Slide nut A4

Item no. 1147230 | EAN 4012196489909

35 mm
20 mm
Product description
Product description
Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,136 kg CO₂e / 1 Piece
Dimension M8
Dimension H 6 mm
Height 6 mm
Length 35 mm
Material Stainless steel
Surface Bright, treated
Thread M8
Thread metric 8
Width 20 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 A4 35 mm 20 mm 6 mm M6 1147226
50 piece
MS41SN M8 A4 35 mm 20 mm 6 mm M8 1147230
50 piece
MS41SN M10 A4 35 mm 20 mm 8 mm M10 1147234
50 piece
MS41SN M12 A4 35 mm 20 mm 9 mm M12 1147238
50 piece
Downloads

Download

Download

EU declaration of conformity MS41SN M8 A4 / 1147230 , 0.04MB , pdf
Download
REACH Declaration of conformity MS41SN M8 A4 / 1147230 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS41SN M8 A4 / 1147230 , 0.12MB , pdf
Download

MS41SN M8 A4 / 1147230
