Slide nut A4 35 | 17 | 10 | M8

morepic-1

morepic-2

Slide nut A4

Item no. 1147130 | EAN 4012196489442

Item no. / Types

Length	35 mm

Width	17 mm

Height

Thread

Product description

Product description

Slide nut for use with MS4022 profile rail.

Technical data

Technical data

Dimension	M8
Dimension B	17 mm
Dimension H	10 mm
Dimension L	30 mm
Height	10 mm
Length	35 mm

Material	Stainless steel
Surface	Bright, treated
Thread	M8
Thread metric	8
Width	17 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS40SN M6 A4	35 mm	17 mm	10 mm	M6	1147126	piece	50 piece
MS40SN M8 A4	35 mm	17 mm	10 mm	M8	1147130	piece	50 piece
MS40SN M10 A4	35 mm	17 mm	10 mm	M10	1147134	piece	50 piece
MS40SN M12 A4	35 mm	17 mm	11.5 mm	M12	1147138	piece	50 piece

Downloads

Data sheet MS40SN M8 A4 / 1147130 , 0.18MB , pdf

Brochure Rail systems , 2.10MB , pdf

Product graphic MS40SN M8 A4 / 1147130, 33.41 kB, jpg

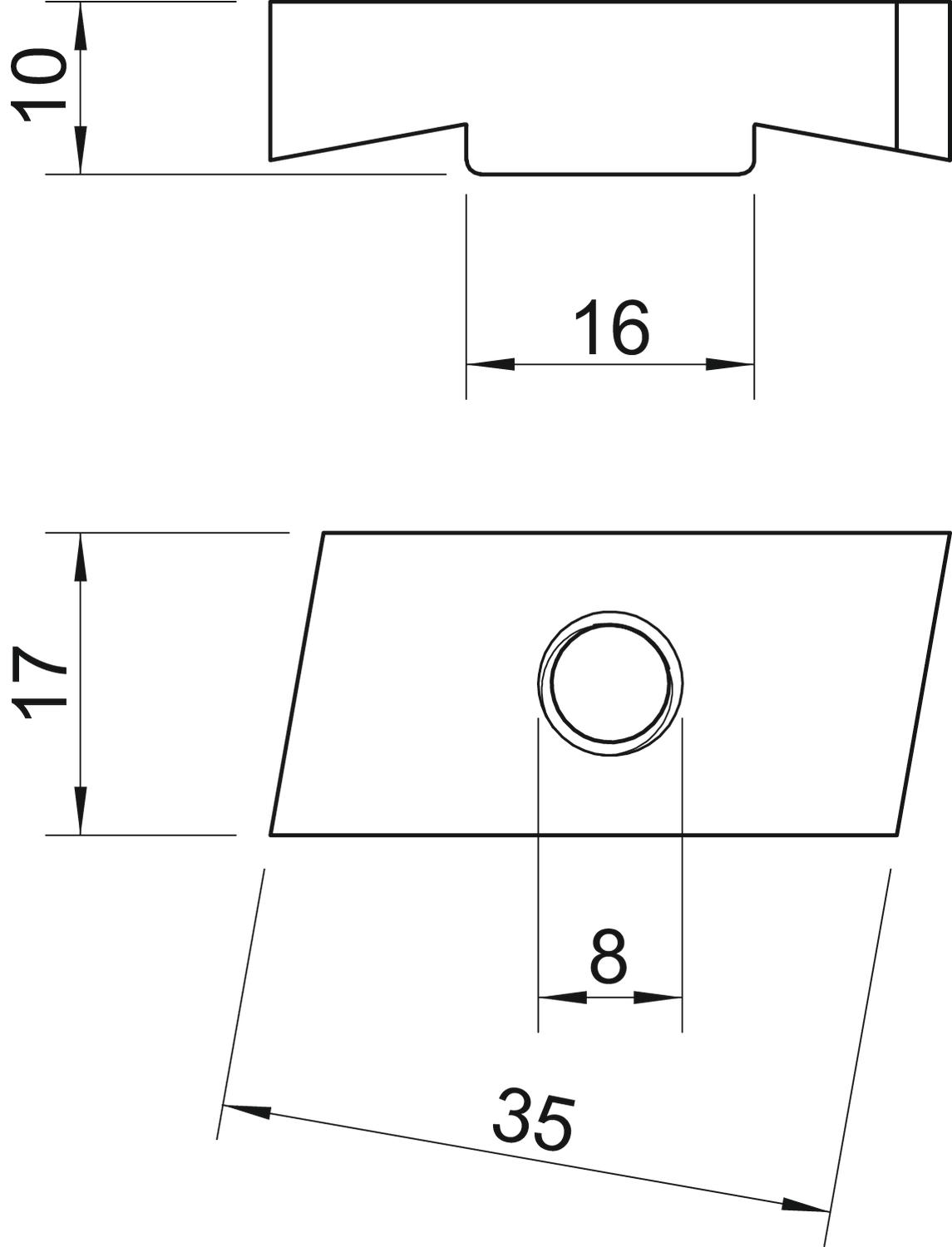

Scale drawing MS40SN M8 A4 / 1147130, 53.07 kB, jpg

MS40SN M8 A4 / 1147130

1147130_KSTP1.stp, 25.51 kB
