Slide nut A4 26 | 16.5 | 4 | M6
morepic-1 morepic-2

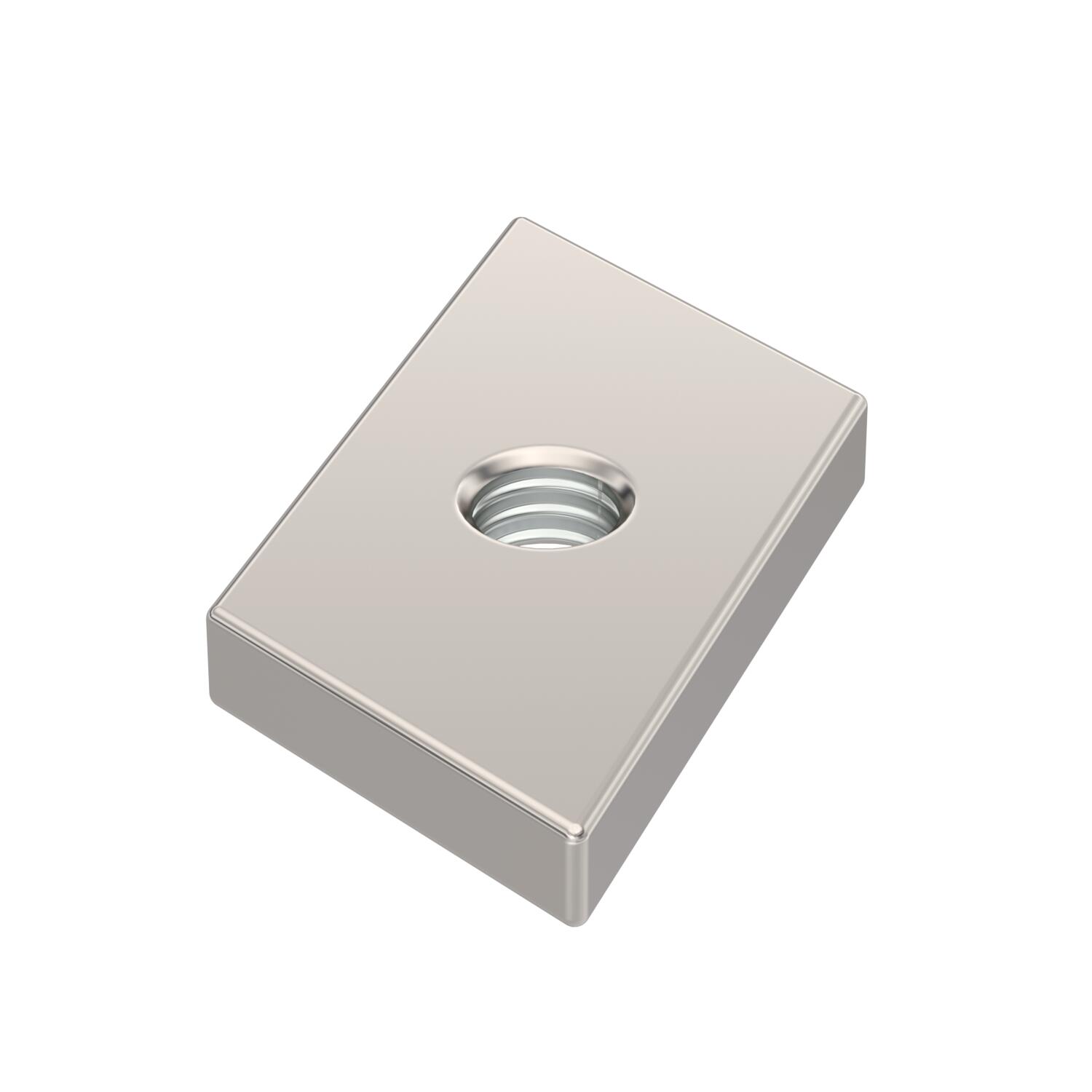

Slide nut A4

Item no. 1147076 | EAN 4012196488780

26 mm
16.5 mm
Product description
Product description
Slide nut for use with CM3015, CM3518 and AM3518 profile rails.


Slide nut for use with C30 profile rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,069 kg CO₂e / 1 Piece

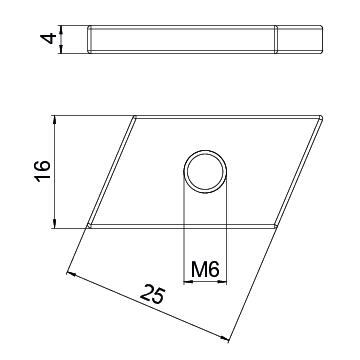

Dimension M6
Dimension B 16 mm
Dimension H 4 mm
Dimension L 26 mm
Height 4 mm
Length 26 mm
Material Stainless steel
Surface Bright, treated
Thread M6
Thread metric 6
Width 16,5 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMSN M6 A4 26 mm 16.5 mm 4 mm M6 1147076
100 piece
ACMSN M8 A4 26 mm 16.5 mm 5 mm M8 1147080
100 piece
ACMSN M10 A4 26 mm 16.5 mm 6 mm M10 1147084
100 piece
Downloads

Download

Download

REACH Declaration of conformity ACMSN M6 A4 / 1147076 , 0.12MB , pdf
Download
RoHS Declaration of conformity ACMSN M6 A4 / 1147076 , 0.12MB , pdf
Download

ACMSN M6 A4 / 1147076
