Side holder for cable gland 20 | Steel | Strip galvanized

morepic-1

morepic-2

Side holder for cable gland

Item no. 6015425 | EAN 4012196649990

Item no. / Types

Hole diameter

Material	Steel

Surface	Strip galvanized

Product description

Product description

Conduit take-off bracket with punched hole for accepting cable glands.

Technical data

Technical data

Dimension	53 x 97
Hole diameter	20 mm
Maintain electrical functions	no

Material	Steel
Rustproof steel, pickled	no
Surface	Strip galvanized

All types

All types

Types	Hole diameter	Material	Surface	Item no.	Quantity	SSU
SH KAB 20 FS	20 mm	Steel	Strip galvanized	6015425	piece	10 piece
SH KAB 25 FS	25 mm	Steel	Strip galvanized	6015433	piece	10 piece

Downloads

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

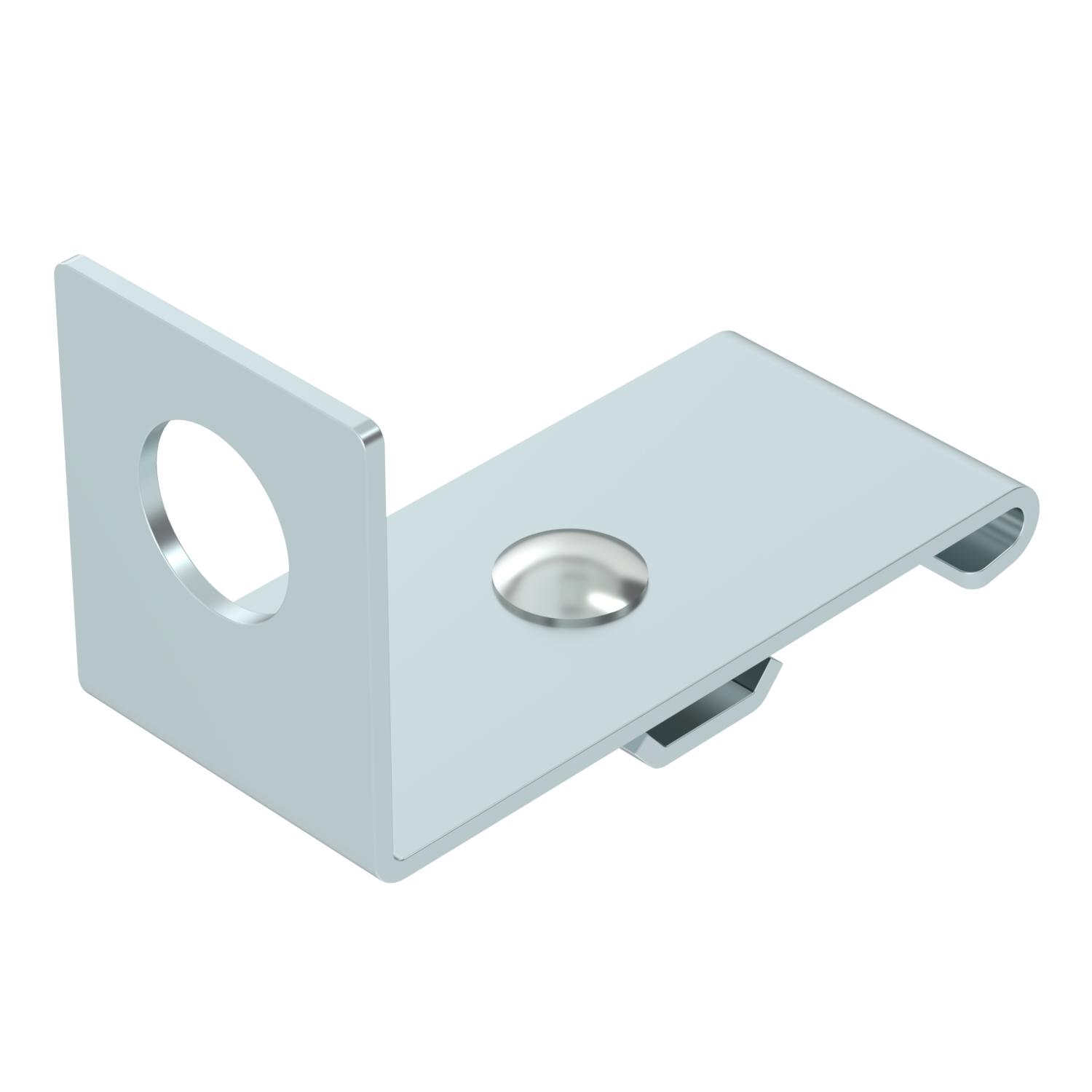

Product graphic SH KAB 20 FS / 6015425, 35.82 kB, jpg

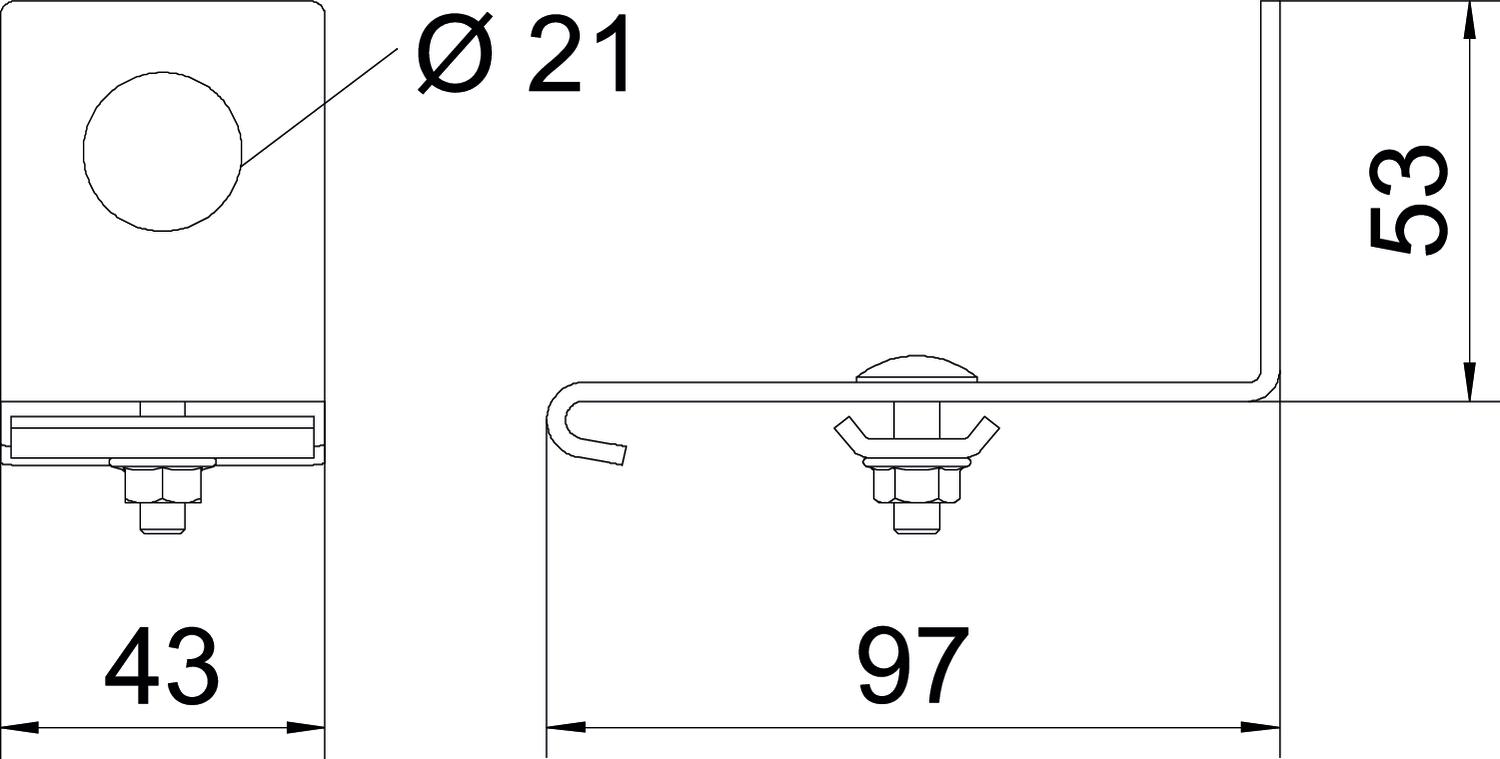

Scale drawing SH KAB 20 FS / 6015425, 46.58 kB, jpg

SH KAB 20 FS / 6015425

6015425_KSTP1.STP, 174.14 kB

Seitenhalter - SH KAB 20 FS.rfa, 372.00 kB
