Setting tool for nail anchor M12

morepic-1

morepic-2

Setting tool for nail anchor

Item no. 3498314 | EAN 4012196571505

Item no. / Types	3498314 / N-K SWZ SDS

Thread	M12

Product description

Product description

Setting tool for nail anchor, type N-K, with SDS plus seat.

Technical data

Technical data

Colour	zinc
Length	100 mm
Material	Steel
Pin dimension	12 mm

Surface	Electrogalvanized
Thread	M12
With hand protection	no

All types

All types

Types	Thread	Item no.	Quantity	SSU
N-K SWZ SDS	M12	3498314	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

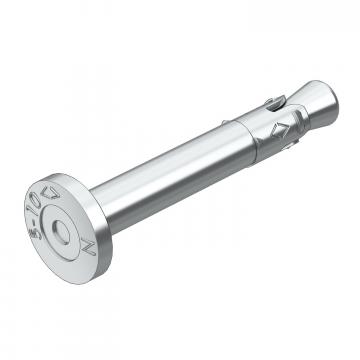

Nail anchor N-K with nail head	N-K 6-5-10/44	3498390	piece	100 piece

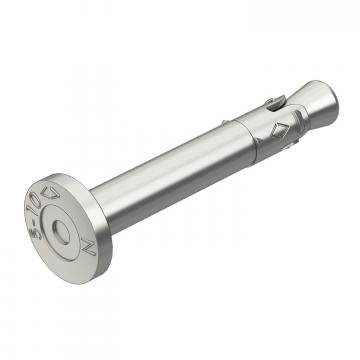

Nail anchor N-K with nail head, A5	N-K 6-5/44 HCR	3498392	piece	50 piece
Nail anchor N-K with nail head, V4A	N-K 6-5/44 A4	3498393	piece	50 piece

Downloads

Data sheet N-K SWZ SDS / 3498314 , 0.14MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

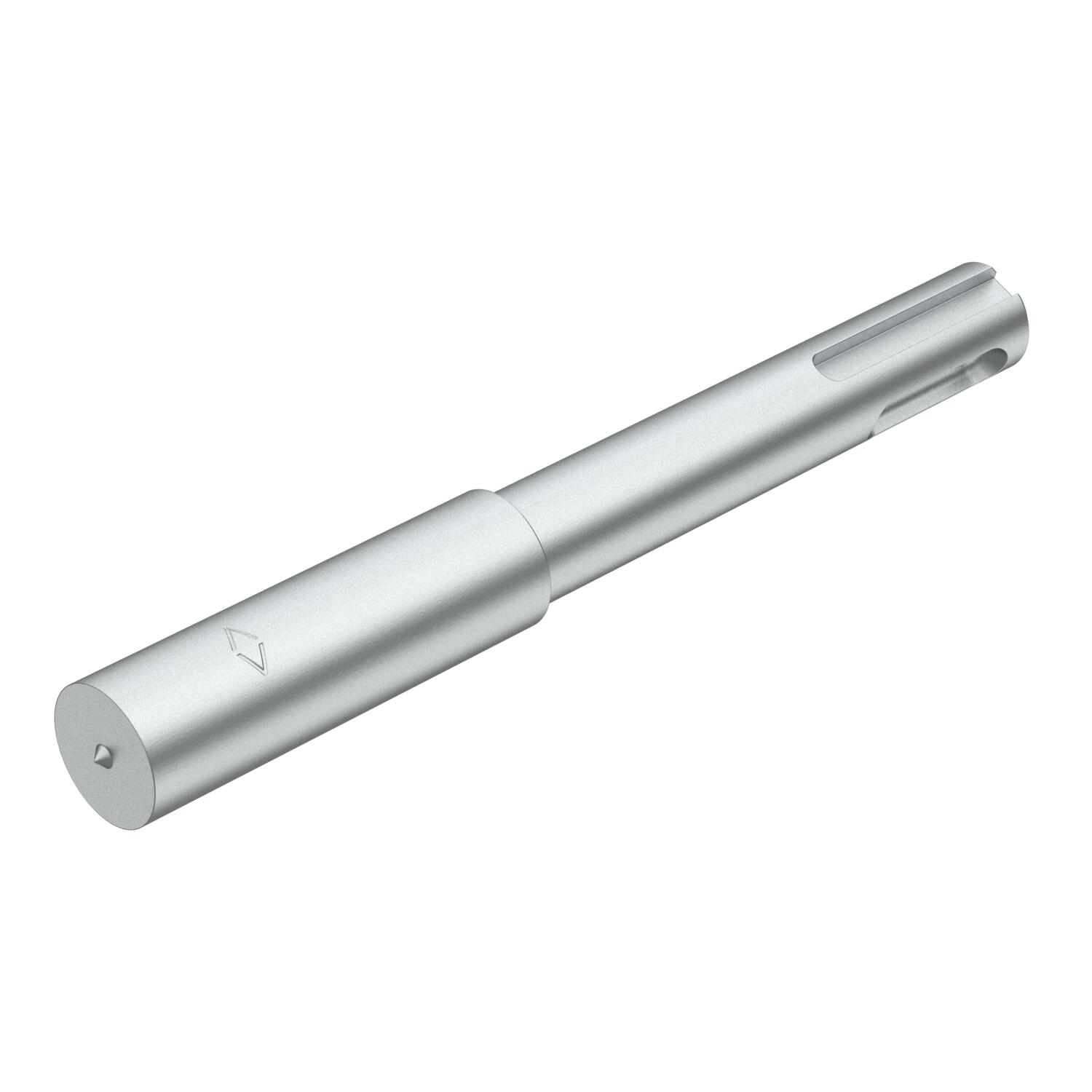

Product graphic N-K SWZ SDS / 3498314, 53.67 kB, jpg

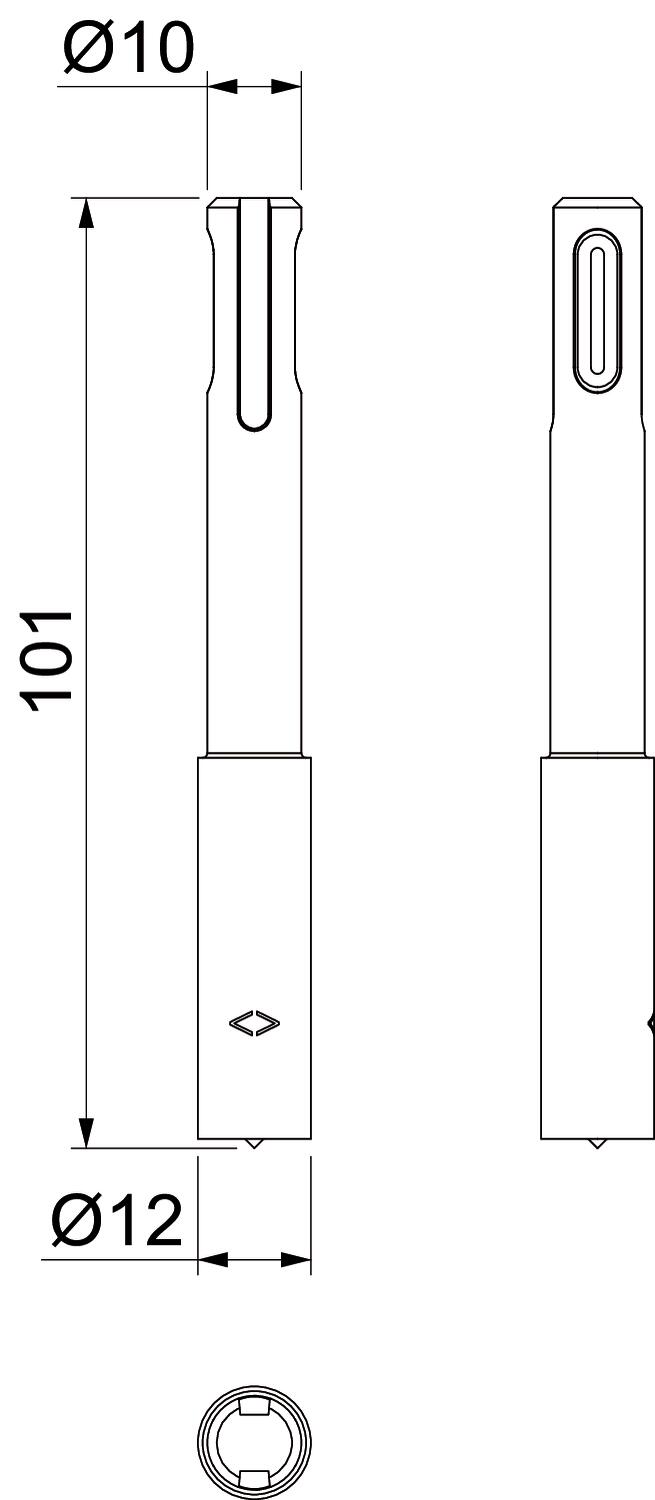

Scale drawing N-K SWZ SDS / 3498314, 37.56 kB, jpg

N-K SWZ SDS / 3498314
