- Product description
-

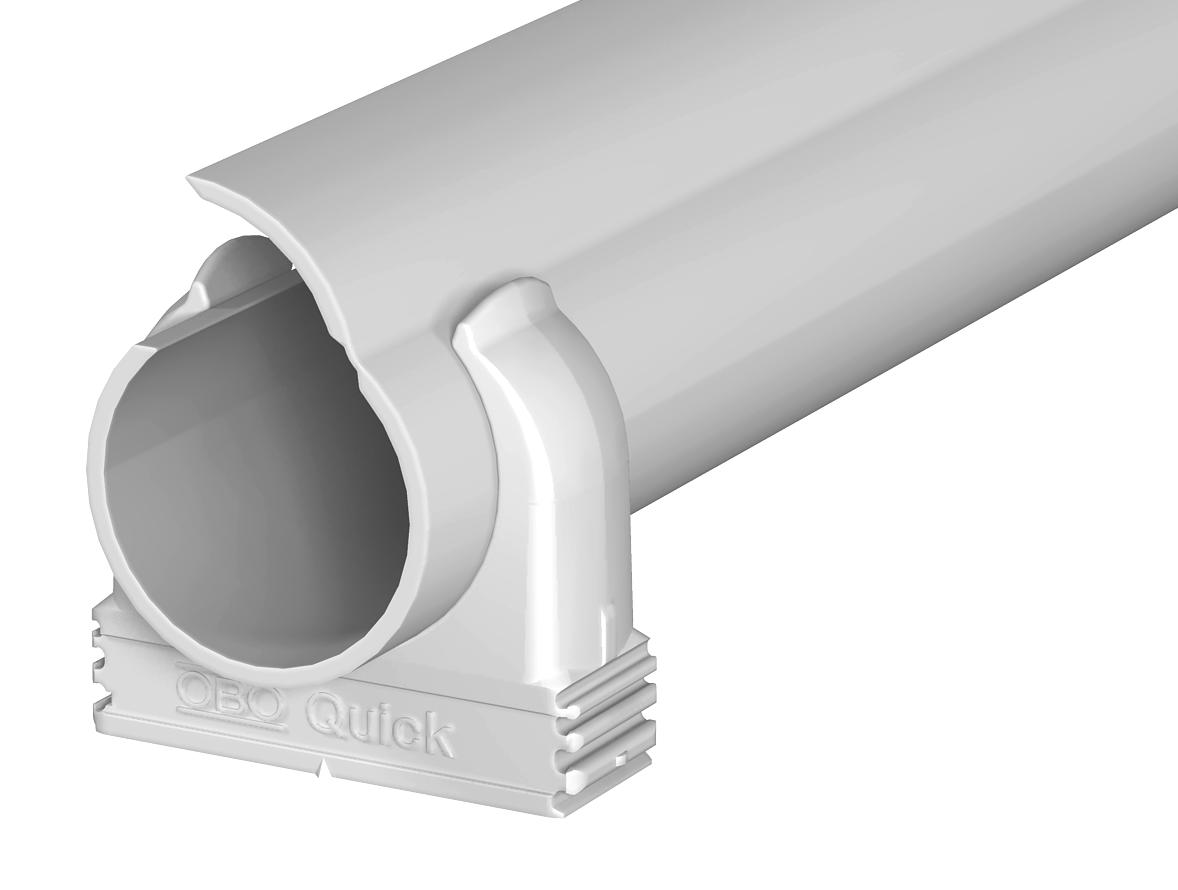

Product descriptionSet consisting of Quick pipe electrical installation pipes and Quick clip surface-mounted clips. For surface-mounted routing of cables in interiors and protected outdoor areas. Universal fastening on wall and ceiling. Comprises 20 m of pipe each of 2 metres in length and 60 Quick clips. Can be used in a temperature range of –25 to +60 °C.
- Technical data
-
Technical data

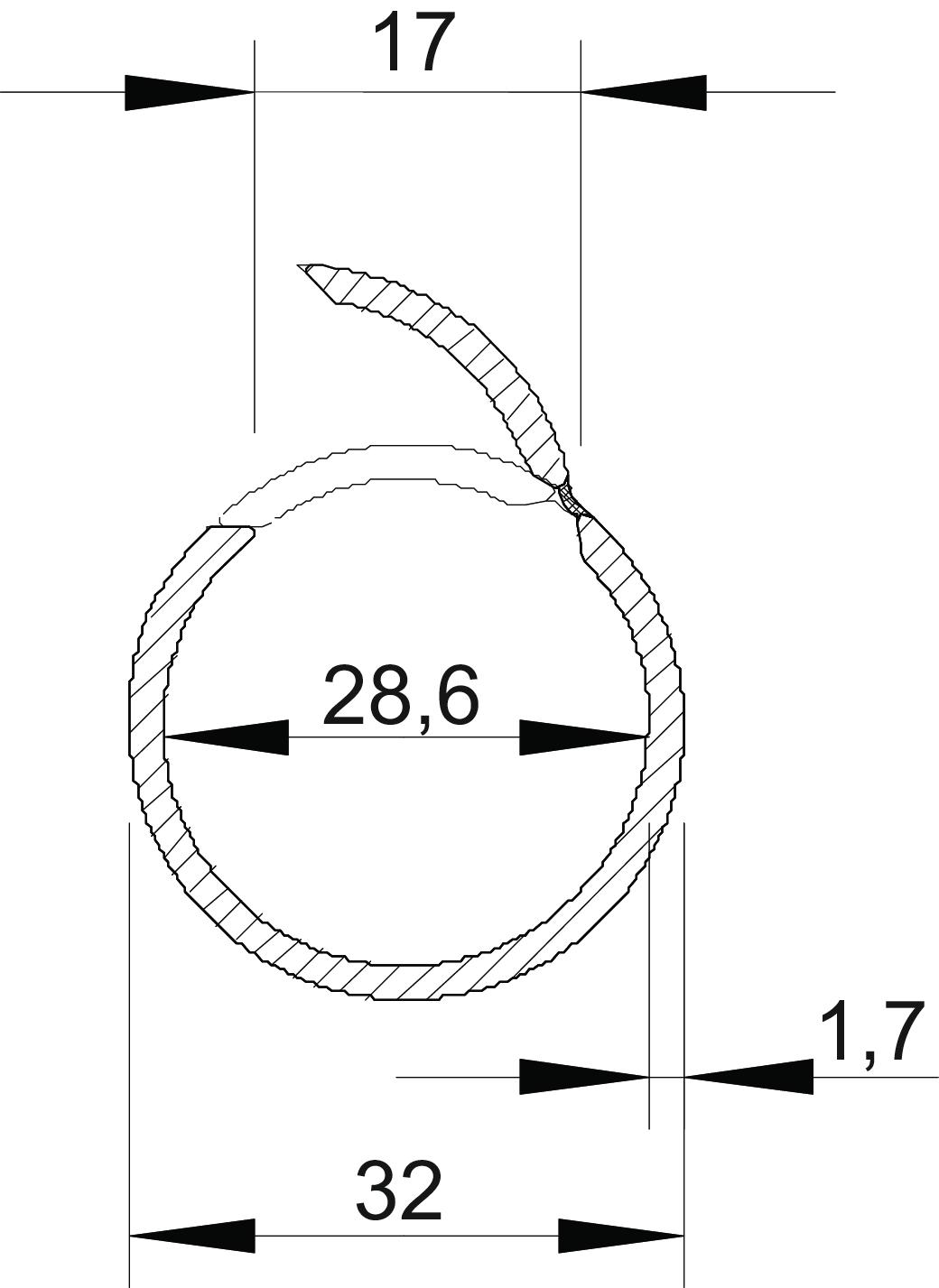

Colour Light grey; RAL 7035 Concealed no Concrete installation yes Dimension M32 Dimension C 17 mm Dimension D 32 mm Dimension m (mm) 28,6 Dimension t 1,7 mm Flame-resistant version no Halogen-free no Installation in the earth no Installation on wood yes Installation outdoors no Machines and system installation yes Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Size M32 Surface-mounted yes Underfloor installation (screed) no With sleeve no - All types
- Downloads
-
Data sheet 2954 M32 LGR / 2154544 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfREACH Declaration of conformity 2954 M32 LGR / 2154544 , 0.12MB , pdfRoHS Declaration of conformity 2954 M32 LGR / 2154544 , 0.12MB , pdf
