- Product description
-
Product description

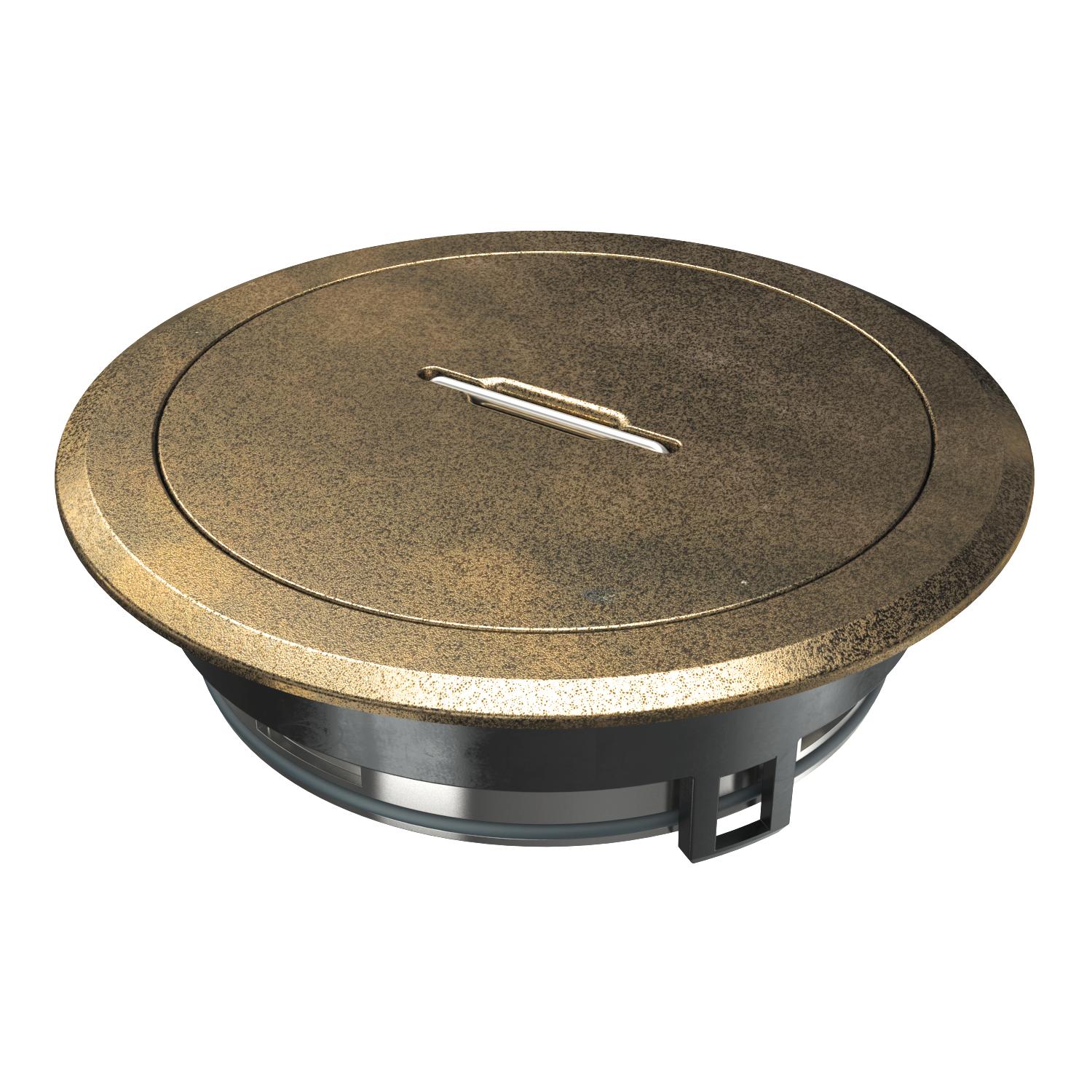

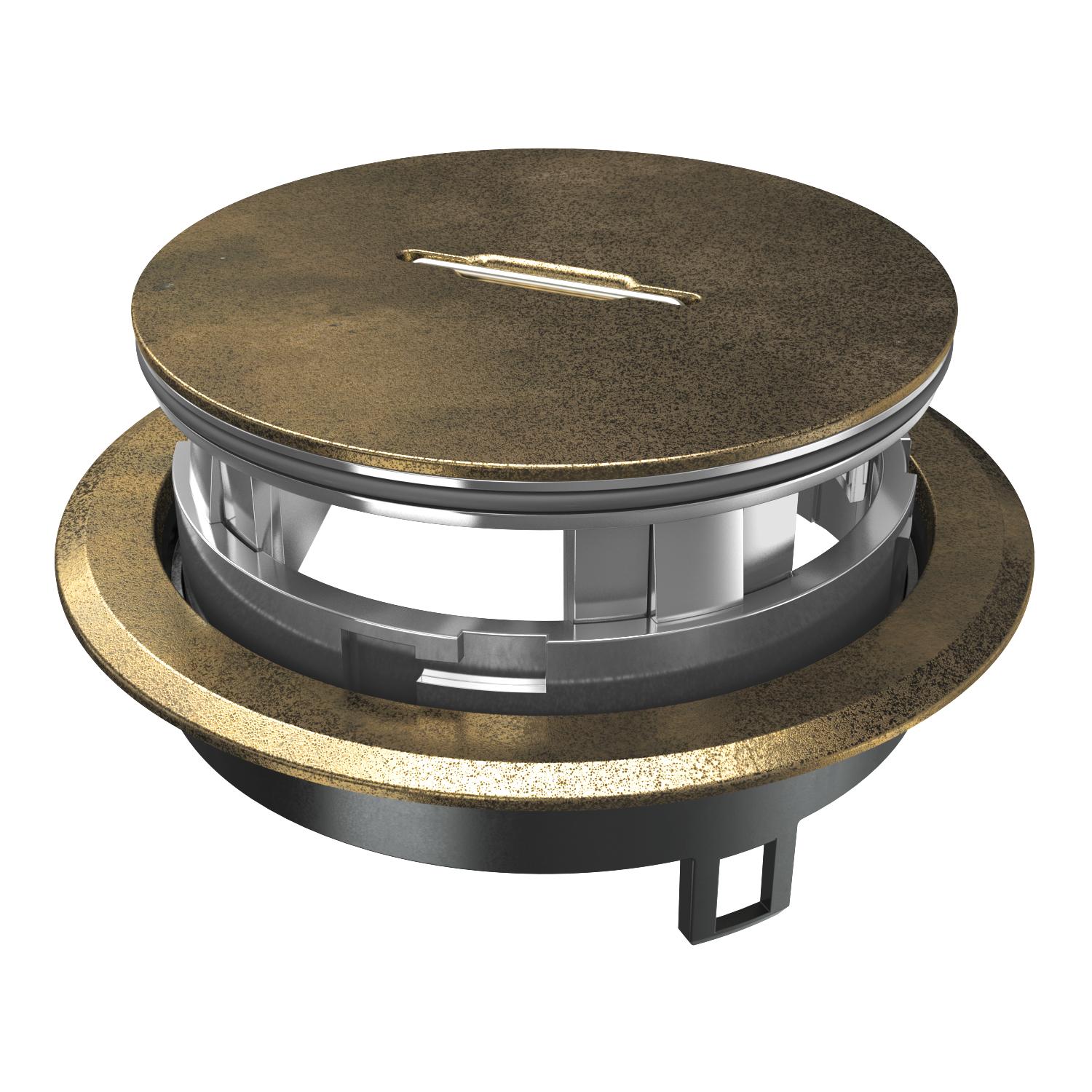

Service outlet with tube body and handle clamp for GES R2 floor socket for direct installation in the MT R2 installation socket for indoor use.
The tube body fulfils the requirements of EN 50085-2-2 for wet-cleaned floors, also when in use.
-
- Technical data
-
Technical data

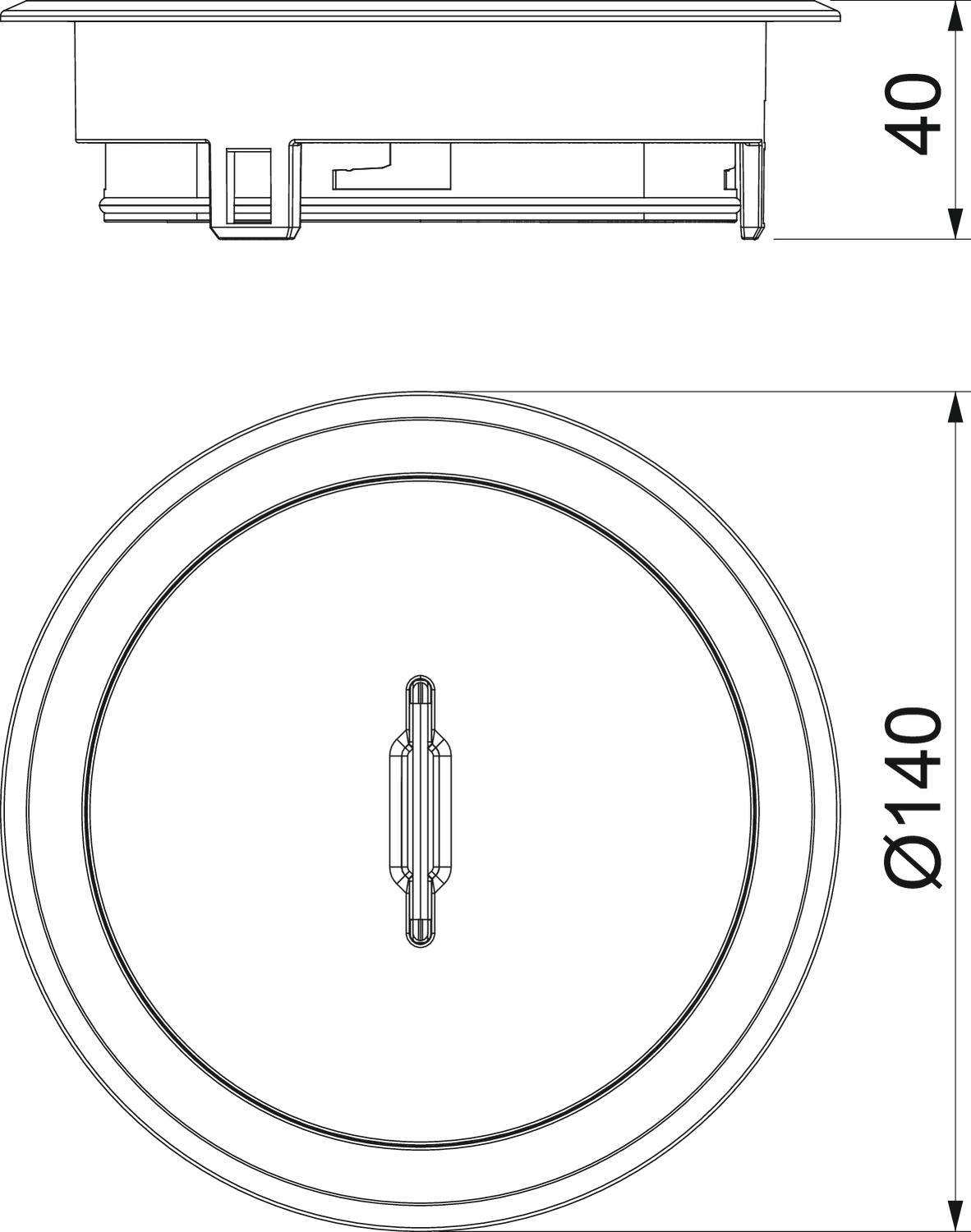

Approvals VDE Cable outlet version Lowerable tube body External diameter 140 mm Floor care Wet Floor covering protection frame yes Material Die-cast zinc Opening mechanism Handle Protection rating (IP) when unused IP66 Protection rating (IP) when used IP20 Protection rating IK code IK10 Standard EN 50085-2-2 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for underfloor ducts no Suitable for wet care yes Surface Brass-coated Version for Round Vertical load, large area to 15,000 N Vertical load, small area to 3,000 N With floor covering recess no - All types
- Downloads
-
Data sheet GES R2T CuZn / 7408862 , 0.28MB , pdfBrochure GES R2 floor sockets , 2.10MB , pdfDeclaration of conformity GES R2T CuZn / 7408862 , 0.17MB , pdfDeclaration of conformity GES R2T CuZn / 7408862 , 0.04MB , pdfUK Declaration of Conformity GES R2T CuZn / 7408862 , 0.14MB , pdfLabel approval VDE symbol approval, GES R2 , 0.19MB , pdfMounting instructions Bodensteckdose GES R2 , 1.06MB , pdfMounting instructions Long instructions, floor socket GES R2 , 0.05MB , pdf
