Serrated washer DIN 6798 G 18 | 10.5 | 2.7 | M10

morepic-1

morepic-2

Serrated washer DIN 6798 G

Item no. 3404102 | EAN 4012195301752

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Serrated washer to DIN 6798, shape A.

Technical data

Technical data

Diameter	18 mm
Dimension	M10
External diameter	18 mm
Inner diameter	0,41 mm
Lock washer version	Open external gearing

Material	Steel
Plate thickness	0,11 in
Surface	Electrogalvanized
Thickness	2,7 mm
Thread	M10

Dimensions

Dimension d	10,5 mm
Dimension d max.	18 mm
Dimension d min.	18 mm

Dimension h	2,7 mm
Height	2,7 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
SWS M5 G	10 mm	5.3 mm	1.8 mm	M5	3404056	piece	100 piece
SWS M6 G	11 mm	6.4 mm	2.1 mm	M6	3404064	piece	100 piece
SWS M8 G	15 mm	8.4 mm	2.4 mm	M8	3404080	piece	100 piece
SWS M10 G	18 mm	10.5 mm	2.7 mm	M10	3404102	piece	100 piece
SWS M12 G	20.5 mm	13 mm	3 mm	M12	3404129	piece	100 piece

Downloads

Data sheet SWS M10 G / 3404102 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity SWS M10 G / 3404102 , 0.06MB , pdf

Download

REACH Declaration of conformity SWS M10 G / 3404102 , 0.12MB , pdf

Download

RoHS Declaration of conformity SWS M10 G / 3404102 , 0.12MB , pdf

Download

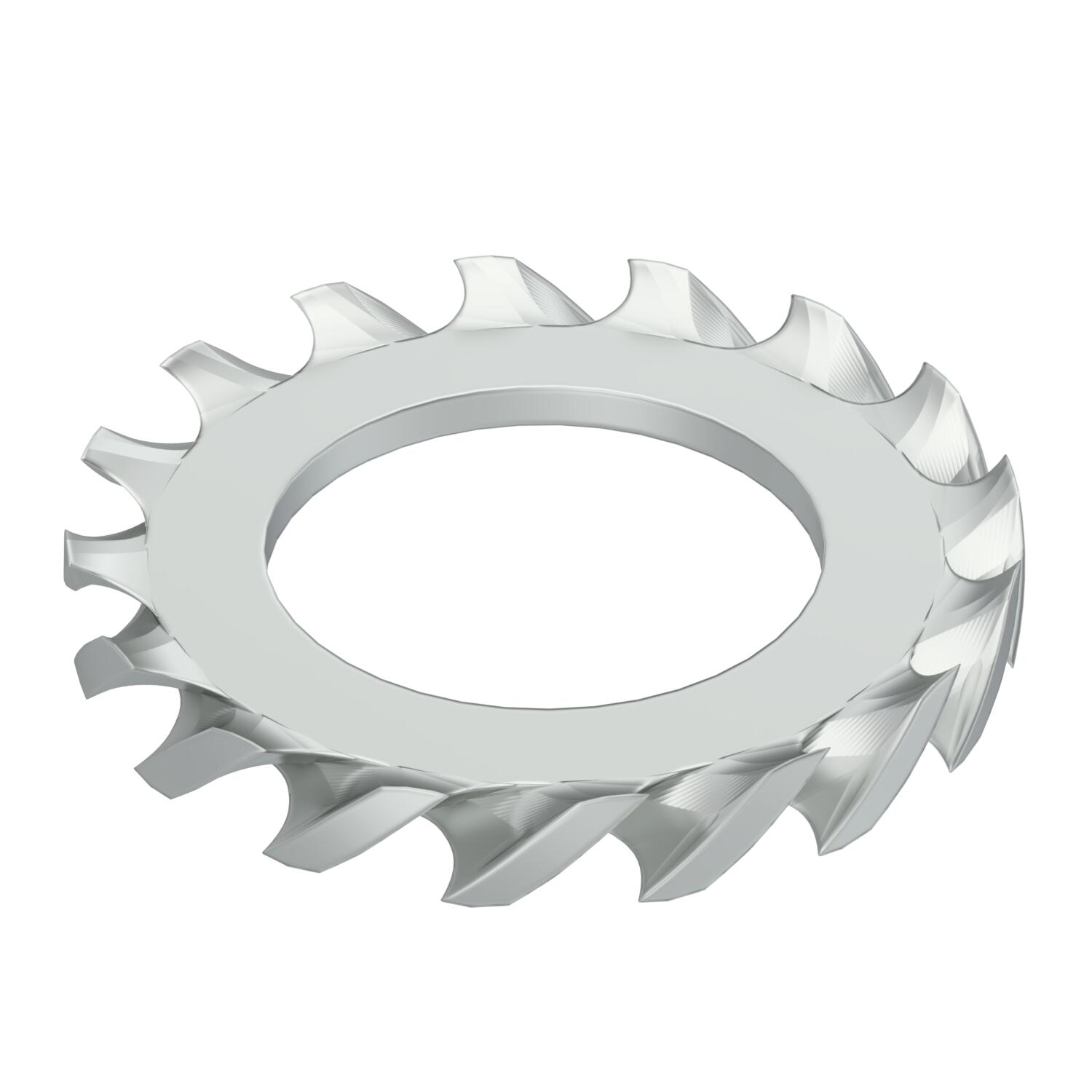

Product graphic SWS M10 G / 3404102, 15.31 kB, jpg

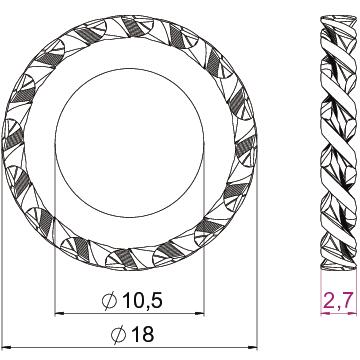

Scale drawing SWS M10 G / 3404102, 82.16 kB, jpg
