Serrated washer DIN 6798 G 11 | 6.4 | 2.1 | M6

morepic-1

morepic-2

Serrated washer DIN 6798 G

Item no. 3404064 | EAN 4012195301639

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Serrated washer to DIN 6798, shape A.

Technical data

Technical data

Diameter	11 mm
Dimension	M6
Dimension d	6,4 mm
Dimension d max.	11 mm
Dimension d min.	11 mm
Dimension h	2,1 mm
External diameter	11 mm
Height	2,1 mm

Inner diameter	0,25 mm
Lock washer version	Open external gearing
Material	Steel
Plate thickness	0,08 in
Surface	Electrogalvanized
Thickness	2,1 mm
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
SWS M5 G	10 mm	5.3 mm	1.8 mm	M5	3404056	piece	100 piece
SWS M6 G	11 mm	6.4 mm	2.1 mm	M6	3404064	piece	100 piece
SWS M8 G	15 mm	8.4 mm	2.4 mm	M8	3404080	piece	100 piece
SWS M10 G	18 mm	10.5 mm	2.7 mm	M10	3404102	piece	100 piece
SWS M12 G	20.5 mm	13 mm	3 mm	M12	3404129	piece	100 piece

Downloads

Data sheet SWS M6 G / 3404064 , 0.11MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity SWS M6 G / 3404064 , 0.06MB , pdf

Download

REACH Declaration of conformity SWS M6 G / 3404064 , 0.12MB , pdf

Download

RoHS Declaration of conformity SWS M6 G / 3404064 , 0.12MB , pdf

Download

Product graphic SWS M6 G / 3404064, 9.90 kB, jpg

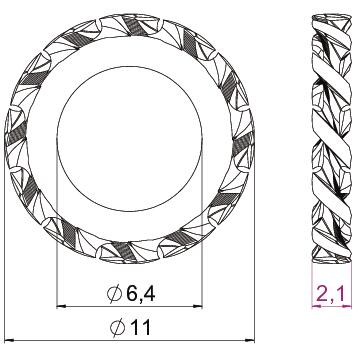

Scale drawing SWS M6 G / 3404064, 80.73 kB, jpg

SWS M6 G / 3404064
