- Product description
-
Product description
Serrated washer to DIN 6798, shape A.
- Technical data
-
Technical data

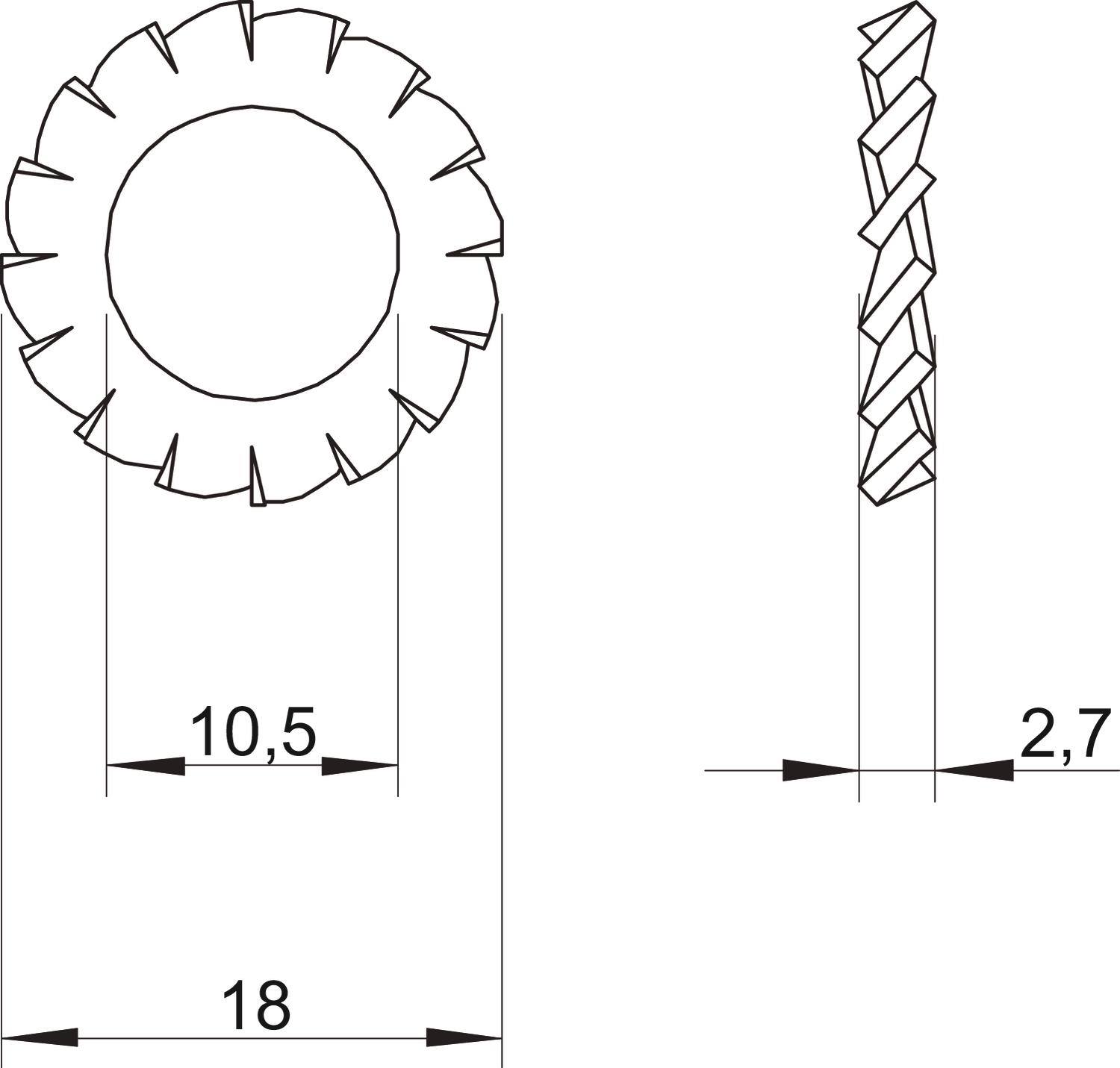

Diameter 18 mm Dimension M10 Dimension d 10,5 mm Dimension d max. 18 mm Dimension d min. 18 mm Dimension h 2,7 mm External diameter 18 mm Height 2,7 mm Inner diameter 10,5 mm Lock washer version Open external gearing Material Stainless steel Surface Bright, treated Thickness 2,7 mm Thread M10 - All types
- Downloads
-
Data sheet SWS M10 A4 / 3404381 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdf
