Serrated washer DIN 6798 A4

Item no. 3404377 | EAN 4012196095513

Product description

Product description

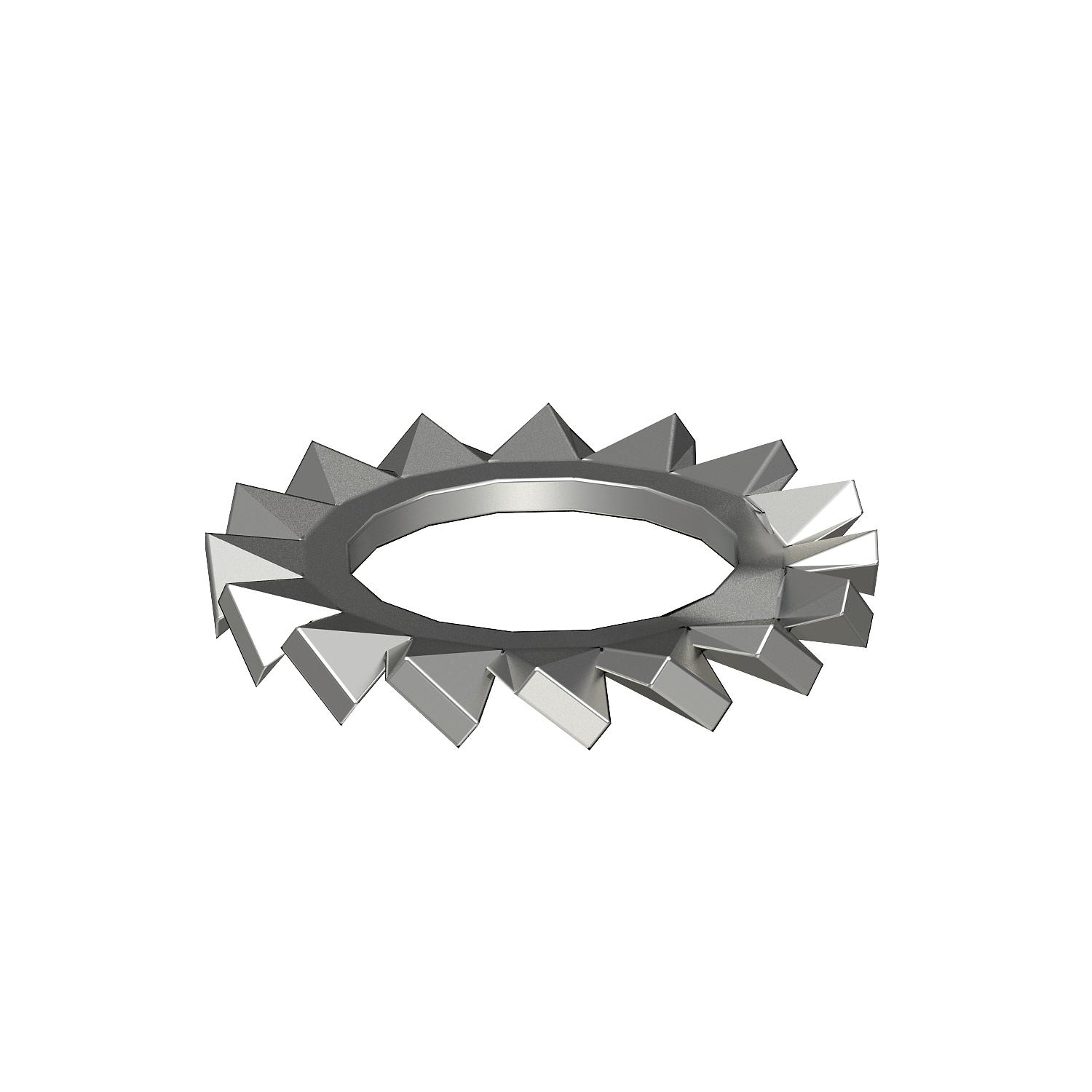

Serrated washer to DIN 6798, shape A.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

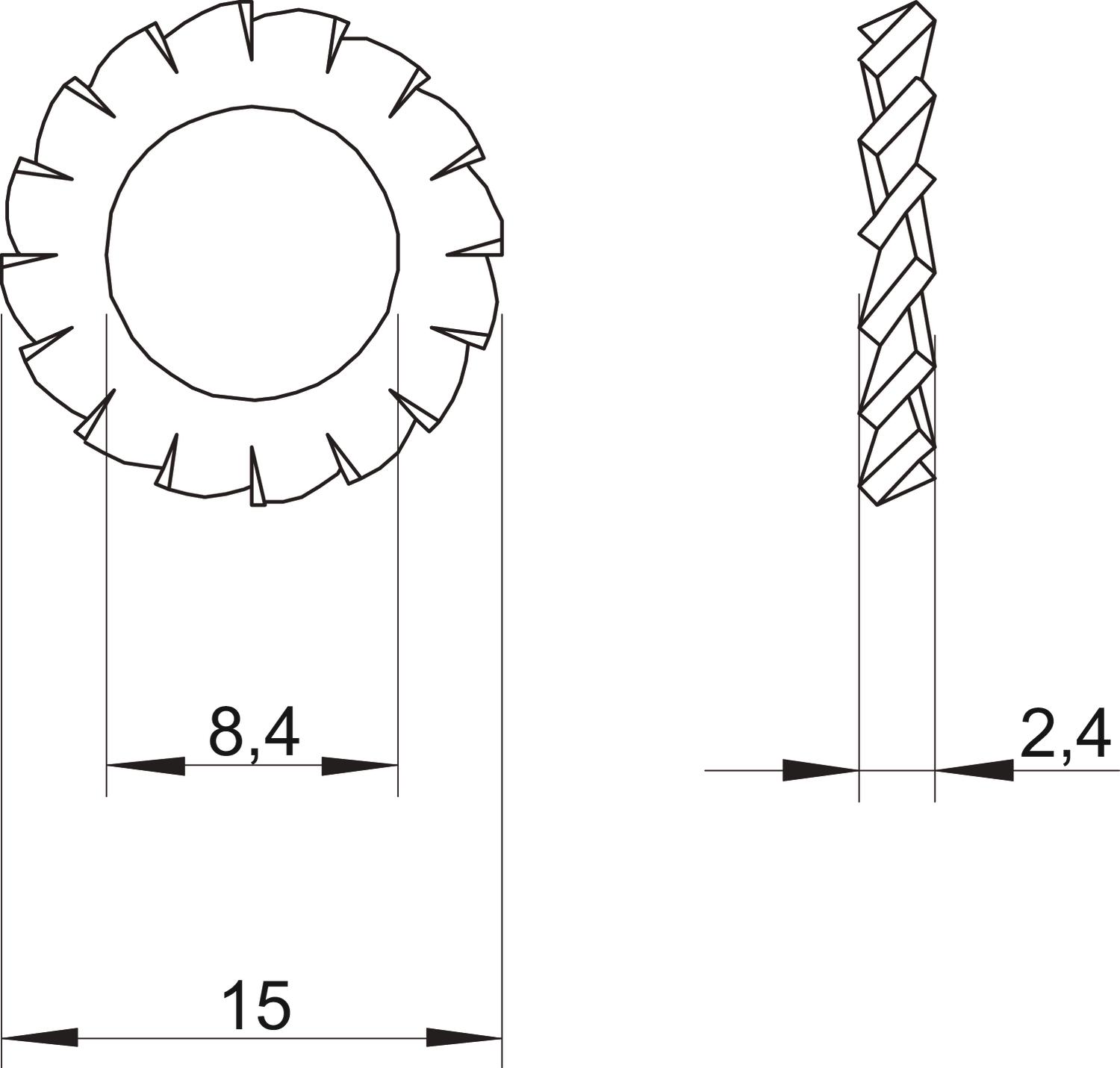

Diameter 15 mm
Dimension M8
Dimension d 8,4 mm
Dimension d max. 15 mm
Dimension d min. 15 mm
Dimension h 2,4 mm
External diameter 15 mm
Height 2,4 mm
Inner diameter 8,4 mm
Lock washer version Open external gearing
Material Stainless steel
Surface Bright, treated
Thickness 2,4 mm
Thread M8
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
SWS M6 A4 11 mm 6.4 mm 2.1 mm M6 3404372
100 piece
SWS M8 A4 15 mm 8.4 mm 2.4 mm M8 3404377
100 piece
SWS M10 A4 18 mm 10.5 mm 2.7 mm M10 3404381
100 piece
SWS M12 A4 20.5 mm 13 mm 3 mm M12 3404385
100 piece
