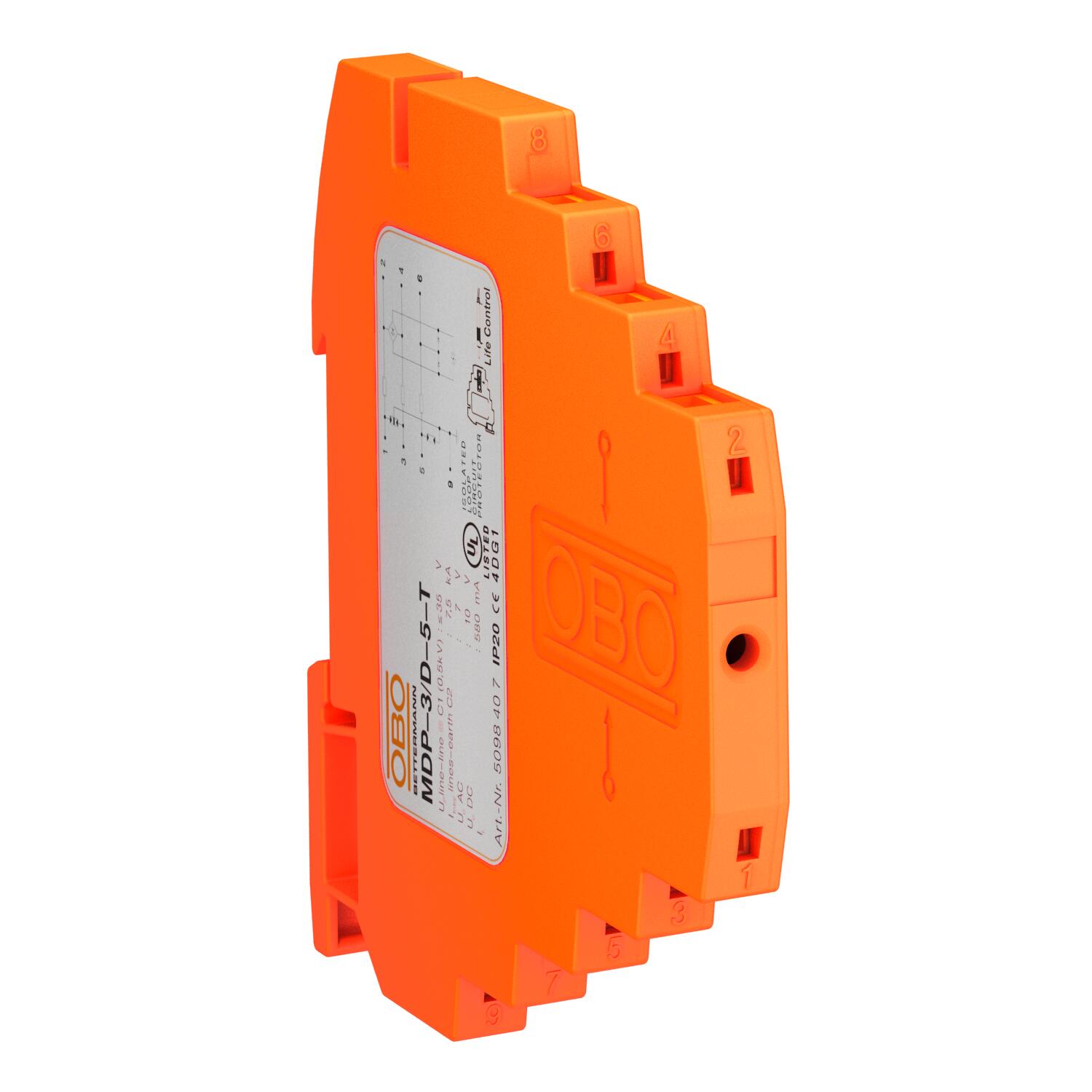

Series protection device, 3-pole, 5 V version 3 | 7 | 10 | Terminal

Series protection device, 3-pole, 5 V version

Item no. 5098407 | EAN 4012195406846

Item no. / Types

Number of poles

Maximum continuous voltage AC	7

Maximum continuous voltage DC	10

Plug-in system	Terminal

Product description

Product description

Lightning barrier with test function; 5 V version

• Nominal load current 0.58 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High frequency range of 0–100 MHz
• UL-listed (4DG1)

Application: Universal use on 35 mm DIN profile rail in any standard distribution housing.

Technical data

Technical data

Approvals	UL
Arrestor monitoring	no
Capacity (wire-wire)	< 40 pF
Connection cross-section, flexible, max.	2,5 mm²
Connection cross-section, flexible, min.	0,14 mm²
Connection cross-section, multi-wire, max.	1,5 mm²
Connection cross-section, multi-wire, min.	0,14 mm²
Connection cross-section, rigid, max.	2,5 mm²
Connection cross-section, rigid, min.	0,14 mm²
Cut-off frequency	100 MHz
Dimension	5V
Earthing via:	DIN rail
Explosion-tested version	no
Impulse durability wire-earth	C2: 5 kV / 2,5 kA (8/20µs)
Impulse durability wire-wire	C1: 0,5 kV / 0,25 kA (8/20µs)
Insertion loss	≤3 dB
Insulation resistance	>10 MΩ
Kategorie	Type 1+2+3 / D1+C2+C1
Lightning protection zone LPZ	0→3
Maximum continuous voltage AC	7
Maximum continuous voltage DC	10

Nominal load current AC	0,4
Nominal load current DC	0,58 A
Nominal voltage	5 V
Number of poles	3
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	Terminal
Protection level @ C1	<50 V
Protection level wire-earth	<800 V
Protection level wire-wire	<35 V
Protection rating	IP20
Screening	Direct
Series resistance per wire	2,35 Ω ± 5 %
Shielding connection available	yes
Signalling on device	Readable
SPD to IEC 61643-21	Class I+II+III / D1+C2+C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (10/350)	D1: 1,5
Total discharge current (8/20)	7,5 kA
