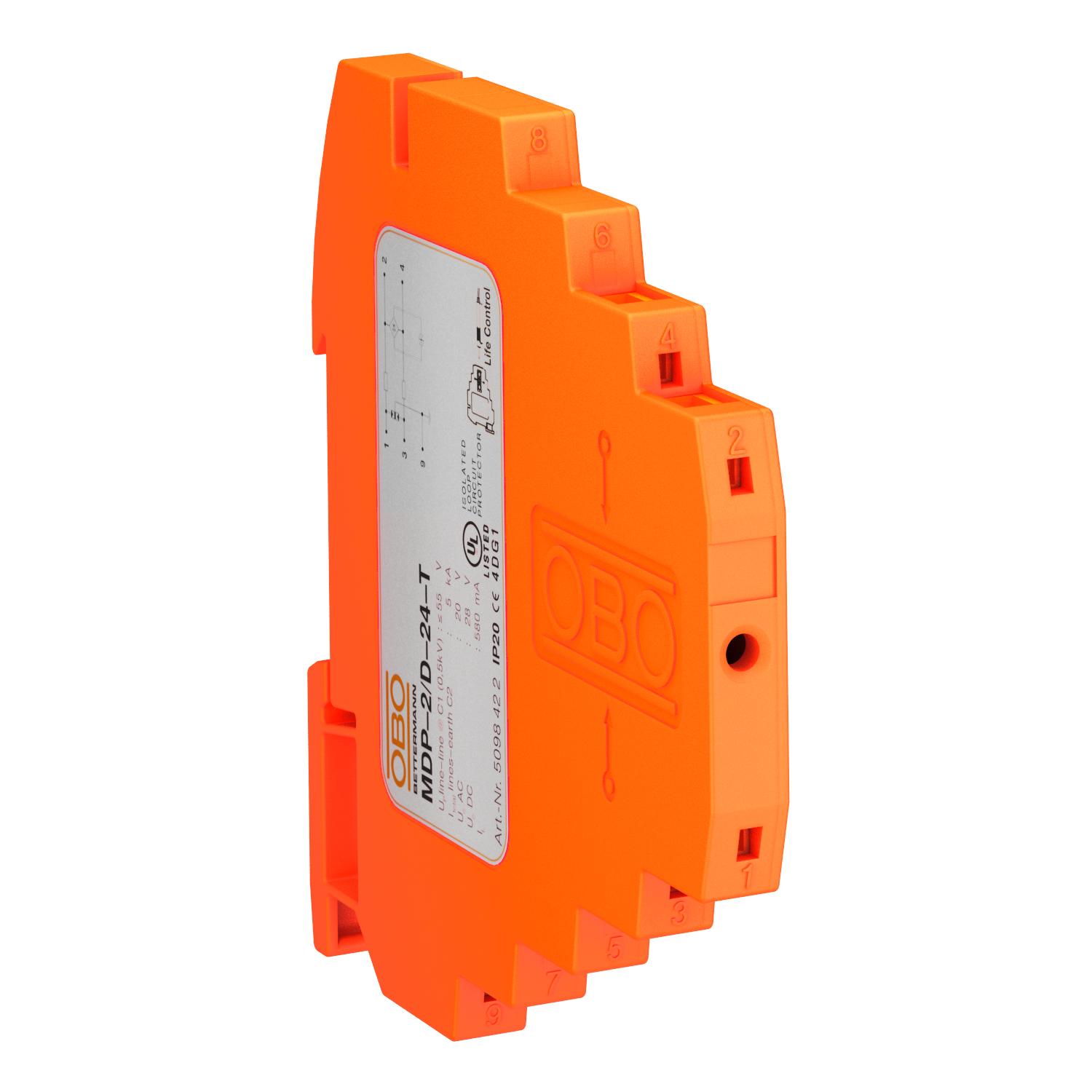

Series protection device, 2-pole, 24 V version

Item no. 5098422 | EAN 4012195406860

20
28
Terminal
Product description

Product description

Lightning barrier with test function; 24 V version

• Rated load current 0.58 A
• Protection device for multi-wire systems
• Direct shield earthing and screwless connection terminals
• Space-saving width of just 8.7 mm
• Protection circuit testable with Life Control
• High bandwidth to 100 MHz
• UL-listed (4DG1)

Application: Universal use on 35 mm DIN profile rail in any standard distribution housing.
  • Underwriters Laboratories Inc., USA
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Measuring, controlling and regulating systems
  • LifeControl
  • Transition from LPZ 0 to LPZ 3
  • Installation electrotechnical expertise
Technical data

Technical data

Approvals UL
Arrestor monitoring no
Capacity (wire-earth) <40 pF
Capacity (wire-wire) <40 pF
Connection cross-section, flexible, max. 2,5 mm²
Connection cross-section, flexible, min. 0,14 mm²
Connection cross-section, multi-wire, max. 1,5 mm²
Connection cross-section, multi-wire, min. 0,14 mm²
Connection cross-section, rigid, max. 2,5 mm²
Connection cross-section, rigid, min. 0,14 mm²
Cut-off frequency 100 MHz
Dimension 24V
Earthing via: DIN rail
Explosion-tested version no
Impulse durability wire-earth C2: 5 kV / 2,5 kA (8/20µs)
Impulse durability wire-wire C1: 0,5 kV / 0,25 kA (8/20µs)
Insertion loss ≤3 dB
Insulation resistance >100 MΩ
Kategorie Type 1+2+3 / D1+C2+C1
Lightning protection zone LPZ 0→3
Maximum continuous voltage AC 20
Maximum continuous voltage DC 28
Nominal load current AC 0,4
Nominal load current DC 0,58 A
Nominal voltage 24 V
Number of poles 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system Terminal
Protection level @ C1 <65 V
Protection level wire-earth <800 V
Protection level wire-wire <55 V
Protection rating IP20
Screening Direct
Series resistance per wire 2,35 Ω ± 5 %
Shielding connection available yes
Signalling on device Readable
SPD to IEC 61643-21 Class I+II+III / D1+C2+C1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) D1: 1
Total discharge current (8/20) 5 kA
All types

All types

Types Number of poles Maximum continuous voltage AC Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
MDP-2 D-24-T 2 20 28 Terminal 5098422
1 piece
MDP-3 D-24-T 3 20 28 Terminal 5098427
1 piece
MDP-4 D-24-T 4 20 28 Terminal 5098431
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Earthing strip Earthing strip VB-MDP 10-MD 5098470
1 piece
