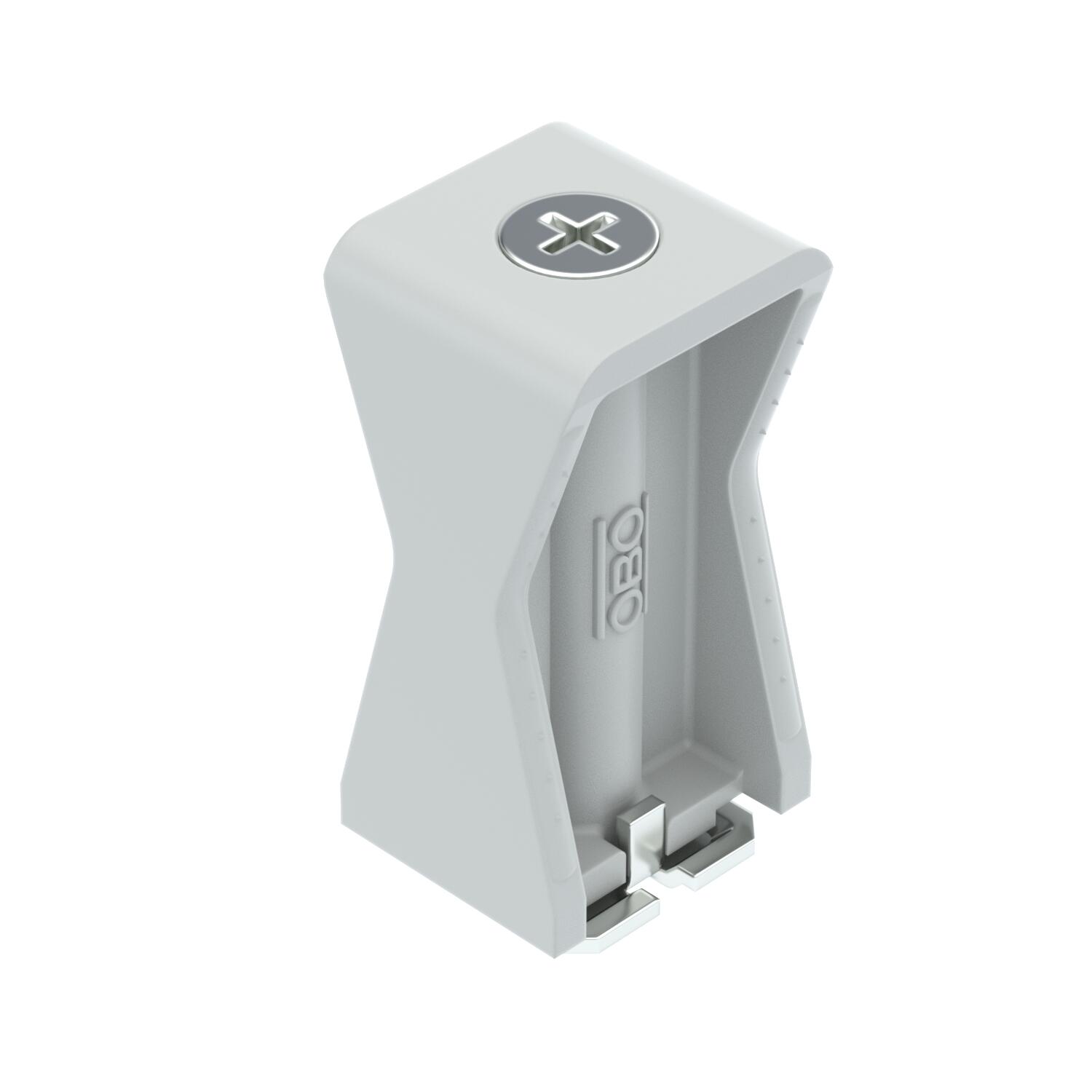

Series clip, light grey
Item no. 2254034 | EAN 4012195222194
- Product description
-
Product description
Also suitable for rails of 11 ÷ 12 mm slot width; polystyrene clip element, impact resistant, halogen-free, light grey RAL 7035; metal parts: electrogalvanised steel.
-
- Technical data
-
Technical data

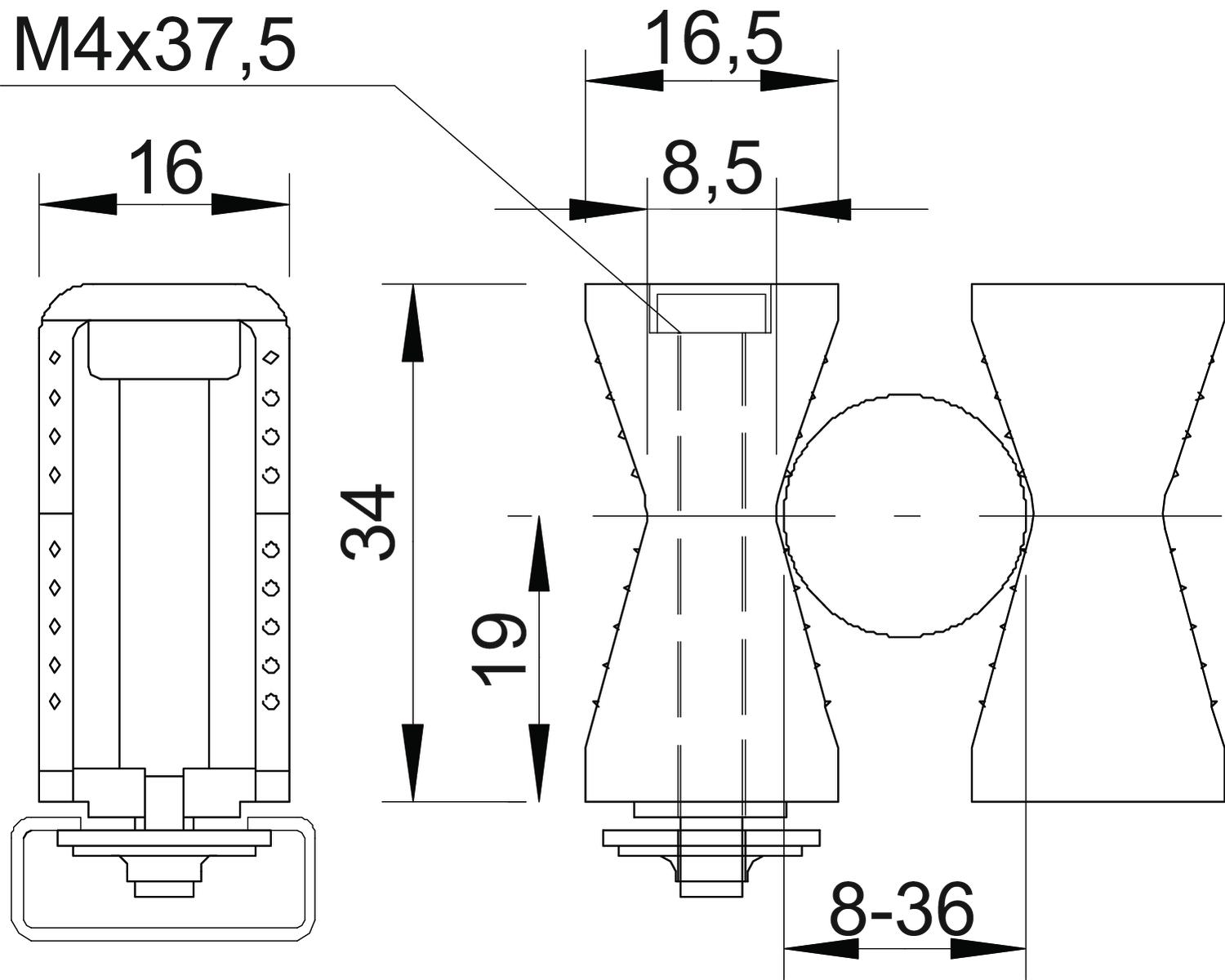

Bolt M4 x 40 Clamping range D, max. 36 mm Clamping range D, min. 8 mm Colour Light grey; RAL 7035 Dimension 8-36mm Dimension B 17 mm Dimension B1 7,5 mm Dimension H 34 mm Dimension H1 18 mm Distance to the wall no Fastening type Rail fastening for rail with slot width (with interval), max. 12 mm for rail with slot width (with interval), min. 11 mm Halogen-free yes Impact-resistant no Material Polystyrene Nominal diameter 36 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no - All types
- Downloads
-
Data sheet 2051 8-36 LGR / 2254034 , 0.22MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity 2051 8-36 LGR / 2254034 , 0.13MB , pdfREACH Declaration of conformity 2051 8-36 LGR / 2254034 , 0.12MB , pdfRoHS Declaration of conformity 2051 8-36 LGR / 2254034 , 0.12MB , pdf
