Series clip, light grey 24 | 72 | M8 x 80 | Light grey; RAL 7035
morepic-1 morepic-2

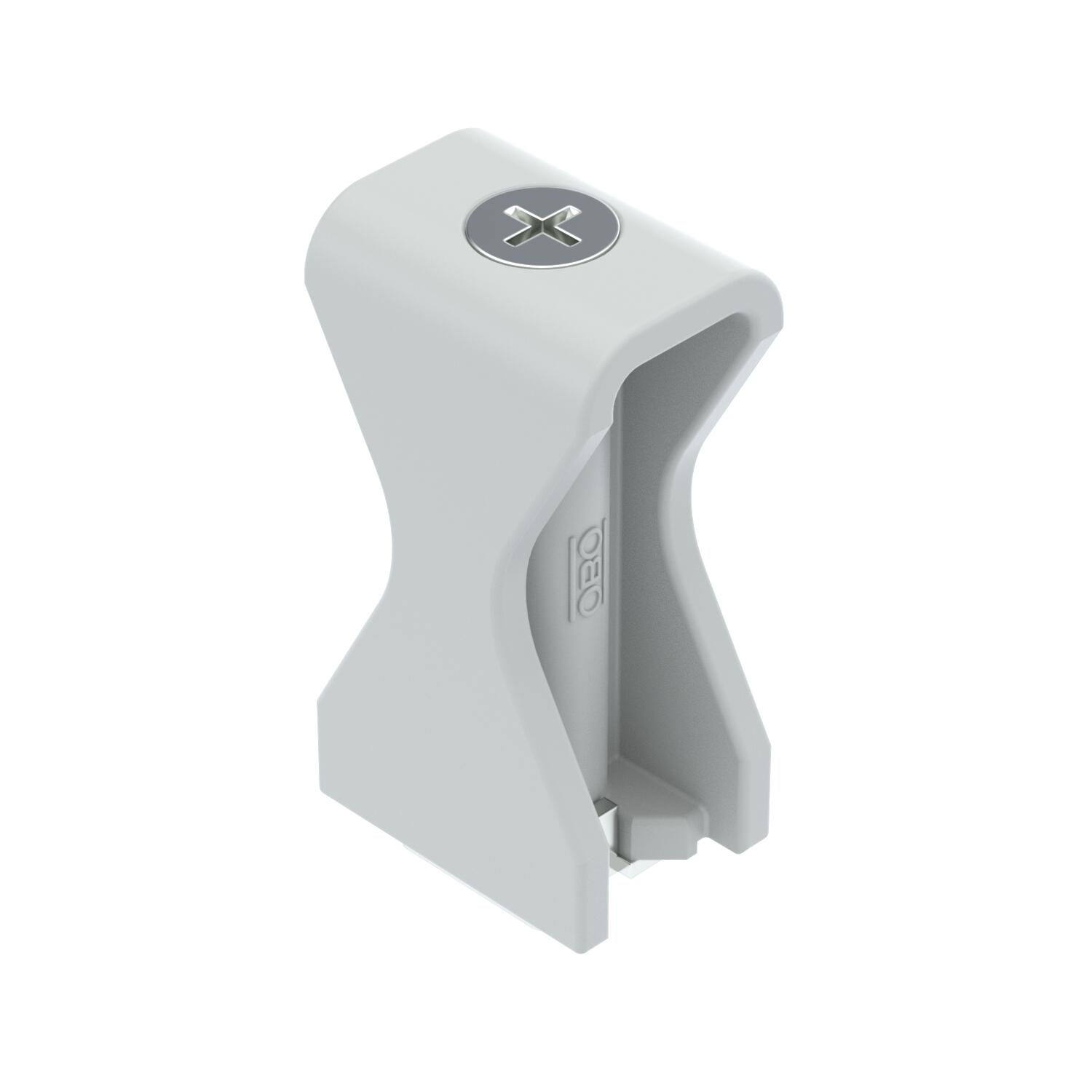

Series clip, light grey

Item no. 2255022 | EAN 4012195222859

Light grey; RAL 7035
Product description

Product description

Heavyweight version, also suitable for rails of 16 ÷ 17 mm slot width; polyamide clip element, light grey RAL 7035; Metal parts: Electrogalvanised steel.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
Technical data

Technical data

Bolt M8 x 80
Clamping range D, max. 72 mm
Clamping range D, min. 24 mm
Colour Light grey; RAL 7035
Dimension 24-72mm
Fastening type Rail fastening
for rail with slot width (with interval), max. 17 mm
for rail with slot width (with interval), min. 16 mm
Halogen-free yes
Impact-resistant no
Material Polyamide
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
Version for Two-lobe

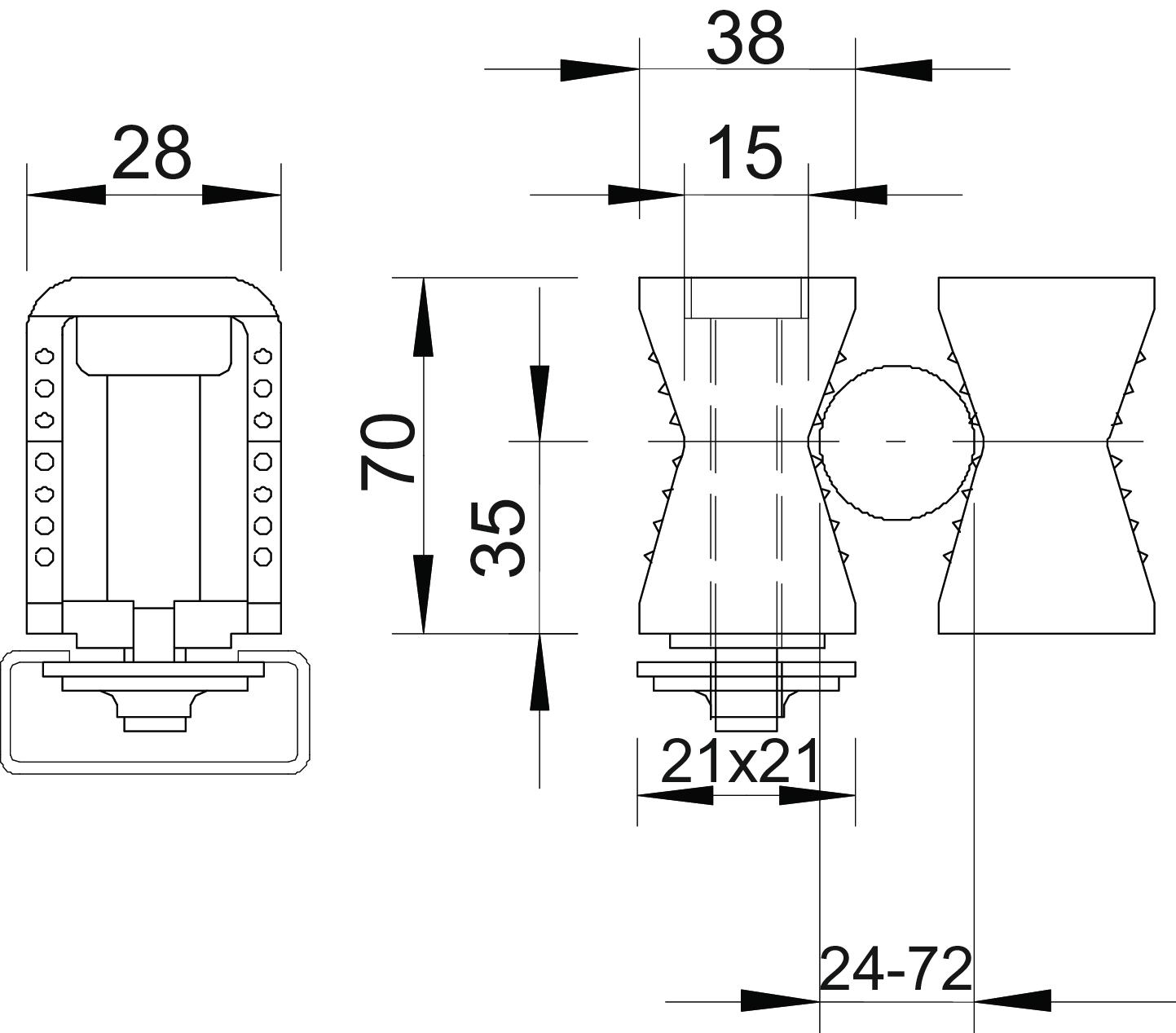

Dimensions

Dimension B 38 mm
Dimension B1 14,5 mm
Dimension H 70 mm
Dimension H1 37 mm
All types

All types

Types Clamping range D, min. Clamping range D, max. Bolt Colour Item no. Quantity SSU
2054 14-48 LGR 14 mm 48 mm M8 x 60 Light grey; RAL 7035 2255014
25 piece
2055 24-72 LGR 24 mm 72 mm M8 x 80 Light grey; RAL 7035 2255022
20 piece
