Separating piece, open Rd 8-10/16

morepic-1

morepic-2

Separating piece, open

Item no. 5335140 | EAN 4012195890058

Item no. / Types	5335140 / 223 O DIN ZN

Fit	Rd 8-10/16 mm

Product description

Product description

• With 2 hexagonal bolts, stainless steel (VA)

• Clamping element, die-cast zinc

Technical data

Technical data

Bimetal connector	no
Dimension	8-10mmx16
Fit	Rd 8-10/16 mm
Intermediate plate	no

Material	Die-cast zinc
Suitable for connection	Round conductor Rd 8-10 / Rd 16
Surface	Electrogalvanized

All types

All types

Types	Fit	Item no.	Quantity	SSU
223 O DIN ZN	Rd 8-10/16 mm	5335140	piece	20 piece

Downloads

Data sheet 223 O DIN ZN / 5335140 , 0.21MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 223 O DIN ZN / 5335140 , 0.06MB , pdf

Download

REACH Declaration of conformity 223 O DIN ZN / 5335140 , 0.12MB , pdf

Download

RoHS Declaration of conformity 223 O DIN ZN / 5335140 , 0.13MB , pdf

Download

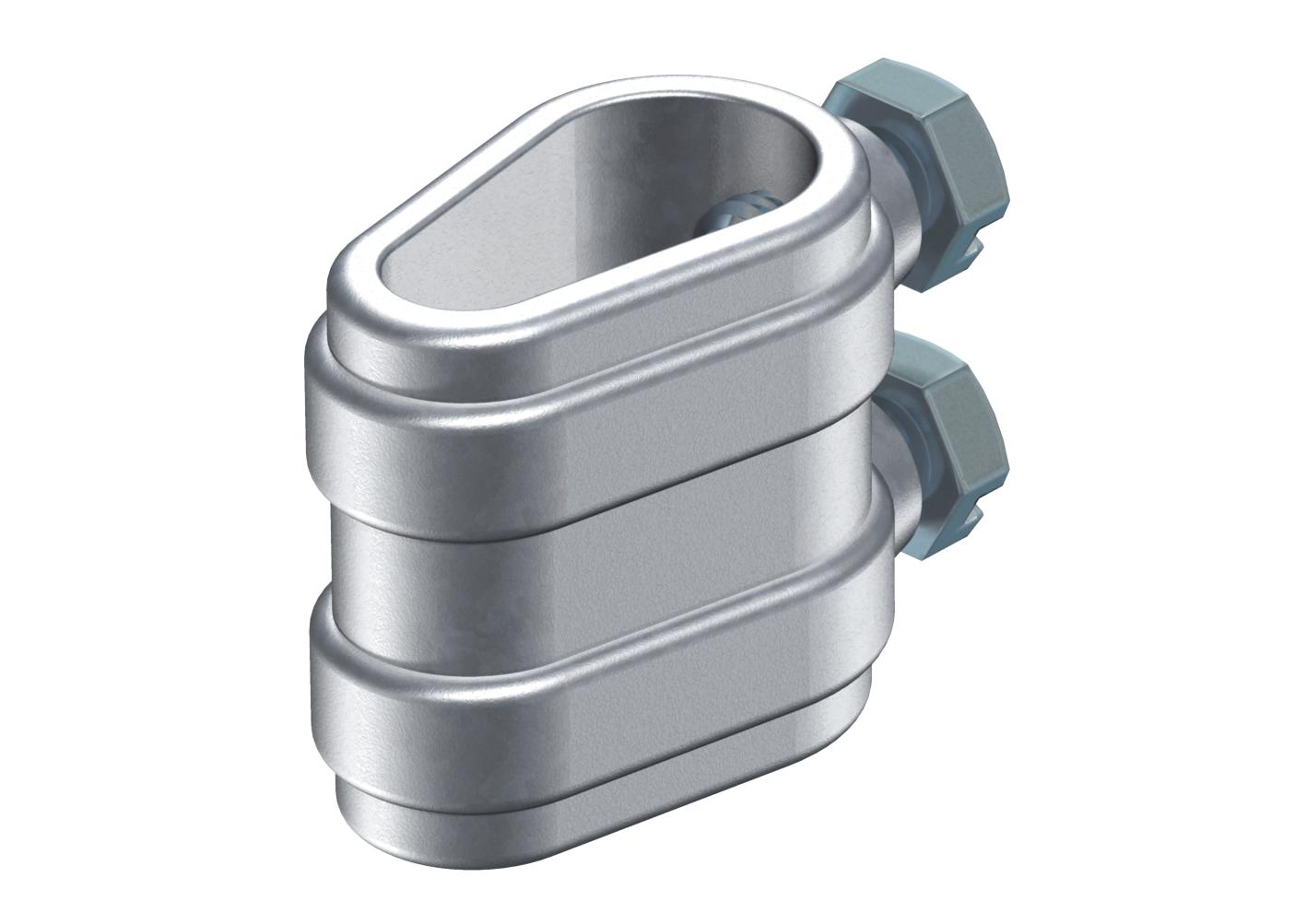

Product graphic 223 O DIN ZN / 5335140, 78.77 kB, jpg

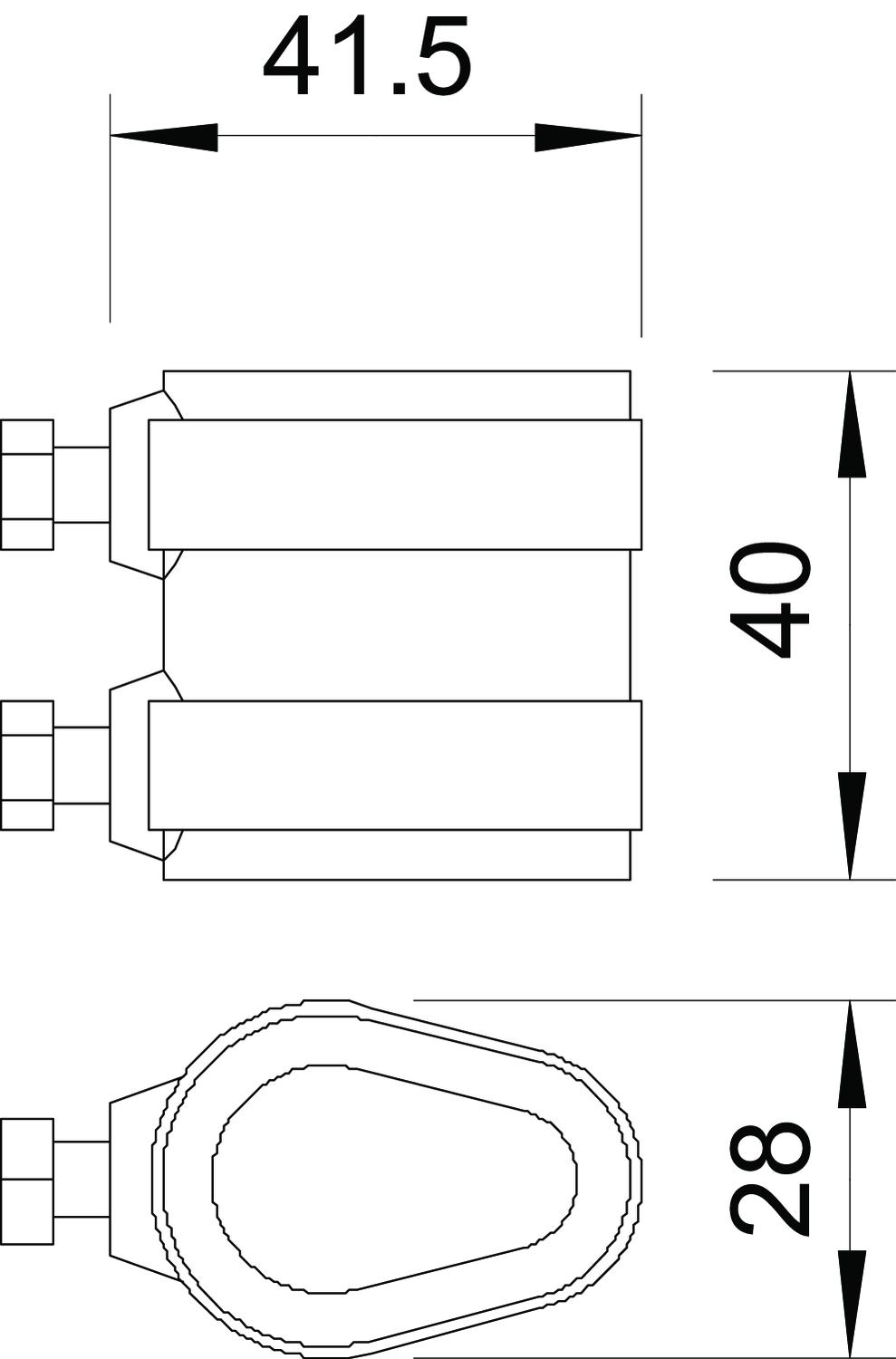

Scale drawing 223 O DIN ZN / 5335140, 63.62 kB, jpg

223 O DIN ZN / 5335140
