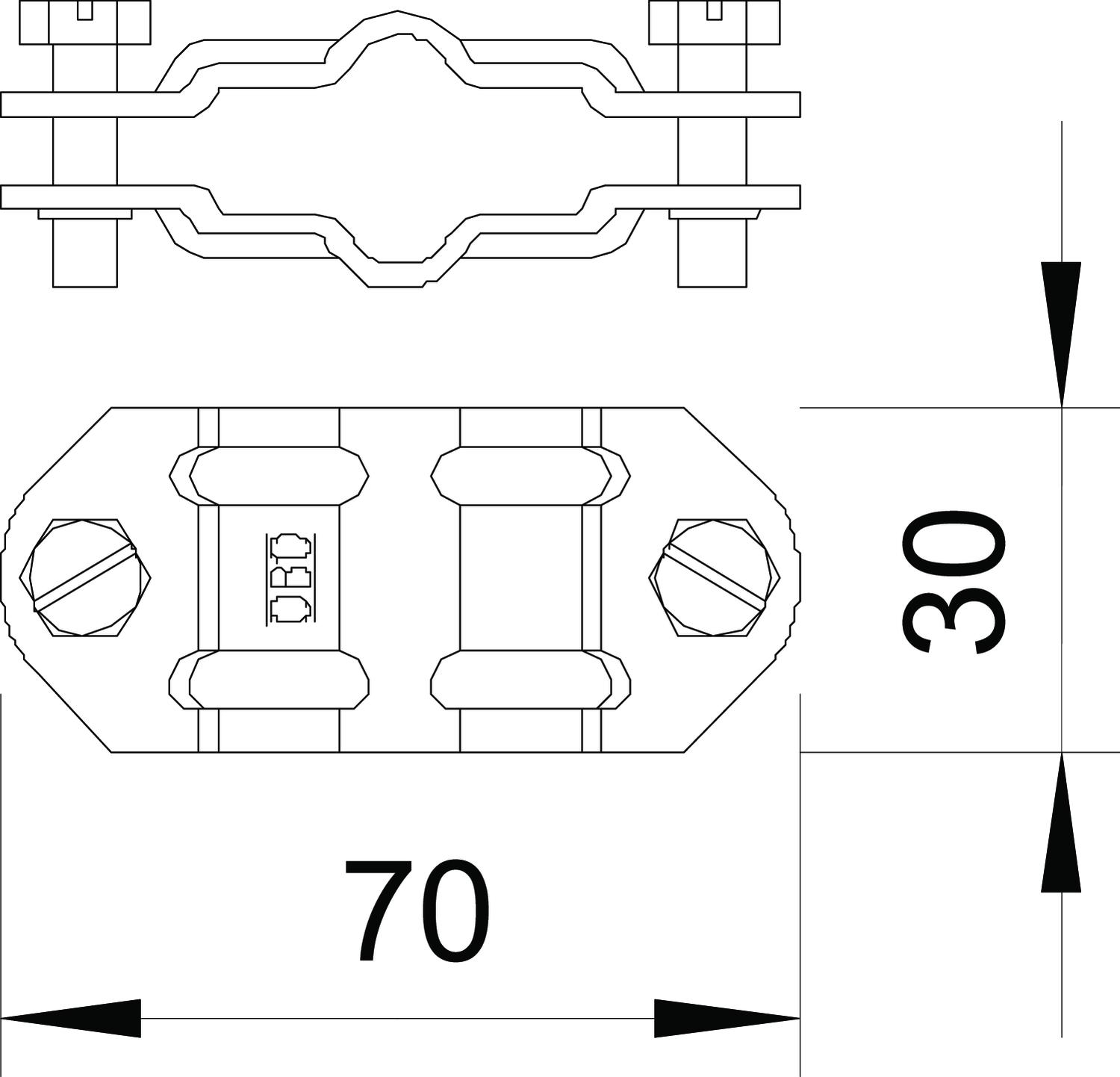

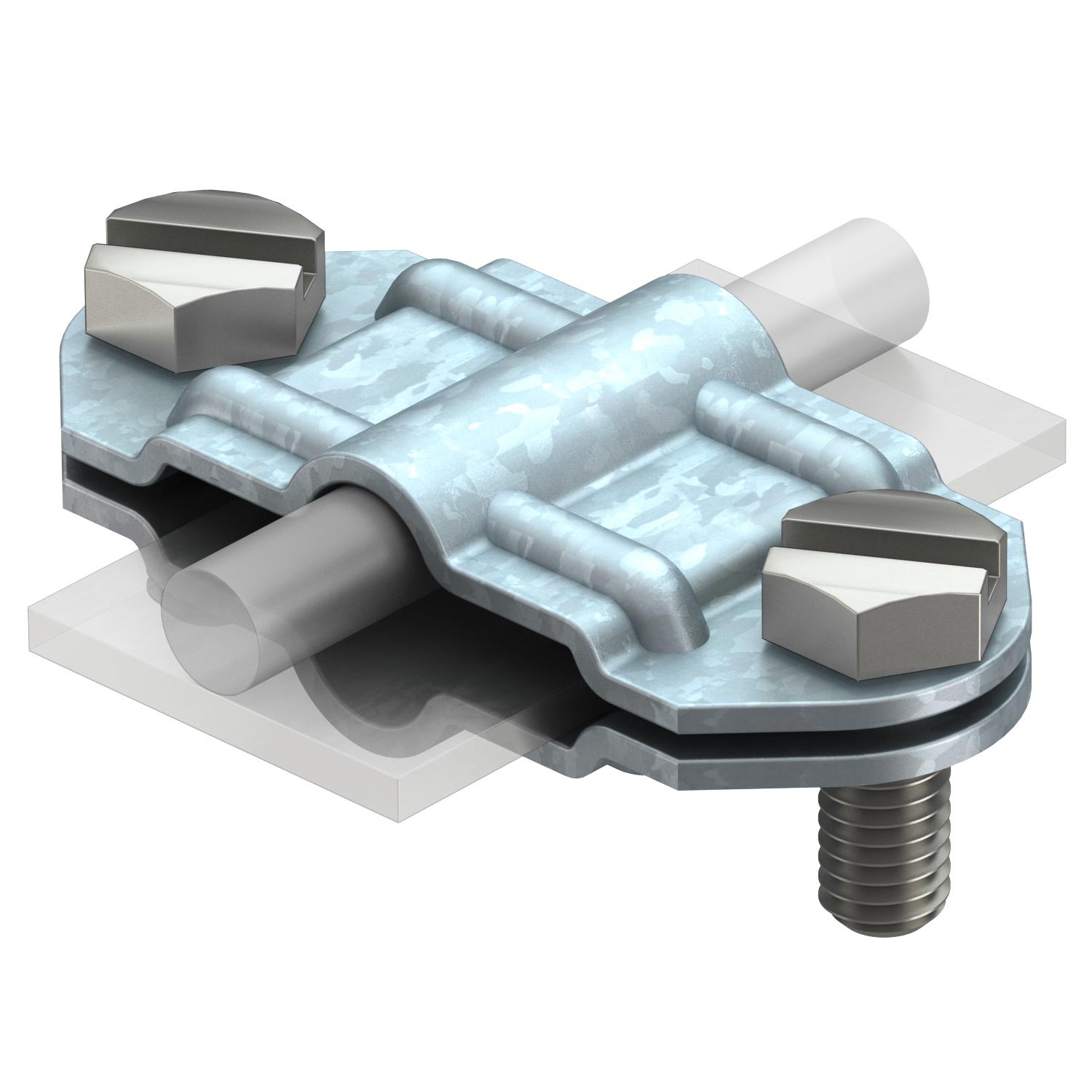

Separating piece for Rd 8−10 and FL 30 mm FT
Item no. 5336309 | EAN 4012195424635
- Product description
-
Product description• To fit round conductors Rd 8-10 or flat conductors FL 30
• With 2 hexagonal bolts M8 x 20 made of rustproof steel (VA)
• Short-circuit current Ik (50 Hz), time 0.6 s, temp. max. 300 °C: 8.5 kA
- Technical data
-
Technical data
Bimetal connector no Dimension 8-10mm Fit Rd 8-10/FL30 x Rd 8-10/FL30 mm Intermediate plate no Material Steel Suitable for connection Miscellaneous Surface Hot-dip galvanised - All types
