Separating piece for Rd 8−10 and FL 30−40 mm 8-10xFL30-40

morepic-1

morepic-2

Separating piece for Rd 8−10 and FL 30−40 mm

Item no. 5336457 | EAN 4012195424871

Item no. / Types	5336457 / 233 A VA

Fit	8-10xFL30-40 mm

Product description

Product description

• Fit: Rd 8-10 x FL 30-40
• With 2 hexagonal bolts M8 x 20 (VA)

Technical data

Technical data

Bimetal connector	no
Dimension	8-10mm
Fit	8-10xFL30-40 mm

Intermediate plate	no
Material	Stainless steel
Suitable for connection	Round conductor Rd 8-10 / flat conductor Fl 30-40

All types

All types

Types	Fit	Item no.	Quantity	SSU
233 A VA	8-10xFL30-40 mm	5336457	piece	10 piece

Downloads

Data sheet 233 A VA / 5336457 , 0.22MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

EU declaration of conformity 233 A VA / 5336457 , 0.06MB , pdf

Download

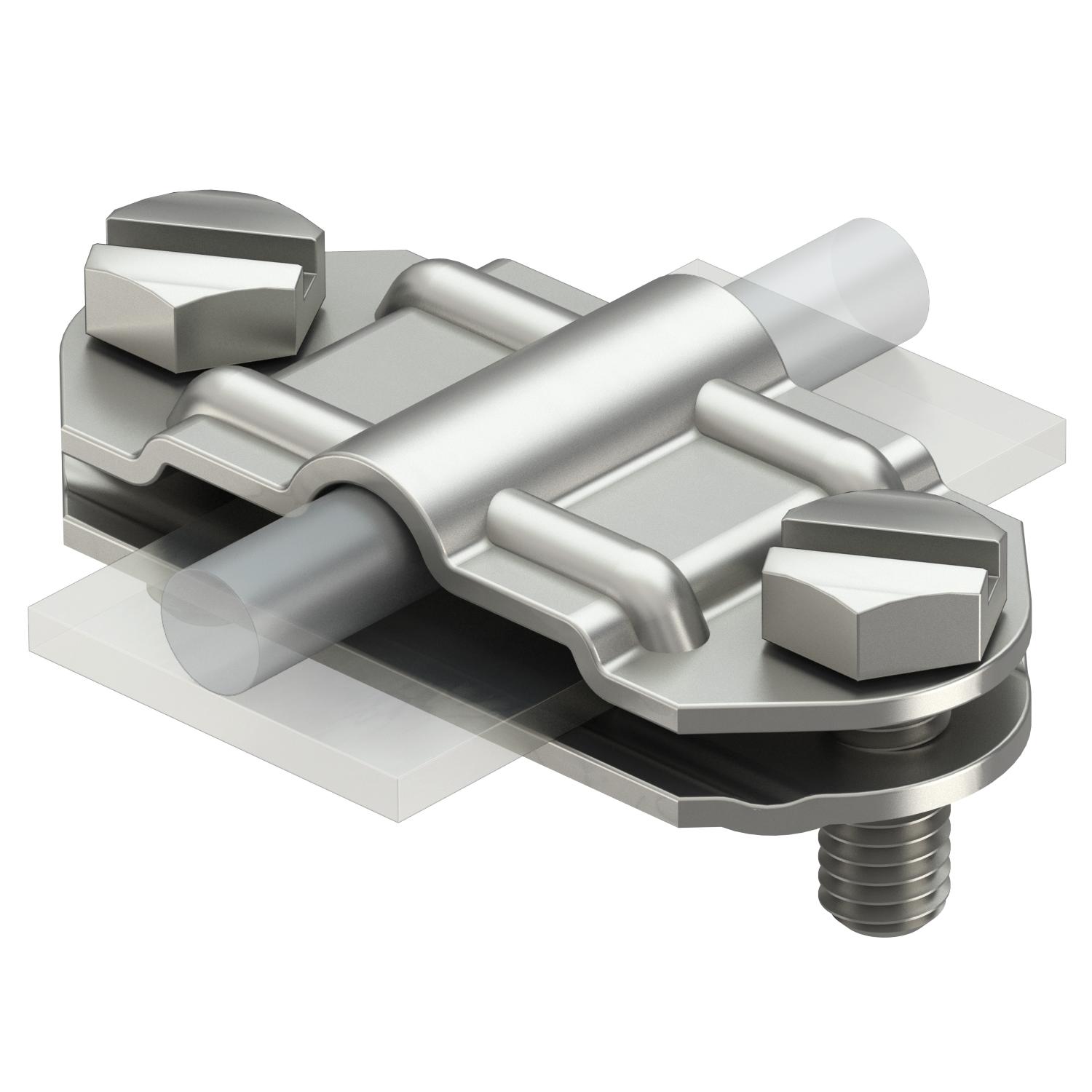

Product graphic 233 A VA / 5336457, 95.44 kB, jpg

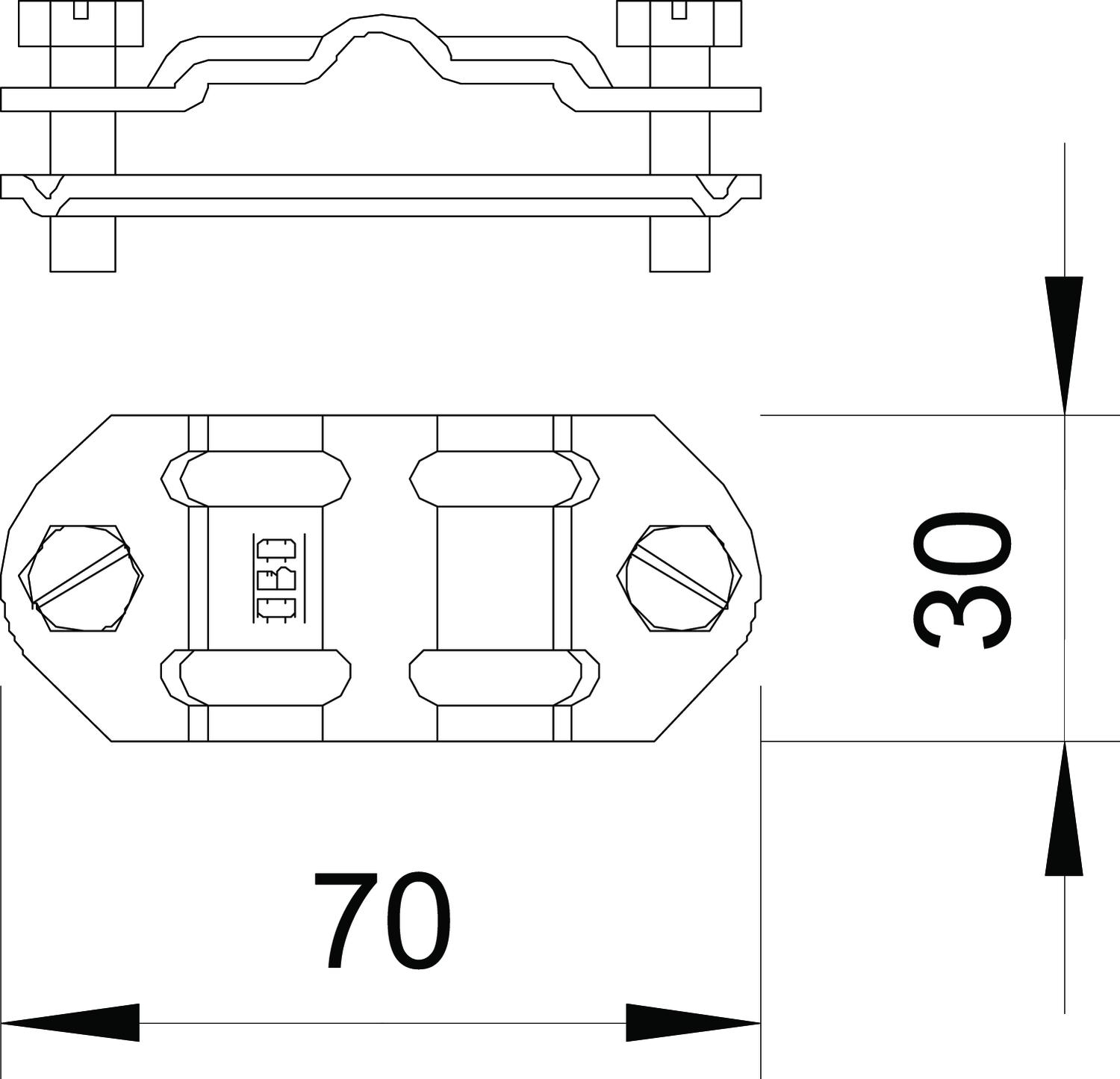

Scale drawing 233 A VA / 5336457, 85.47 kB, jpg

233 A VA / 5336457

Trennstück für Rd 8-10 und FL 30-40 mm.rfa, 1.11 MB
