Note: This article is discontinued.

Separating bracket for wall mounting

Item no. 7215324 | EAN 4012196896233

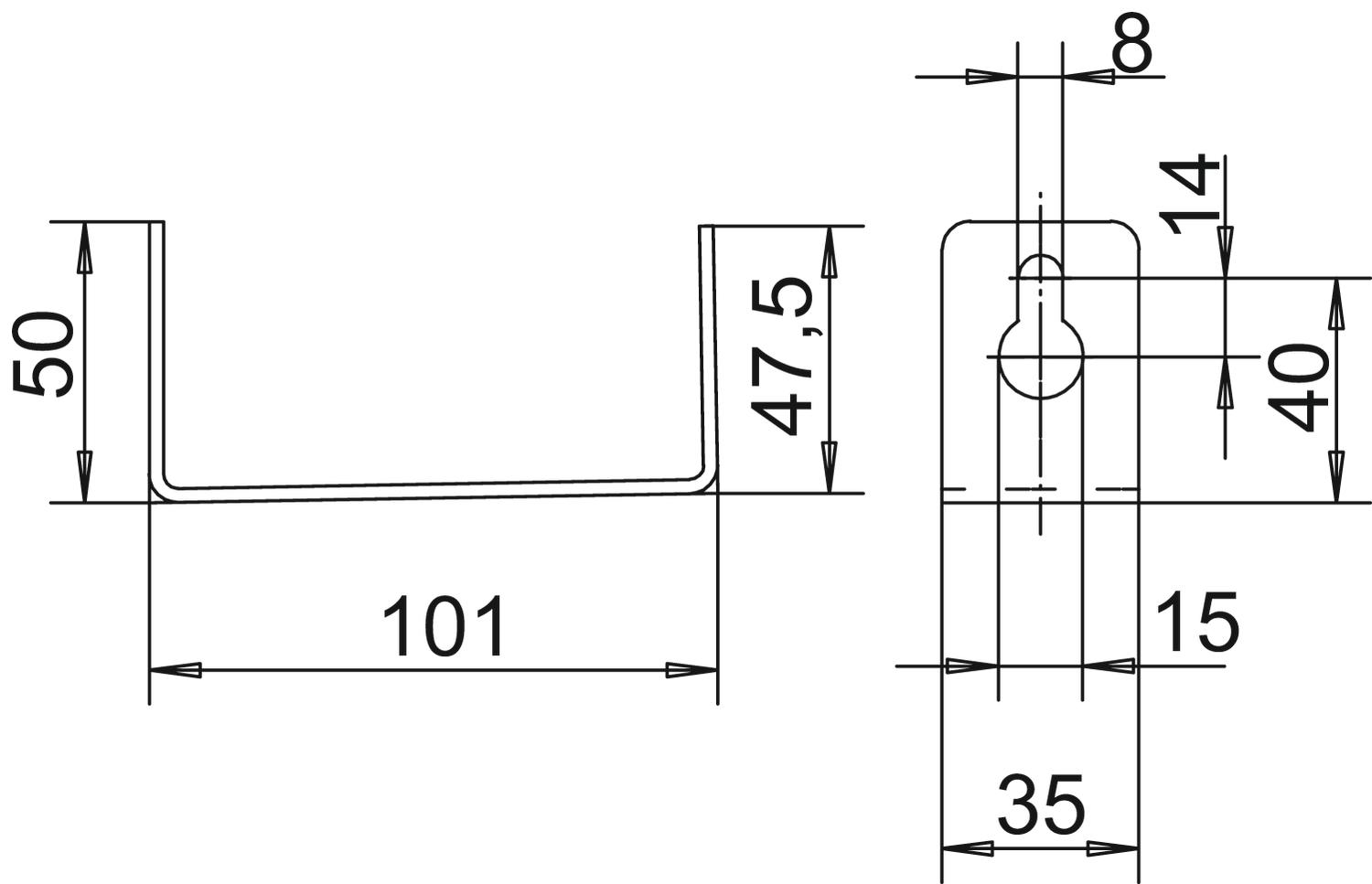

7215324 / BSK-W1016
40 mm
101 mm
50 mm
47.5 mm
Product description

Product description

Separating bracket as installation aid when mounting the PYROLINE® Con D BSK, type BSK 091016 and type BSK 121016, fire protection duct on the wall. Mounting of the bracket directly on the fastening anchors of the fire protection duct.
  • Fire protection duct for wall mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

Dimensions

Dimension A 40 mm
Dimension B 101 mm
Dimension H 50 mm
Dimension h 47,5 mm
Duct height, internal 105 mm
Duct width, internal 160 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension H Dimension h Item no. Quantity SSU
BSK-W1016 40 mm 101 mm 50 mm 47.5 mm 7215324
25 piece
Downloads

Download

Download
Download

No invitation to tender text is available for this product.
