Separable cable gland, sealing insert, multiple, light grey 4 | | M25 x 1,5 | yes | Light grey

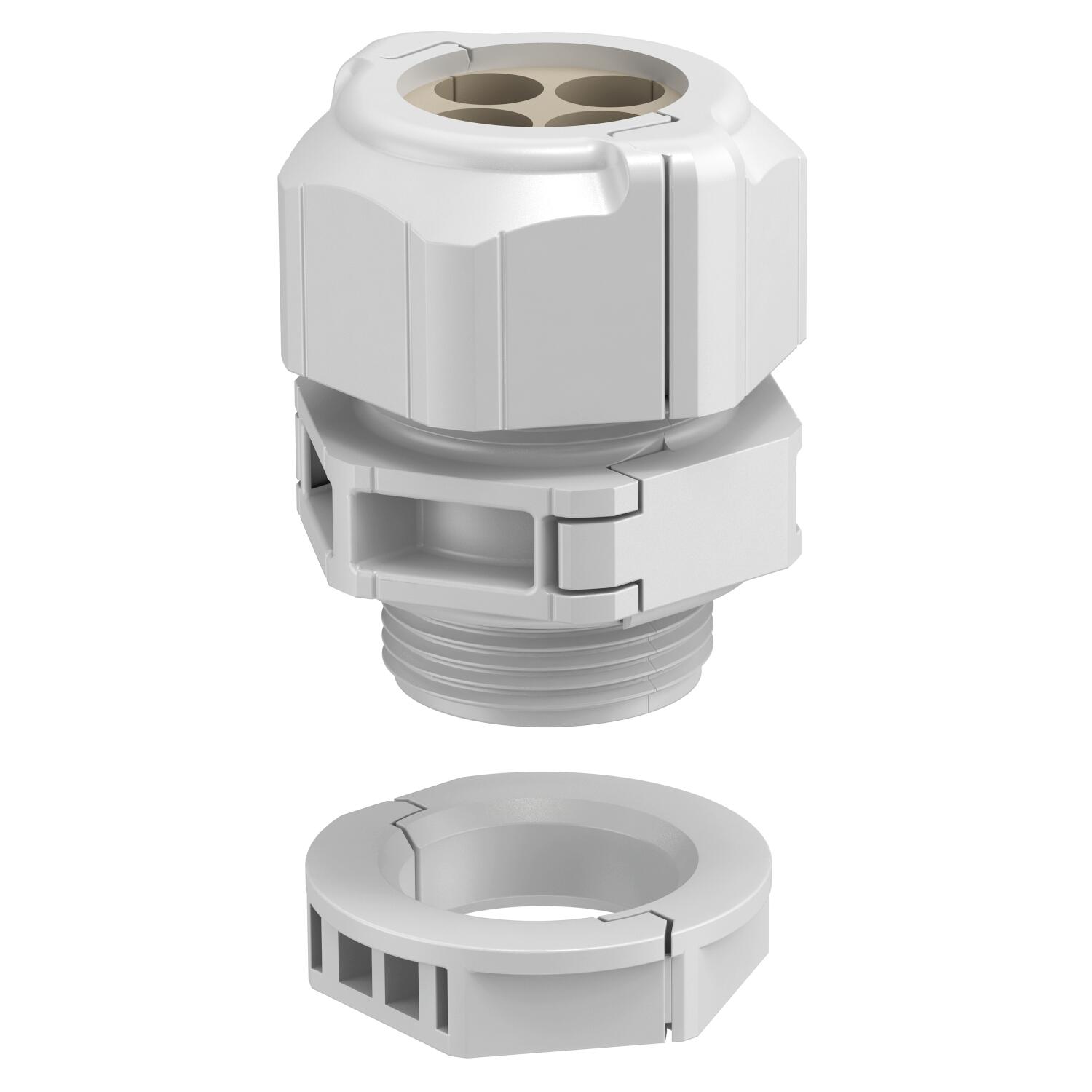

Separable cable gland, sealing insert, multiple, light grey

Item no. 2024931 | EAN 4012196334605

Item no. / Types

Number of drill holes

Thread	M25 x 1,5

Sealing insert, multiple	yes

Colour	Light grey

Product description

Product description

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.

The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
Further multiple sealing inserts upon request.

Technical data

Technical data

Bend protection	no
Colour	Light grey
Dimension	M25
Dimension D	8 mm
Dimension E1 (mm)	39 mm
Dimension E2	34,5 mm
Dimension G	M25x1,5 mm
Dimension L	41 mm
Dimension L max.	40 mm
Dimension L min.	31,5 mm
Dimension L1	11 mm
Dimension L2	10 mm
Dimension L3	9 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	50 mm
Hexagonal corner dimension	35 mm

Impact-resistant	yes
Length	35 mm
Material	Polycarbonate
Nominal thread size	25
Number of drill holes	4
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP67
Sealing insert, multiple	yes
Splittable gland	yes
Strain relief option	no
Thread	M25 x 1,5
Thread increase	1,5 mm
Thread length	11 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	4 Nm
Version for	Straight
WAF 1	35 mm
WAF 2	31 mm
Width	38,5 mm
With locknut	yes

All types

All types

Types	Number of drill holes	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC TB25 3x7	3	M25 x 1,5	yes	Light grey	2024927	piece	5 piece
V-TEC TB25 3x9	3	M25 x 1,5	yes	Light grey	2024928	piece	5 piece
V-TEC TB25 4x5	4	M25 x 1,5	yes	Light grey	2024929	piece	5 piece
V-TEC TB25 4x6	4	M25 x 1,5	yes	Light grey	2024930	piece	5 piece
V-TEC TB25 4x8	4	M25 x 1,5	yes	Light grey	2024931	piece	5 piece
