Sealing sleeve for flat conductors
Item no. 2360043 | EAN 4012196421053
- Product description
-
Product description
• Sealing sleeve for penetrations of waterproof foundation plates/walls
(e.g. white trough)

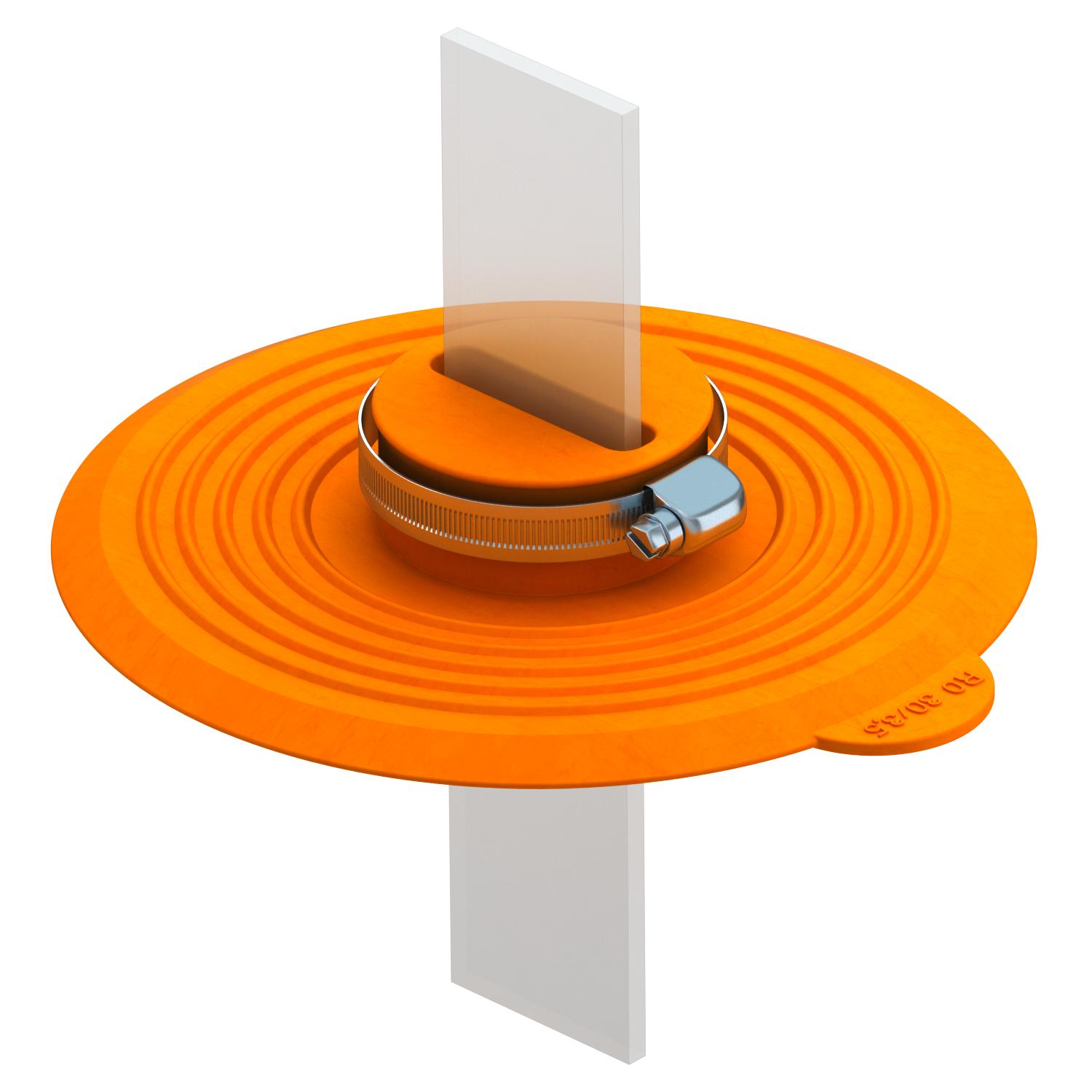

• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
- Technical data
-
Technical data
Colour Pastel orange; RAL 2003 Dimension 30x3,5 Fit FL 30x3,5 mm Material Thermoplastic elastomer - All types
- Downloads
-
Data sheet DW FL30x3,5 / 2360043 , 0.12MB , pdfDeclaration of conformity DW FL30x3,5 / 2360043 , 0.04MB , pdfREACH Declaration of conformity DW FL30x3,5 / 2360043 , 0.12MB , pdfRoHS Declaration of conformity DW FL30x3,5 / 2360043 , 0.12MB , pdfMounting instructions Mounting instructions, sealing sleeve , 2.00MB , pdf
