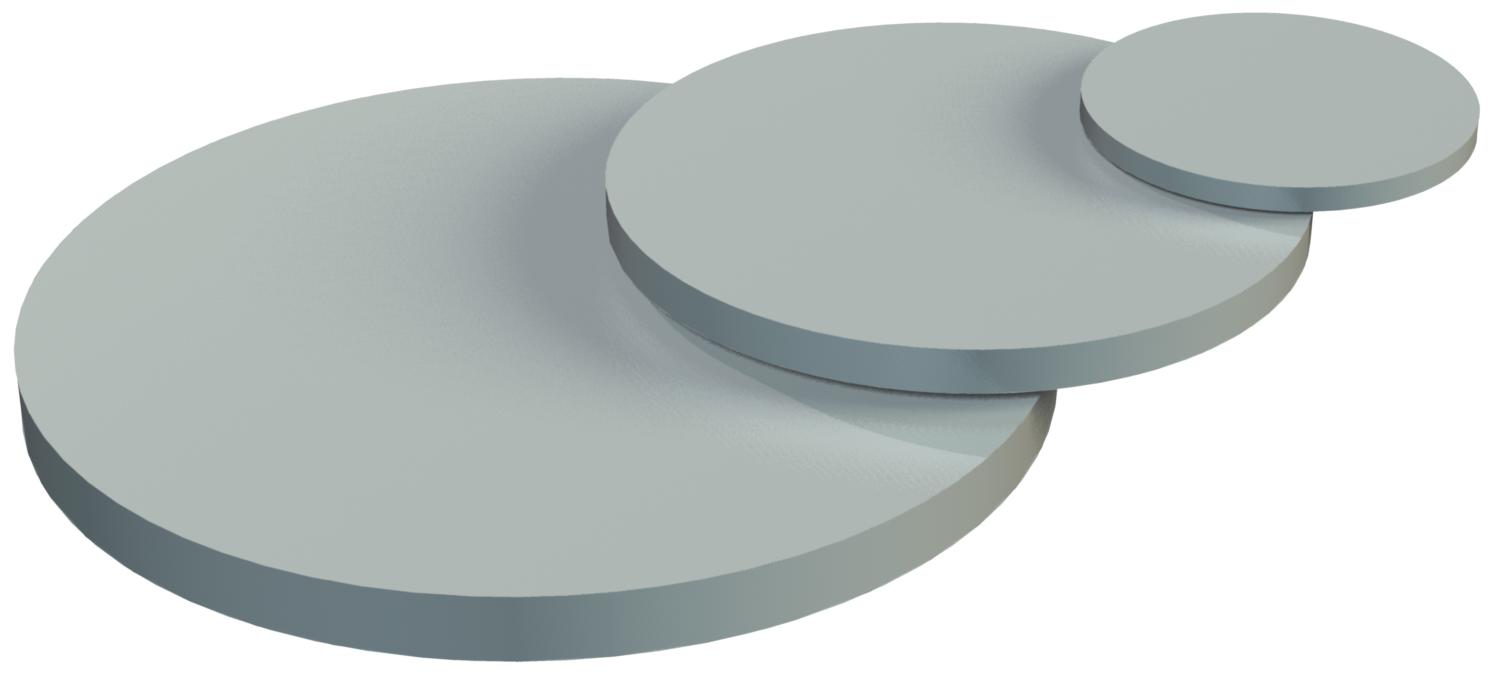

Sealing plate, PG

Item no. 2029707 | EAN 4012195167594

Item no. / Types

Screw for PG thread dimension

Product description

Product description

The sealing plate offers both mechanical protection and the maintenance of the protection rating of plastic and metal cable glands to DIN 46320 before cable installation.
Application: the discs are placed between the pressure screw and the pressure ring. If the safe maintenance of IP65 is required, we recommend placing the discs between the pressure ring and the sealing ring. To mount the cable, remove the discs – they can be reused.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	PG7

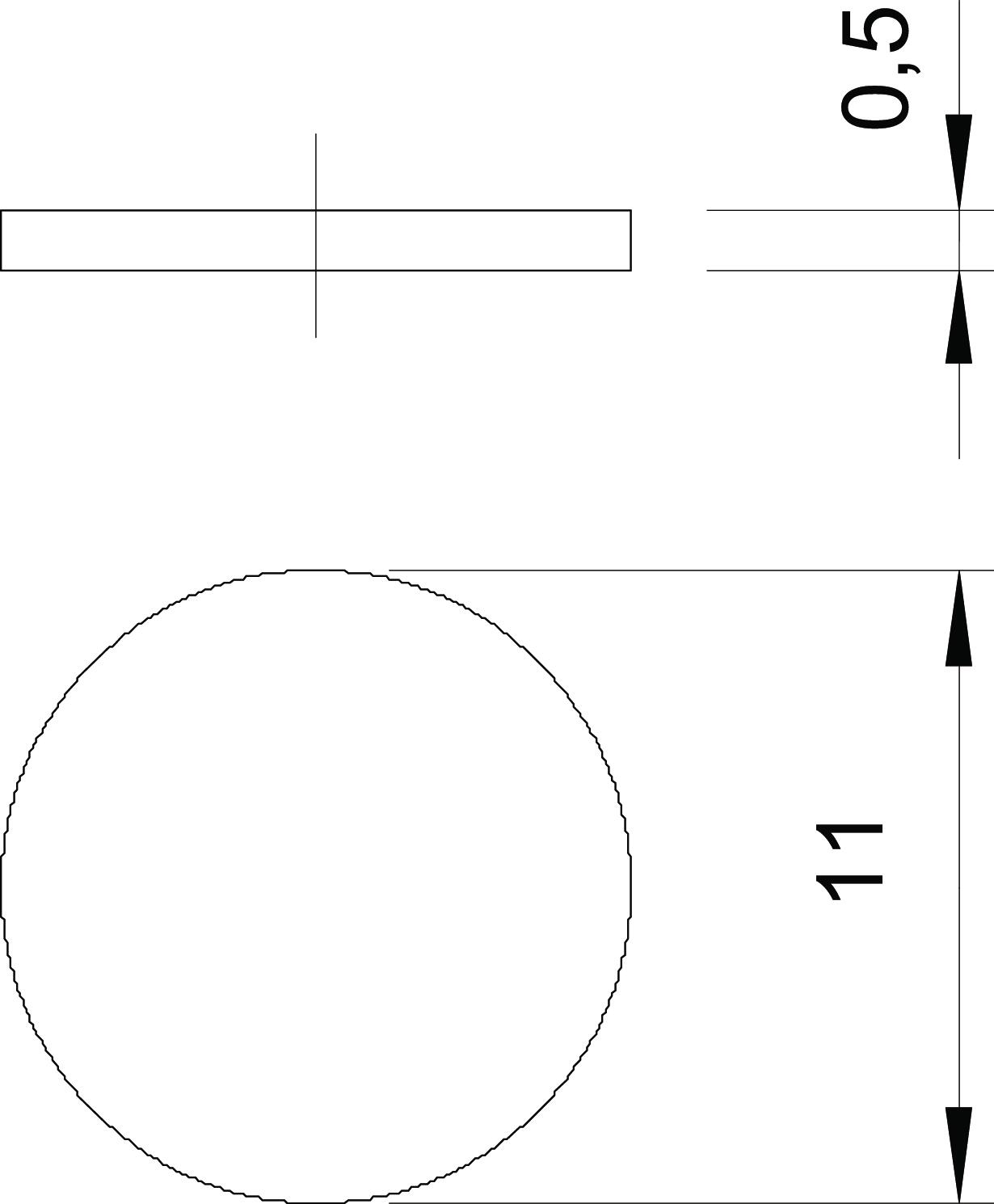

Dimension D	11 mm
Dimension t	0,5 mm
External diameter	11 mm

Material	Polyvinylchloride
Screw for PG thread dimension	7
Thickness	0,5 mm
Version for	Miscellaneous

All types

All types

Types	Screw for PG thread dimension	Item no.	Quantity	SSU
107 V PG 7 PVC	7	2029707	piece	100 piece
107 V PG 9 PVC	9	2029715	piece	100 piece
107 V PG11 PVC	11	2029723	piece	100 piece
107 V PG13.5 PVC	13.5	2029731	piece	100 piece
107 V PG16 PVC	16	2029758	piece	100 piece
107 V PG21 PVC	21	2029766	piece	100 piece
107 V PG29 PVC	29	2029774	piece	100 piece
