Screw plug, PG thread Pg 21

morepic-1

morepic-2

Screw plug, PG thread

Item no. 2033216 | EAN 4012195170532

Item no. / Types

Thread

Product description

Product description

Screw plug in accordance with DIN 46320, with PG thread to DIN 40430.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	PG21
Dimension D	34 mm
Dimension L	8 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without
For Ex zone gas	Without

Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Nominal thread size metric/PG	21
Thread	Pg 21
Thread increase	1,59 mm
Thread type	PG

All types

All types

Types	Thread	Item no.	Quantity	SSU
108 PG 7	Pg 7	2033070	piece	100 piece
108 PG 9	Pg 9	2033097	piece	100 piece
108 PG11	Pg 11	2033119	piece	100 piece
108 PG13.5	Pg 13,5	2033135	piece	100 piece
108 PG16	Pg 16	2033151	piece	100 piece
108 PG21	Pg 21	2033216	piece	100 piece
108 PG29	Pg 29	2033291	piece	50 piece
108 PG36	Pg 36	2033364	piece	25 piece
108 PG42	Pg 42	2033429	piece	25 piece
108 PG48	Pg 48	2033488	piece	25 piece

Downloads

Data sheet 108 PG21 / 2033216 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 108 PG21 / 2033216 , 0.05MB , pdf

Download

REACH Declaration of conformity 108 PG21 / 2033216 , 0.12MB , pdf

Download

RoHS Declaration of conformity 108 PG21 / 2033216 , 0.12MB , pdf

Download

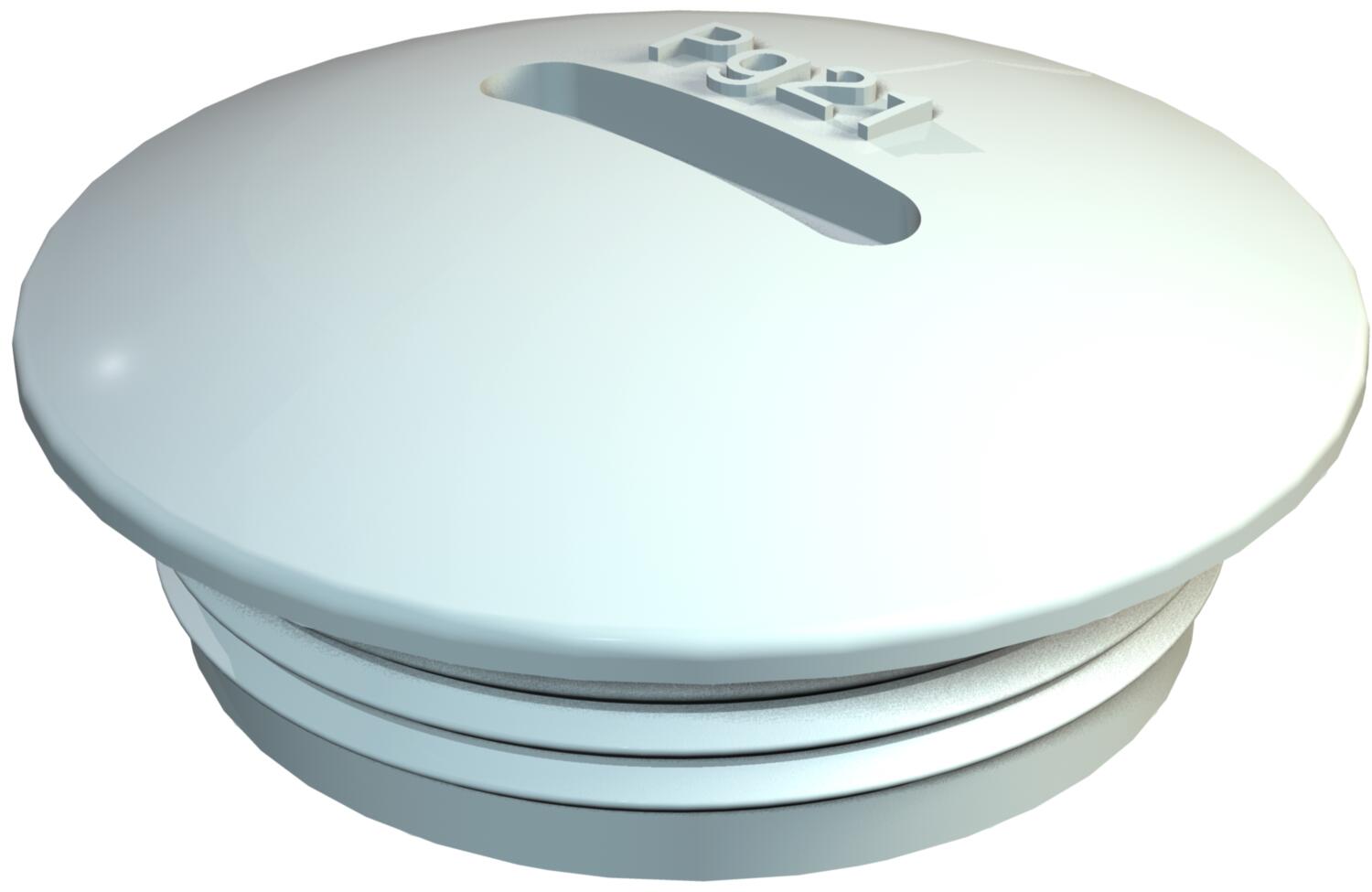

Product graphic 108 PG21 / 2033216, 51.31 kB, jpg

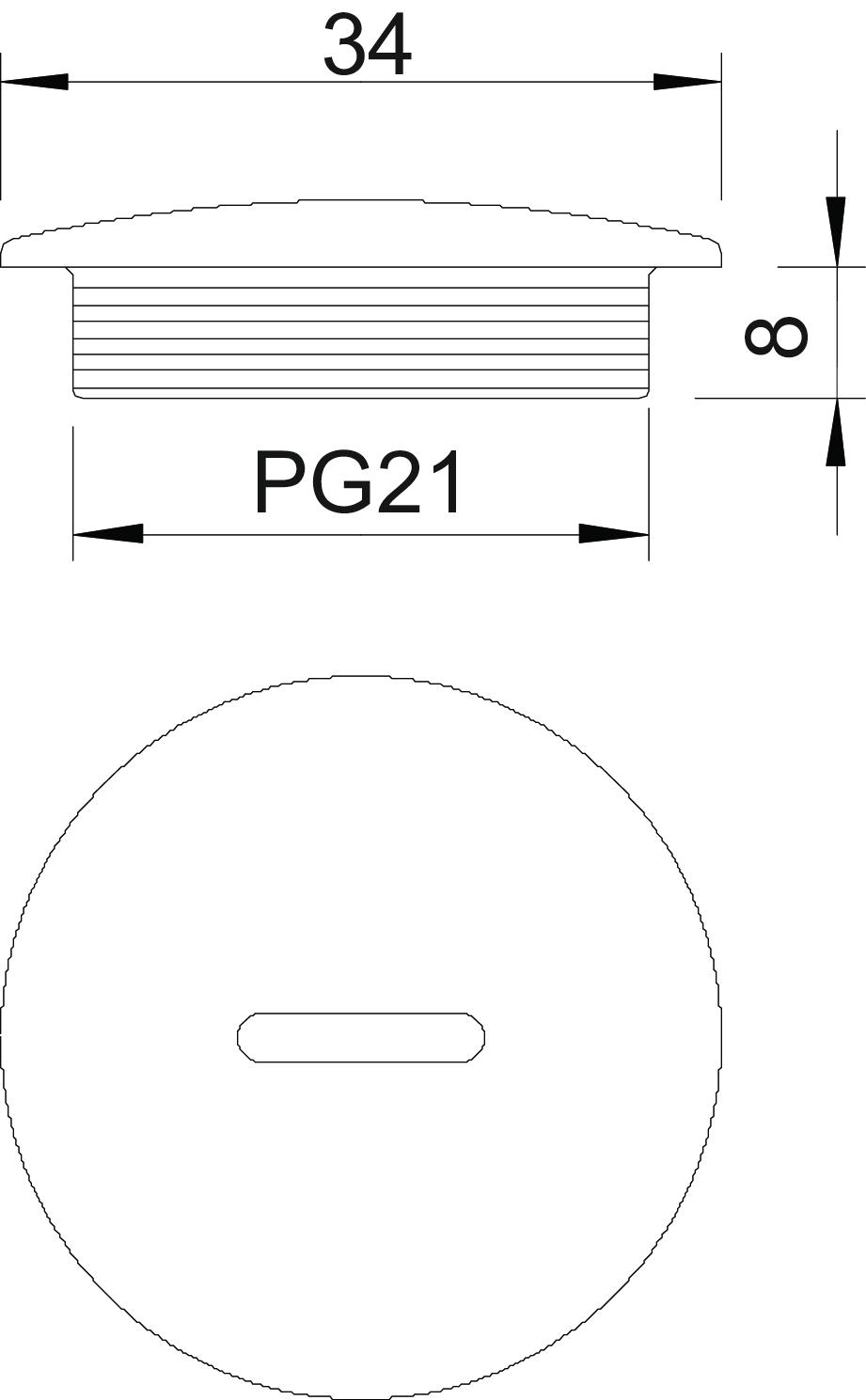

Scale drawing 108 PG21 / 2033216, 49.78 kB, jpg

108 PG21 / 2033216

2033216_KSTP1.stp, 57.46 kB
