Screw plug, PG thread Pg 13,5
morepic-1 morepic-2

Screw plug, PG thread

Item no. 2033135 | EAN 4012195170419

Product description
Product description
Screw plug in accordance with DIN 46320, with PG thread to DIN 40430.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

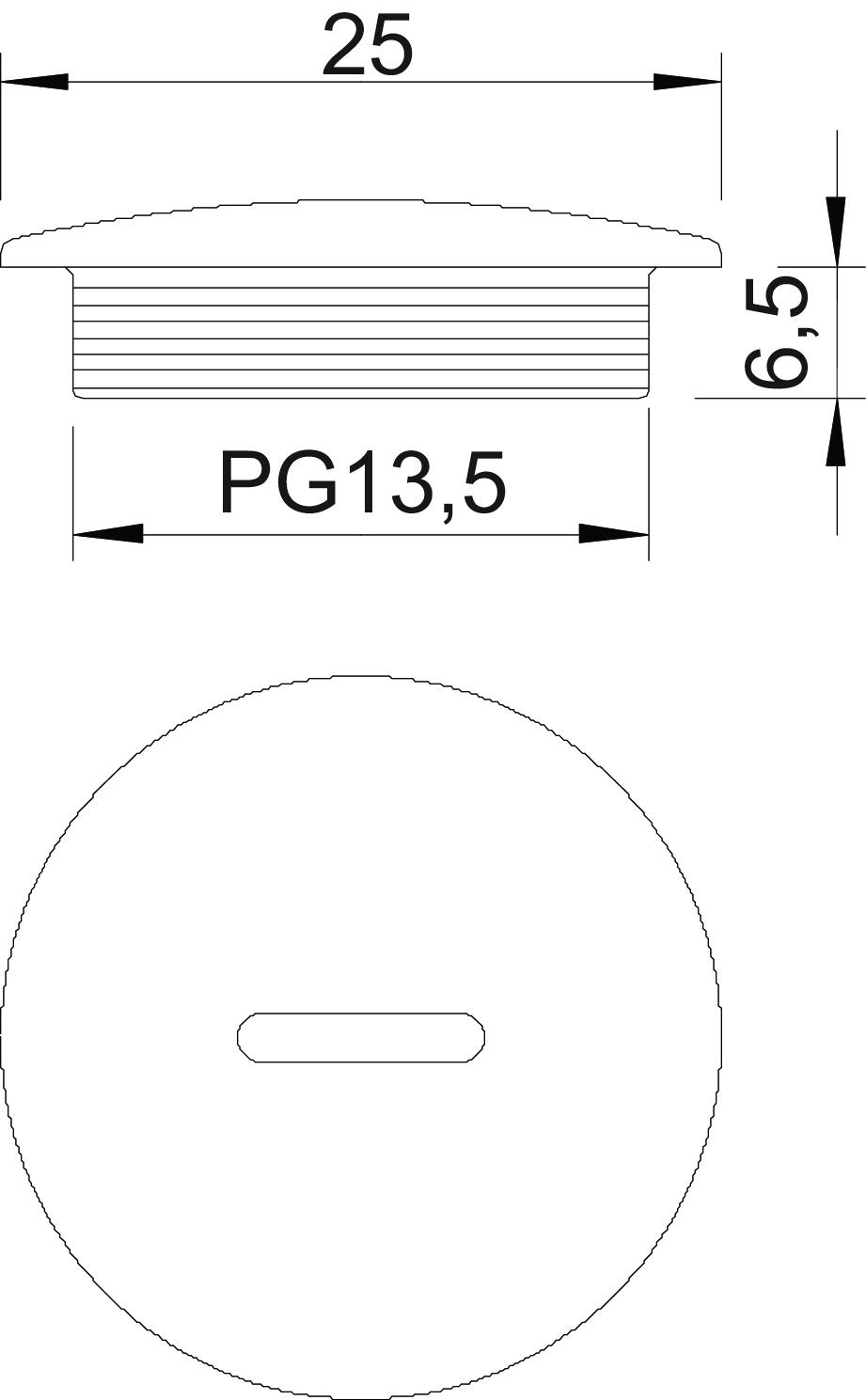

Dimension PG13,5
Dimension D 25 mm
Dimension L 6,5 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size metric/PG 13,5
Thread Pg 13,5
Thread increase 1,41 mm
Thread type PG
All types

All types

Types Thread Item no. Quantity SSU
108 PG 7 Pg 7 2033070
100 piece
108 PG 9 Pg 9 2033097
100 piece
108 PG11 Pg 11 2033119
100 piece
108 PG13.5 Pg 13,5 2033135
100 piece
108 PG16 Pg 16 2033151
100 piece
108 PG21 Pg 21 2033216
100 piece
108 PG29 Pg 29 2033291
50 piece
108 PG36 Pg 36 2033364
25 piece
108 PG42 Pg 42 2033429
25 piece
108 PG48 Pg 48 2033488
25 piece
