- Product description
-

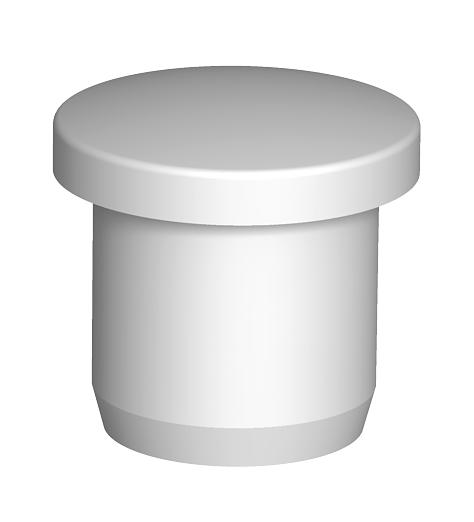

Product descriptionScrew plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension 35mm Dimension D1 35 mm Dimension D2 39 mm Dimension H 29 mm Dimension L 25 mm explosion-proof no External diameter 39 mm Fibre-glass reinforced yes For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Inner diameter 35 mm Material Polyamide Nominal thread size metric/PG 50 Permitted temperature range, max. 100 °C Permitted temperature range, min. -40 °C Screw for PG thread dimension 42 Size M50 / Pg42 Suitable for metric thread dimension 50 Thread type Metric Version for Miscellaneous - All types
- Downloads
-
Data sheet 107VS VM 35 PA / 2029533 , 0.14MB , pdfREACH Declaration of conformity 107VS VM 35 PA / 2029533 , 0.12MB , pdfRoHS Declaration of conformity 107VS VM 35 PA / 2029533 , 0.12MB , pdf
