- Product description
-

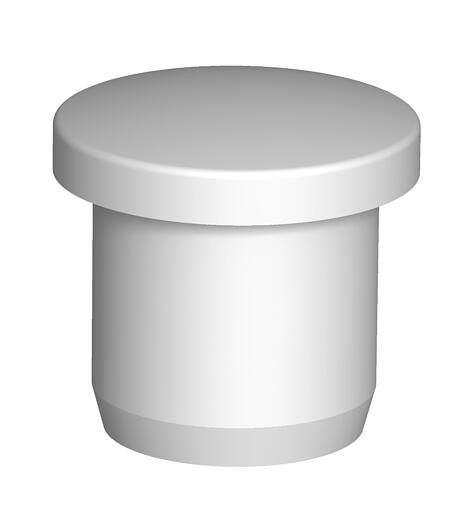

Product descriptionScrew plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
- Technical data
-
Technical data

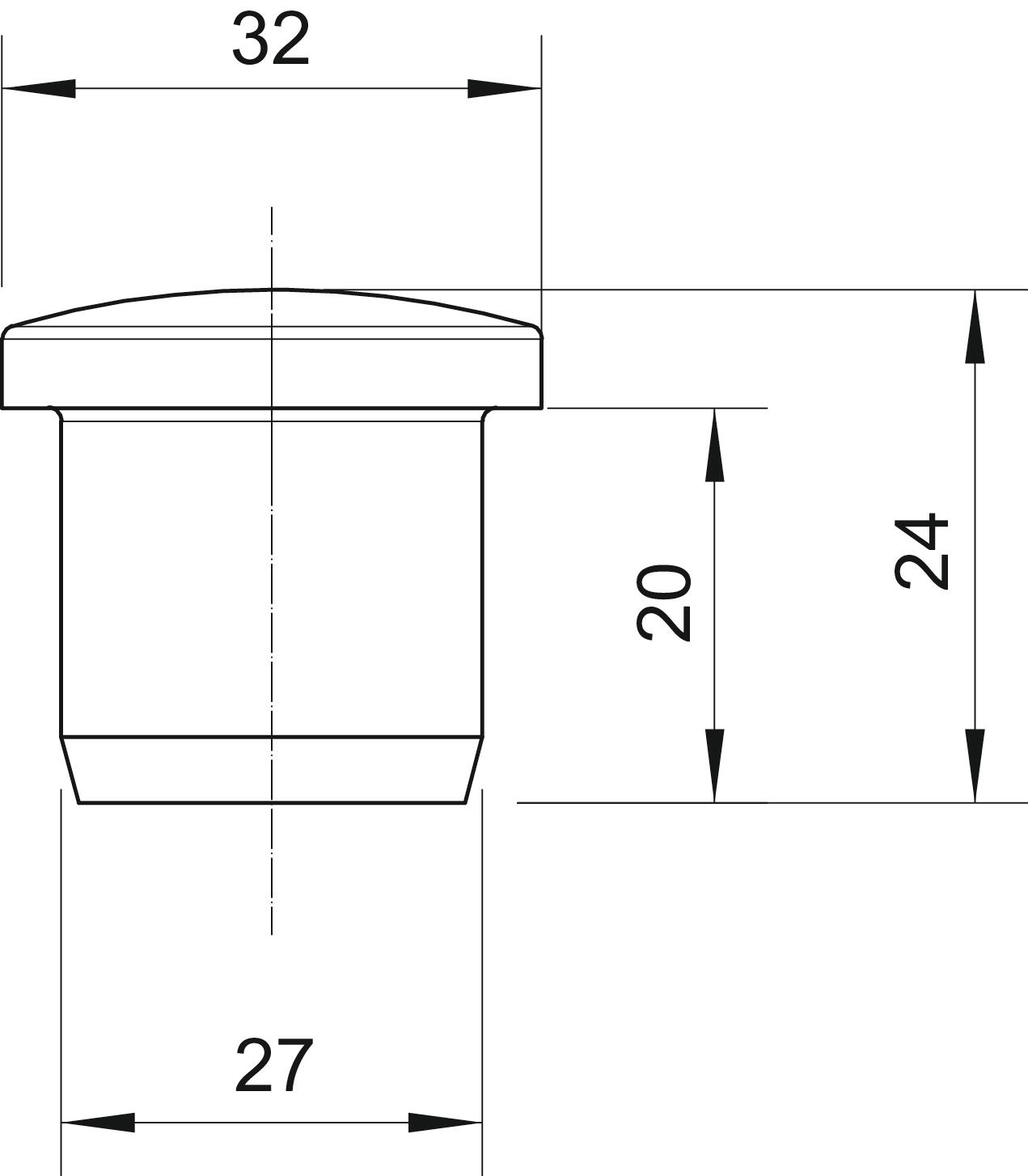

Colour Light grey; RAL 7035 Dimension 27mm Dimension D1 27 mm Dimension D2 32 mm Dimension H 24 mm Dimension L 20 mm explosion-proof no External diameter 32 mm Fibre-glass reinforced yes For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Inner diameter 27 mm Material Polyamide Nominal thread size metric/PG 40 Permitted temperature range, max. 100 °C Permitted temperature range, min. -40 °C Screw for PG thread dimension 36 Size M40 / Pg36 Suitable for metric thread dimension 40 Thread type Metric Version for Miscellaneous - All types
- Downloads
-
Data sheet 107VS VM 27 PA / 2029529 , 0.14MB , pdfREACH Declaration of conformity 107VS VM 27 PA / 2029529 , 0.12MB , pdfRoHS Declaration of conformity 107VS VM 27 PA / 2029529 , 0.12MB , pdf
