Screw plug, metric and PG

Item no. / Types

Suitable for metric thread dimension

Screw for PG thread dimension

Product description

Product description

Screw plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.

Technical data

Screw for PG thread dimension	29
Size	M32 / Pg29
Suitable for metric thread dimension	32
Version for	Miscellaneous

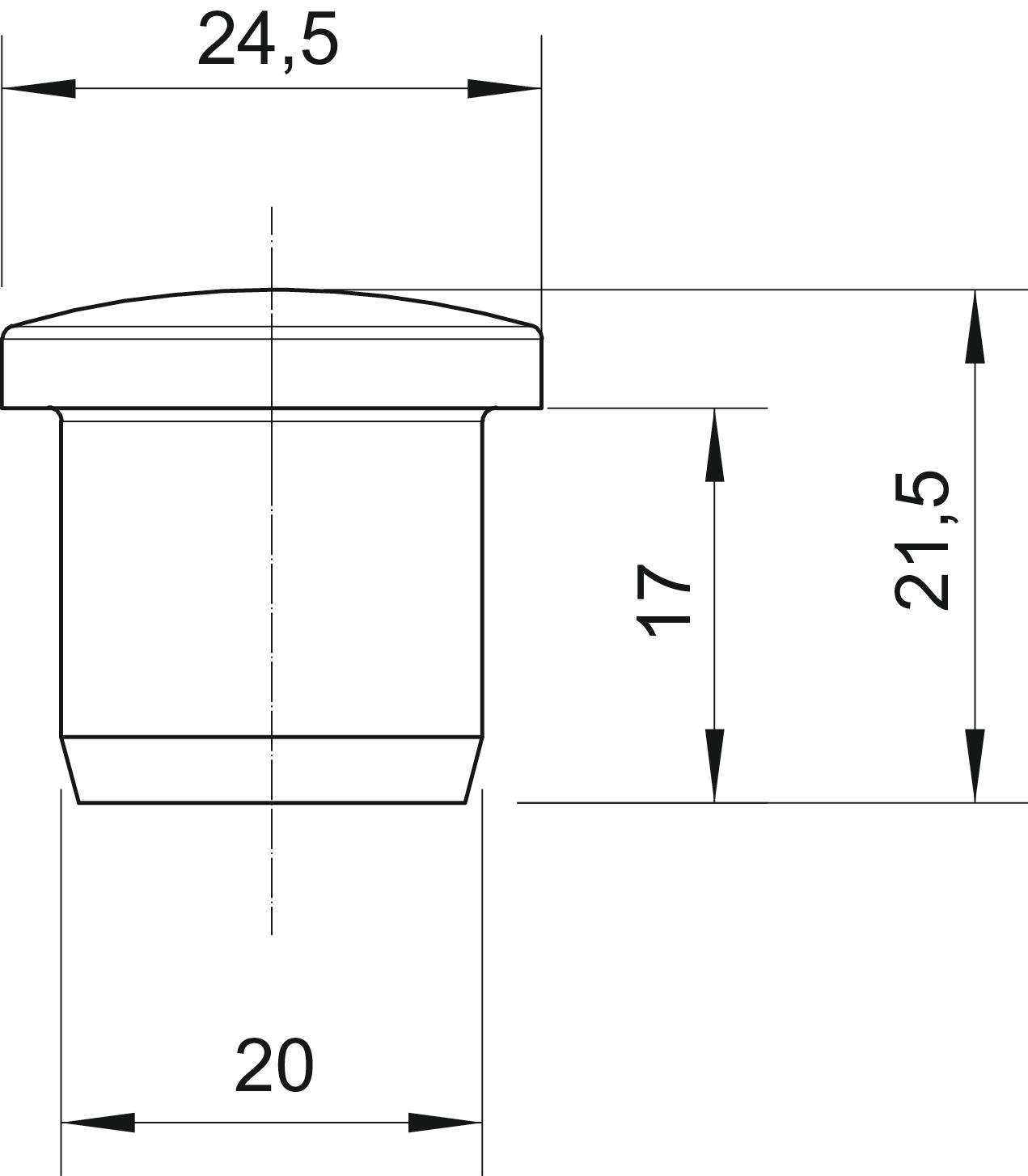

Dimension D1	20 mm
Dimension D2	24,5 mm

Dimension H	21,5 mm
Dimension L	17 mm

All types

Types	Suitable for metric thread dimension	Screw for PG thread dimension	Item no.	Quantity	SSU
107VS VM 5 PA	12	9	2029511	piece	50 piece
107VS VM 9 PA	16	13.5	2029514	piece	50 piece
107VS VM 12 PA	20	16	2029517	piece	50 piece
107VS VM 16 PA	25	21	2029520	piece	50 piece
107VS VM 20 PA	32	29	2029523	piece	25 piece
107VS VM 27 PA	40	36	2029529	piece	10 piece
107VS VM 35 PA	50	42	2029533	piece	5 piece
