- Product description
-
Product description

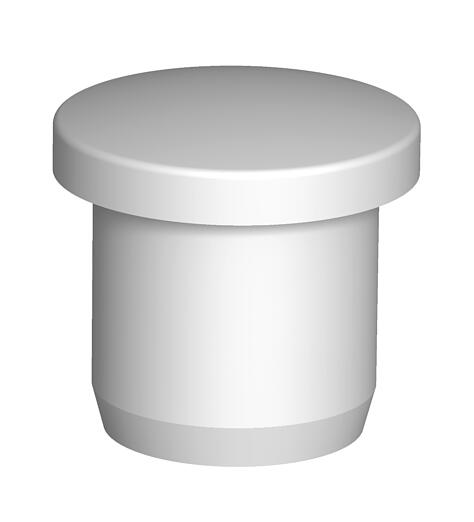

Screw plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
- Technical data
-
Technical data

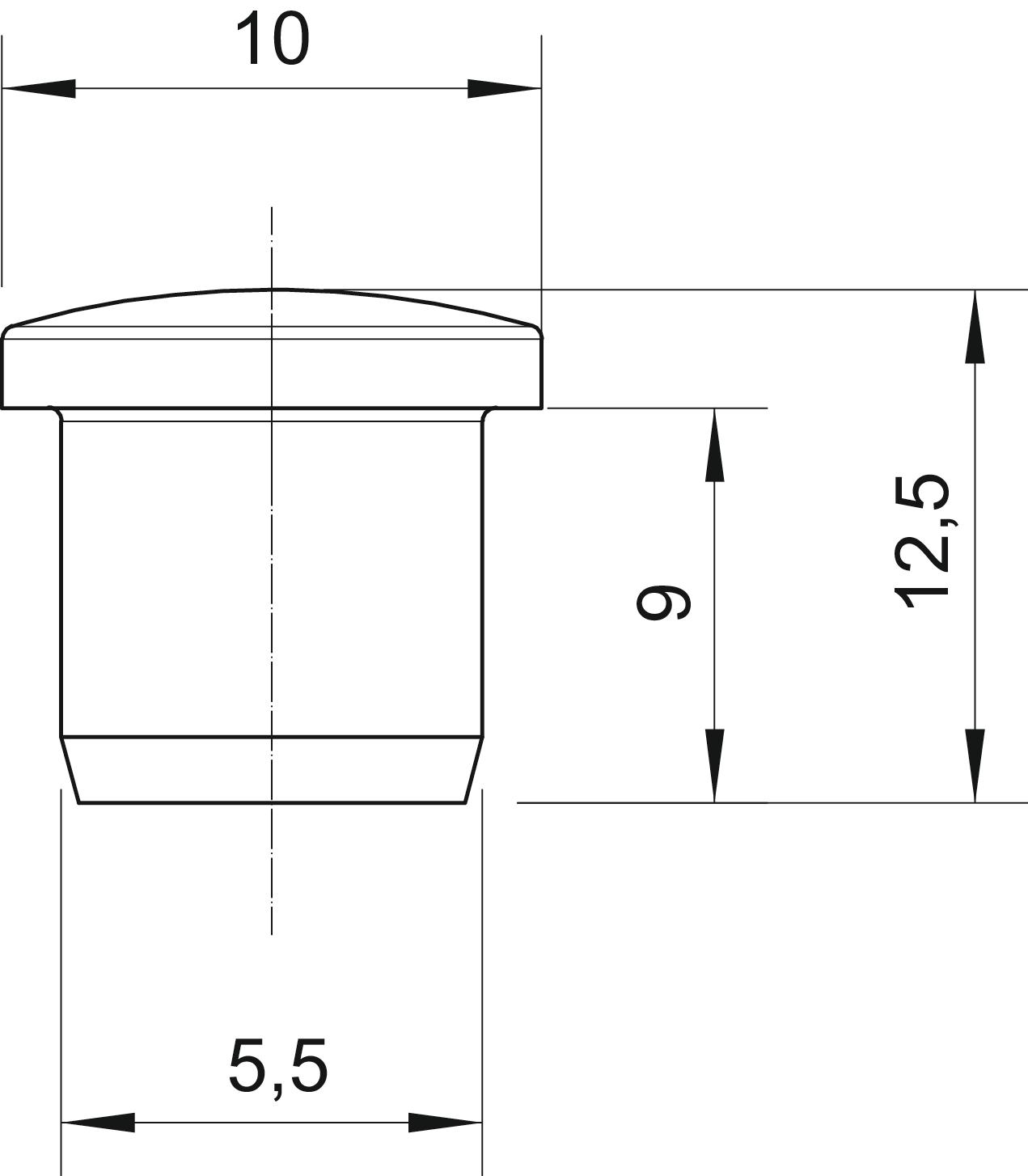

Colour Light grey; RAL 7035 Dimension 5,5mm Dimension D1 5,5 mm Dimension D2 10 mm Dimension H 12,5 mm Dimension L 9 mm External diameter 10 mm Inner diameter 5,5 mm Material Polyamide Screw for PG thread dimension 9 Size M12 / Pg9 Suitable for metric thread dimension 12 Version for Miscellaneous - All types
- Downloads
-
Data sheet 107VS VM 5 PA / 2029511 , 0.14MB , pdfREACH Declaration of conformity 107VS VM 5 PA / 2029511 , 0.12MB , pdfRoHS Declaration of conformity 107VS VM 5 PA / 2029511 , 0.12MB , pdf
