Screw-in spacer clip, universal 2 | M6 | 49 | 55 | Steel | Electrogalvanized
morepic-1 morepic-2

Screw-in spacer clip, universal

Item no. 1383426 | EAN 4012195121756

M6 mm
Steel
Electrogalvanized
Product description

Product description

With M6 thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M6 x 15
Clamping range D, max. 55 mm
Clamping range D, min. 49 mm
Dimension 49-55mm

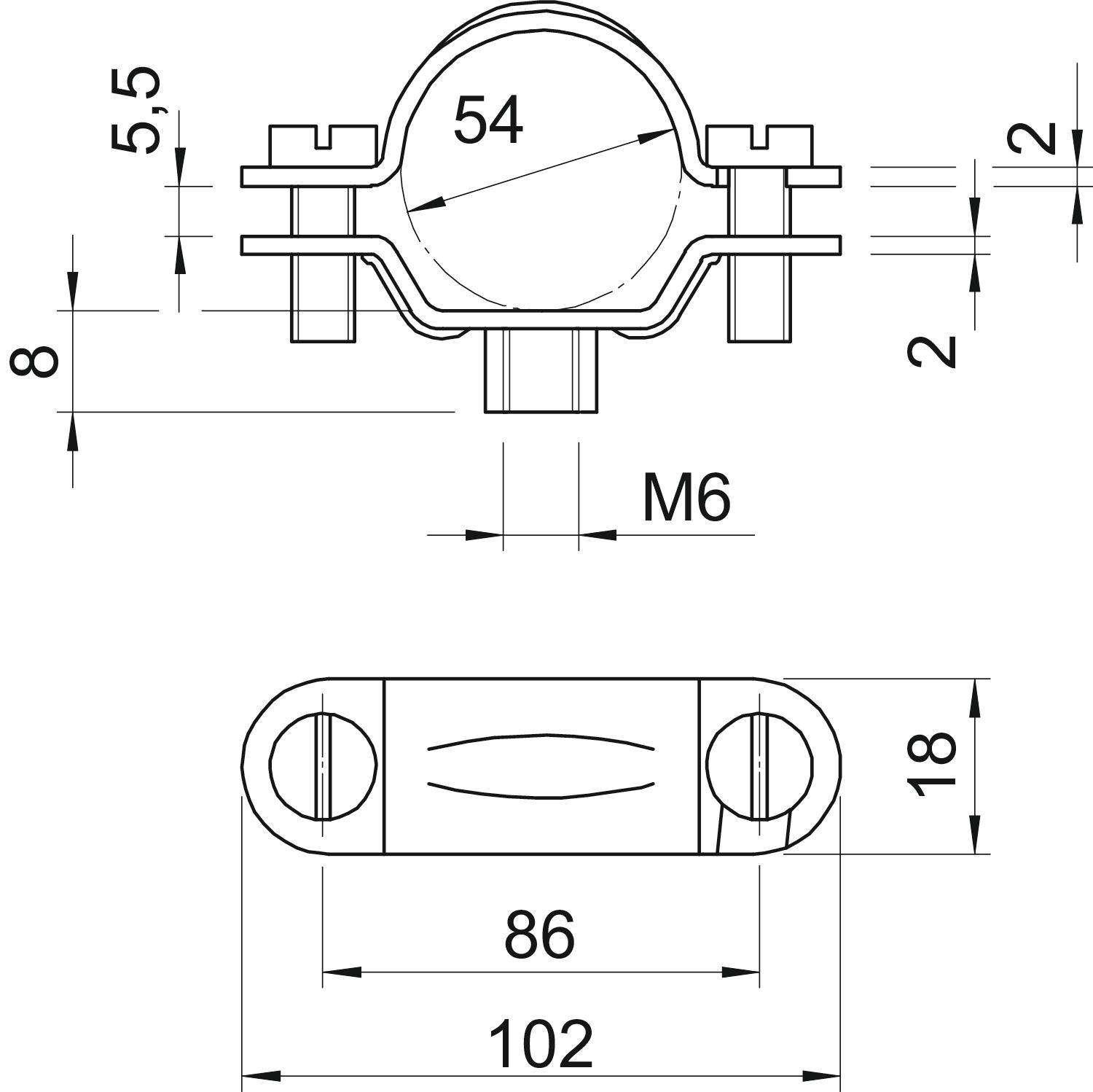

Dimension A 102 mm
Dimension b 18 mm
Dimension B 86 mm
Dimension D 54 mm
Dimension d min. 54 mm
Dimension H 8 mm
Dimension L 102 mm
Dimension t1 (mm) 2
Dimension t2 (mm) 2
Dimension x 5,5 mm
Fastening type Screw hole
Halogen-free no
Hole size M6 mm
Length 102 mm
Material Steel
Material thickness 2 mm
Nominal diameter 54 mm
Plastic-covered no
Size M50
Surface Electrogalvanized
UV-resistant yes
Version for Closed
Width 18 mm
All types

All types

Types Material thickness Hole size Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
2900 M6 13-16 G 1.5 mm M6 mm 13.5 mm 16 mm Steel Electrogalvanized 1383094
50 piece
2900 M6 16-19 G 1.5 mm M6 mm 16.5 mm 19 mm Steel Electrogalvanized 1383116
50 piece
2900 M6 18-21 G 1.5 mm M6 mm 18 mm 21 mm Steel Electrogalvanized 1383132
50 piece
2900 M6 19-23 G 1.5 mm M6 mm 19 mm 23 mm Steel Electrogalvanized 1383167
50 piece
2900 M6 24-29 G 1.5 mm M6 mm 24 mm 29 mm Steel Electrogalvanized 1383213
50 piece
2900 M6 30-34 G 2 mm M6 mm 30 mm 34 mm Steel Electrogalvanized 1383299
50 piece
2900 M6 33-38 G 2 mm M6 mm 33 mm 38 mm Steel Electrogalvanized 1383310
25 piece
2900 M6 43-48 G 2 mm M6 mm 43 mm 48 mm Steel Electrogalvanized 1383361
20 piece
2900 M6 39-42 G 2 mm M6 mm 39 mm 42 mm Steel Electrogalvanized 1383418
25 piece
2900 M6 49-55 G 2 mm M6 mm 49 mm 55 mm Steel Electrogalvanized 1383426
20 piece
2900 M6 54-60 G 2 mm M6 mm 54 mm 60 mm Steel Electrogalvanized 1383485
20 piece
2900 M6 61-64 G 2 mm M6 mm 61 mm 64 mm Steel Electrogalvanized 1383507
20 piece
