Screw-in spacer clip, universal 2 | M6 | 39 | 42 | Steel | Electrogalvanized

morepic-1

morepic-2

Screw-in spacer clip, universal

Item no. 1383418 | EAN 4012195569237

Item no. / Types

Material thickness

Hole size	M6 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Electrogalvanized

Product description

Product description

With M6 thread.

Technical data

Technical data

Bolt	M5 x 16
Clamping range D, max.	42 mm
Clamping range D, min.	39 mm
Dimension	39-42mm
Dimension A	79 mm
Dimension B	64 mm
Dimension b	16 mm
Dimension D	40 mm
Dimension H	6,5 mm
Dimension L	79 mm
Dimension t1 (mm)	2
Dimension t2 (mm)	2
Dimension x	5 mm

Fastening type	Screw hole
Halogen-free	no
Hole size	M6 mm
Length	79 mm
Material	Steel
Material thickness	2 mm
Nominal diameter	40 mm
Plastic-covered	no
Size	M40
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed
Width	16 mm

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2900 M6 13-16 G	1.5 mm	M6 mm	13.5 mm	16 mm	Steel	Electrogalvanized	1383094	piece	50 piece
2900 M6 16-19 G	1.5 mm	M6 mm	16.5 mm	19 mm	Steel	Electrogalvanized	1383116	piece	50 piece
2900 M6 18-21 G	1.5 mm	M6 mm	18 mm	21 mm	Steel	Electrogalvanized	1383132	piece	50 piece
2900 M6 19-23 G	1.5 mm	M6 mm	19 mm	23 mm	Steel	Electrogalvanized	1383167	piece	50 piece
2900 M6 24-29 G	1.5 mm	M6 mm	24 mm	29 mm	Steel	Electrogalvanized	1383213	piece	50 piece
2900 M6 30-34 G	2 mm	M6 mm	30 mm	34 mm	Steel	Electrogalvanized	1383299	piece	50 piece
2900 M6 33-38 G	2 mm	M6 mm	33 mm	38 mm	Steel	Electrogalvanized	1383310	piece	25 piece
2900 M6 43-48 G	2 mm	M6 mm	43 mm	48 mm	Steel	Electrogalvanized	1383361	piece	20 piece
2900 M6 39-42 G	2 mm	M6 mm	39 mm	42 mm	Steel	Electrogalvanized	1383418	piece	25 piece
2900 M6 49-55 G	2 mm	M6 mm	49 mm	55 mm	Steel	Electrogalvanized	1383426	piece	20 piece
2900 M6 54-60 G	2 mm	M6 mm	54 mm	60 mm	Steel	Electrogalvanized	1383485	piece	20 piece
2900 M6 61-64 G	2 mm	M6 mm	61 mm	64 mm	Steel	Electrogalvanized	1383507	piece	20 piece

Downloads

Data sheet 2900 M6 39-42 G / 1383418 , 0.20MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 2900 M6 39-42 G / 1383418 , 0.13MB , pdf

REACH Declaration of conformity 2900 M6 39-42 G / 1383418 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2900 M6 39-42 G / 1383418 , 0.13MB , pdf

Download

Product graphic 2900 M6 39-42 G / 1383418, 150.90 kB, jpg

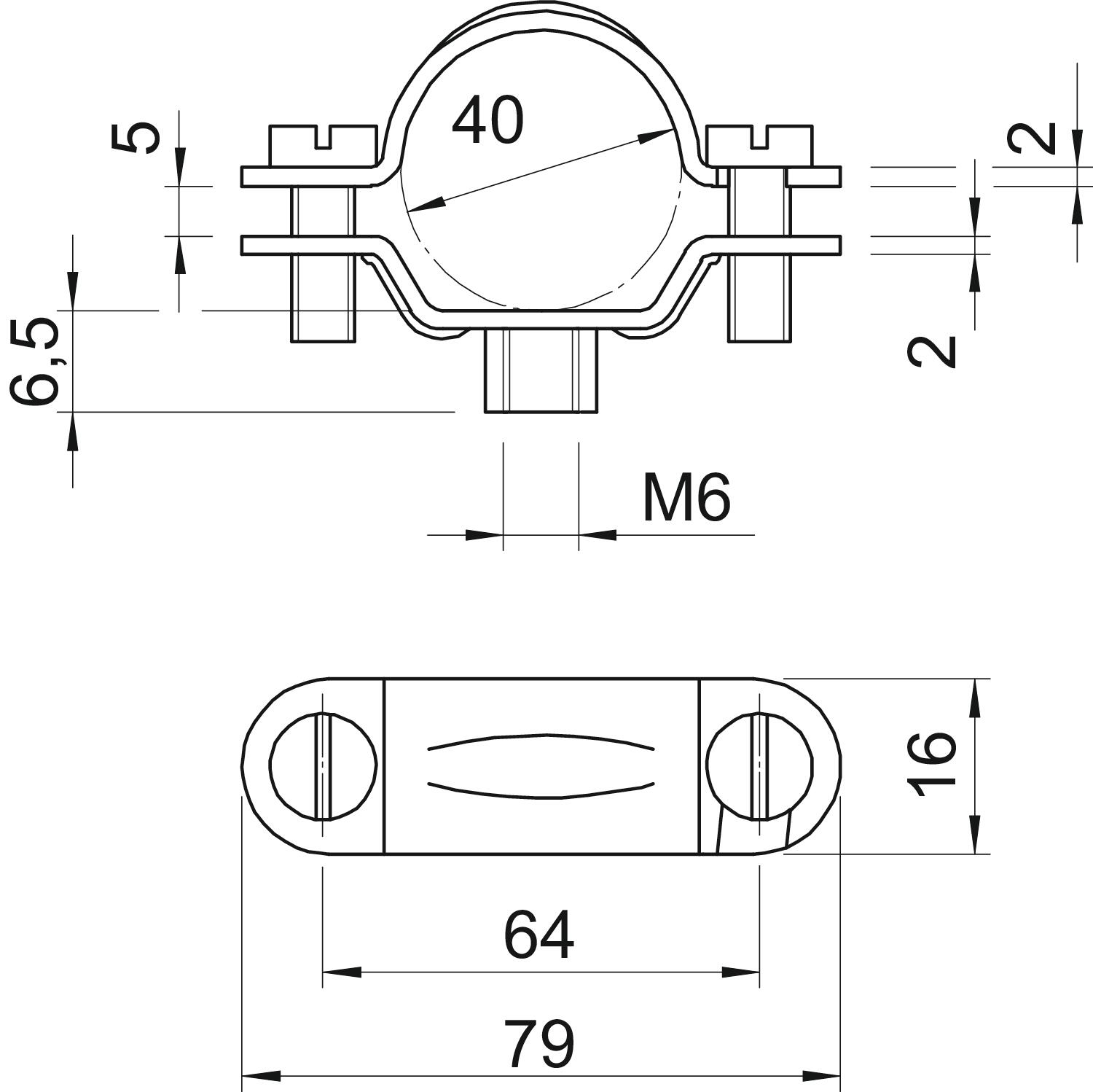

Scale drawing 2900 M6 39-42 G / 1383418, 93.95 kB, jpg

2900 M6 39-42 G / 1383418

1383418_KSTP1.stp, 306.23 kB
