Screw-in spacer clip, heavy-duty version M8 3 | M8 | 83 | 88 | Steel | Hot-dip galvanised

Screw-in spacer clip, heavy-duty version M8

Item no. 1387170 | EAN 4012195124153

Item no. / Types

Material thickness

Hole size	M8 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Can be screwed onto M8 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.

Technical data

Technical data

Bolt	M6 x 18
Clamping range D, max.	88 mm
Clamping range D, min.	83 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,475 kg CO₂e / 1 Piece
Dimension	3"

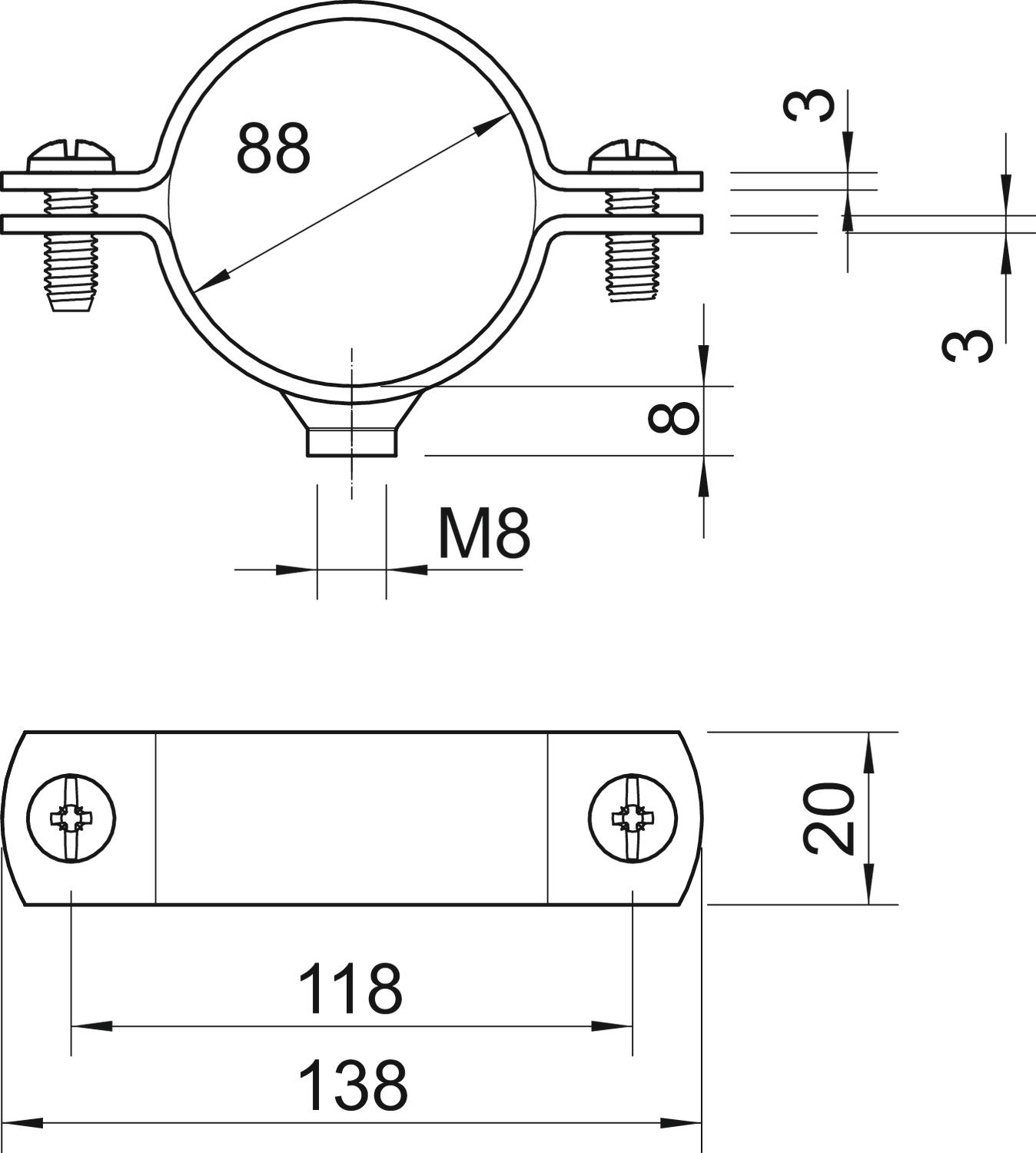

Dimension A	138 mm
Dimension B	118 mm
Dimension D	88 mm
Dimension d min.	88 mm
Dimension t	3 mm
Dimension t1 (mm)	3
Dimension x	5 mm
Fastening type	Screw hole
For diameter	88
for pipe diameter	M95

Halogen-free	no
Hole size	M8 mm
Length	138 mm
Material	Steel
Material thickness	3 mm
Nominal diameter	88 mm
Plastic-covered	no
Size	3"
Suitable in fire protection area	no
Surface	Hot-dip galvanised
Thread	M8
UV-resistant	yes
Version for	Closed
Width	20 mm

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2900WM8 17 FT	2 mm	M8 mm	16 mm	17 mm	Steel	Hot-dip galvanised	1387014	piece	25 piece
2900WM8 21.5 FT	2 mm	M8 mm	19 mm	21.5 mm	Steel	Hot-dip galvanised	1387030	piece	25 piece
2900WM8 27 FT	2 mm	M8 mm	24.5 mm	27 mm	Steel	Hot-dip galvanised	1387057	piece	25 piece
2900WM8 33.5 FT	2 mm	M8 mm	30.5 mm	33.5 mm	Steel	Hot-dip galvanised	1387065	piece	25 piece
2900WM8 42.5 FT	2 mm	M8 mm	39.5 mm	42.5 mm	Steel	Hot-dip galvanised	1387081	piece	25 piece
2900WM8 48.5 FT	2.5 mm	M8 mm	45.5 mm	48.5 mm	Steel	Hot-dip galvanised	1387111	piece	25 piece
2900WM8 60 FT	2.5 mm	M8 mm	56 mm	60 mm	Steel	Hot-dip galvanised	1387138	piece	15 piece
2900WM8 75.5 FT	3 mm	M8 mm	71.5 mm	75.5 mm	Steel	Hot-dip galvanised	1387154	piece	50 piece
2900WM8 88 FT	3 mm	M8 mm	83 mm	88 mm	Steel	Hot-dip galvanised	1387170	piece	50 piece
