Screw-in spacer clip, heavy-duty version M8

Item no. 1387057 | EAN 4012195123798

M8 mm
Steel
Hot-dip galvanised
Product description

Product description

Can be screwed onto M8 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
  • Communautés Européennes, EC declaration of conformity according to EC directives

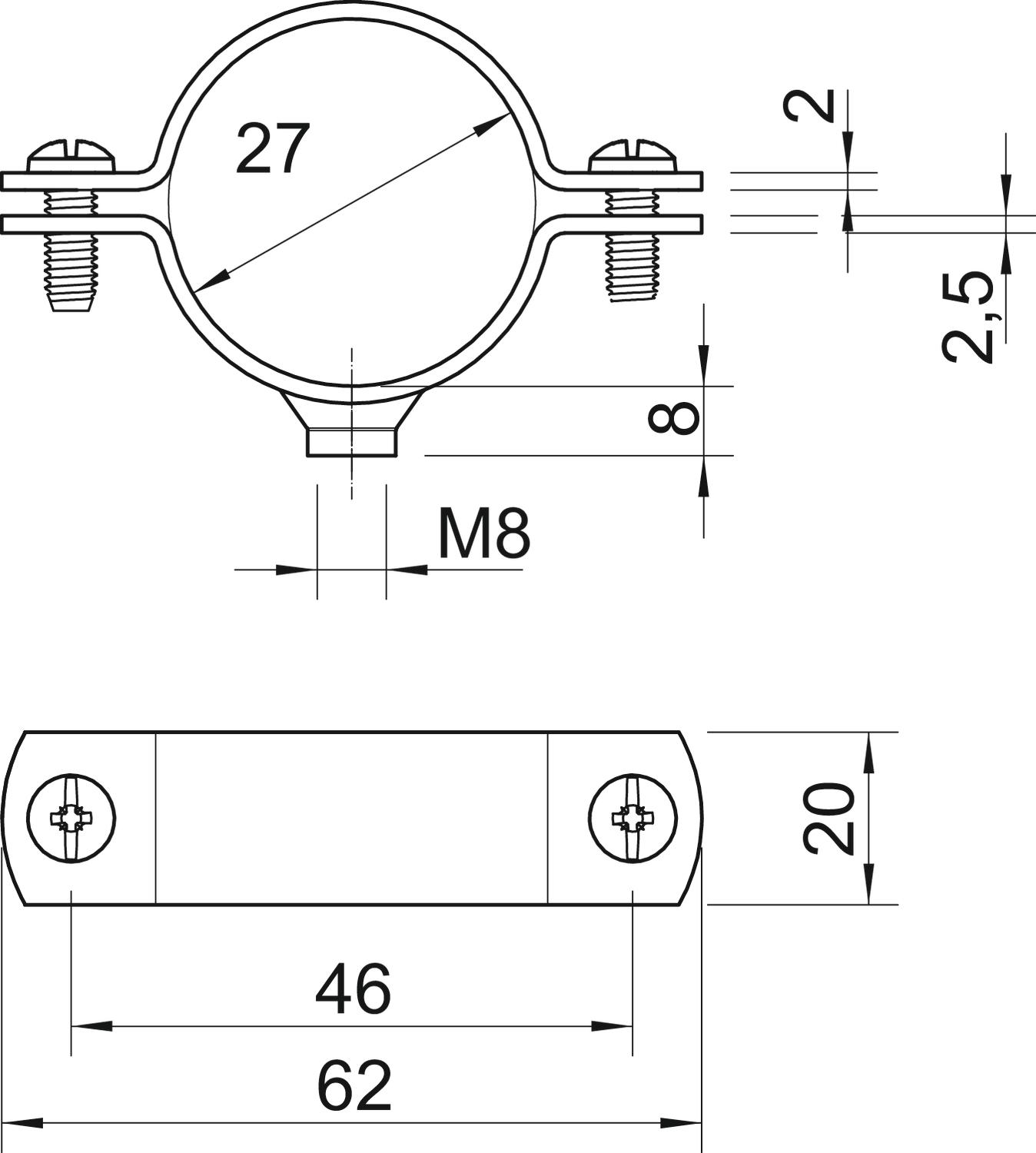

Technical data

Technical data

Bolt M6 x 16
Clamping range D, max. 27 mm
Clamping range D, min. 24,5 mm
Dimension 3/4"
Dimension A 62 mm
Dimension B 46 mm
Dimension D 27 mm
Dimension d min. 27 mm
Dimension t 2 mm
Dimension t1 (mm) 2,5
Dimension x 2,5 mm
Fastening type Screw hole
For diameter 27
for pipe diameter M25
Halogen-free no
Hole size M8 mm
Length 62 mm
Material Steel
Material thickness 2 mm
Nominal diameter 27 mm
Plastic-covered no
Size 3/4"
Suitable in fire protection area no
Surface Hot-dip galvanised
Thread M8
UV-resistant yes
Version for Closed
Width 20 mm
All types

All types

Types Material thickness Hole size Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
2900WM8 17 FT 2 mm M8 mm 16 mm 17 mm Steel Hot-dip galvanised 1387014
25 piece
2900WM8 21.5 FT 2 mm M8 mm 19 mm 21.5 mm Steel Hot-dip galvanised 1387030
25 piece
2900WM8 27 FT 2 mm M8 mm 24.5 mm 27 mm Steel Hot-dip galvanised 1387057
25 piece
2900WM8 33.5 FT 2 mm M8 mm 30.5 mm 33.5 mm Steel Hot-dip galvanised 1387065
25 piece
2900WM8 42.5 FT 2 mm M8 mm 39.5 mm 42.5 mm Steel Hot-dip galvanised 1387081
25 piece
2900WM8 48.5 FT 2.5 mm M8 mm 45.5 mm 48.5 mm Steel Hot-dip galvanised 1387111
25 piece
2900WM8 60 FT 2.5 mm M8 mm 56 mm 60 mm Steel Hot-dip galvanised 1387138
15 piece
2900WM8 75.5 FT 3 mm M8 mm 71.5 mm 75.5 mm Steel Hot-dip galvanised 1387154
50 piece
2900WM8 88 FT 3 mm M8 mm 83 mm 88 mm Steel Hot-dip galvanised 1387170
50 piece
