Screw-in spacer clip, heavy-duty version M6
Item no. 1385003 | EAN 4012195122838
- Product description
-
Product descriptionCan be screwed onto M6 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
-
- Technical data
-
Technical data

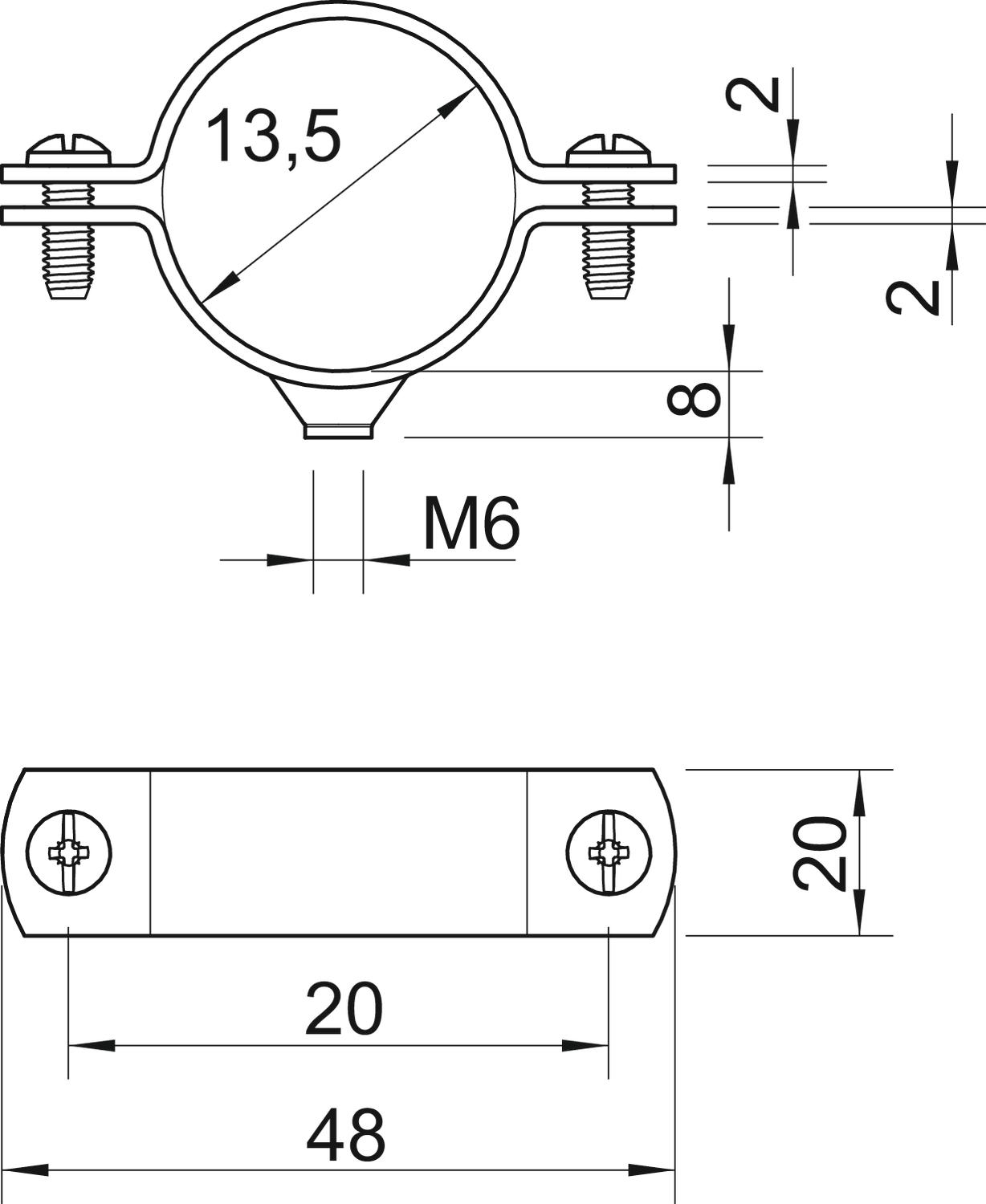

Bolt M6 x 16 Clamping range D, max. 13,5 mm Clamping range D, min. 12,5 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,088 kg CO₂e / 1 Piece Dimension 1/4" Dimension A 48 mm Dimension B 32 mm Dimension D 13,5 mm Dimension d min. 13,5 mm Dimension t 2 mm Dimension t1 (mm) 2 Dimension x 1 mm Fastening type Screw hole For diameter 13,5 Halogen-free no Hole size M6 mm Length 48 mm Material Steel Material thickness 2 mm Nominal diameter 13,5 mm Plastic-covered no Size 1/4" Suitable in fire protection area no Surface Hot-dip galvanised Thread M6 UV-resistant yes Version for Closed Width 20 mm - All types
-
All types
- Downloads
-
Data sheet 2900WM6 13.5 FT / 1385003 , 0.34MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2900WM6 13.5 FT / 1385003 , 0.13MB , pdf
