Screw-in spacer clip, heavy-duty version M10

Item no. 1388061 | EAN 4012195124573

M10 mm
Steel
Hot-dip galvanised
Product description

Product description

Can be screwed onto M10 thread. Size 27 FT is suitable for M25. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
  • Communautés Européennes, EC declaration of conformity according to EC directives

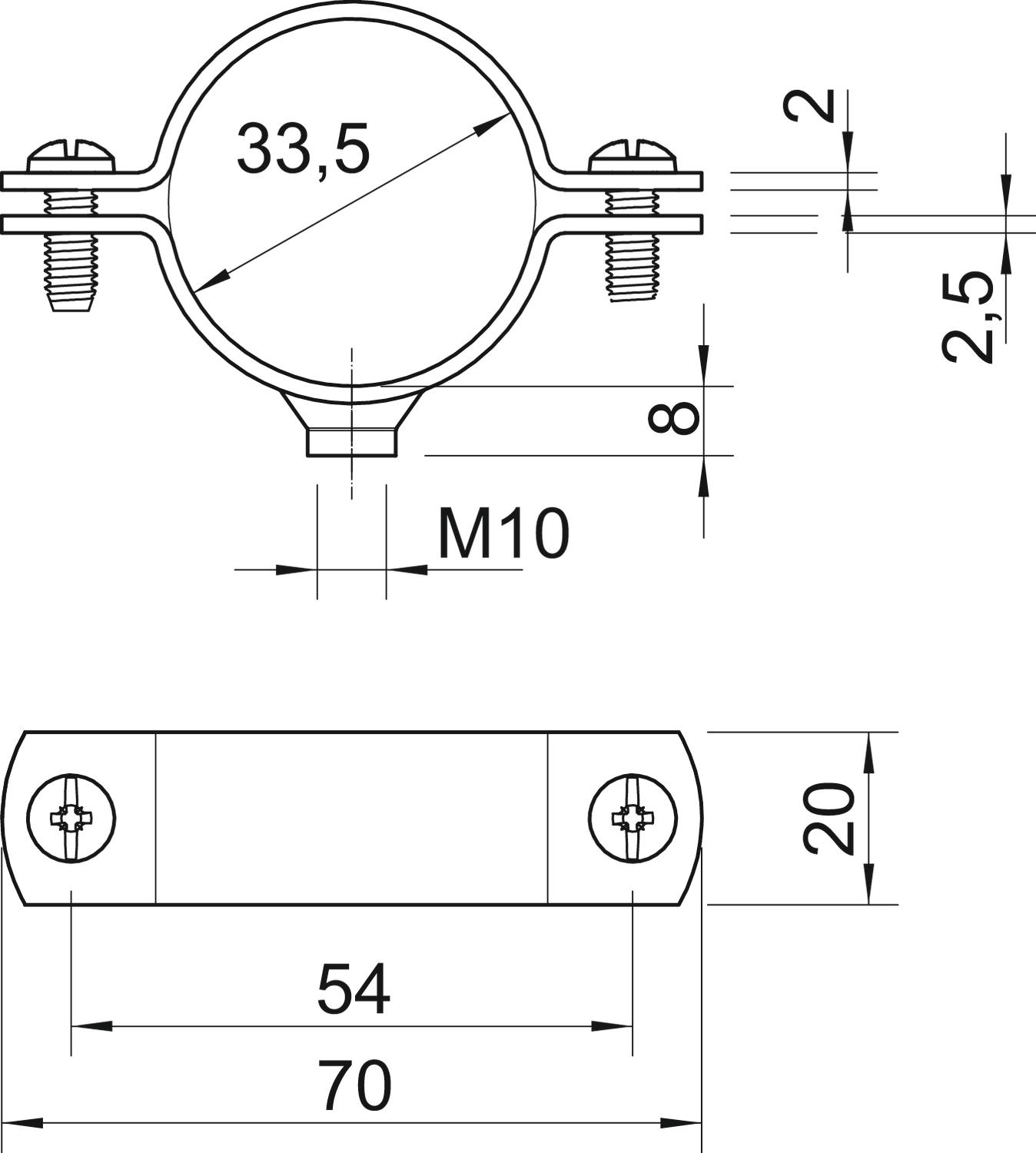

Technical data

Technical data

Bolt M6 x 20
Clamping range D, max. 33,5 mm
Clamping range D, min. 30,5 mm
Dimension 1"
Dimension A 70 mm
Dimension B 54 mm
Dimension L 70 mm
Dimension t 2 mm
Dimension t1 (mm) 2,5
Dimension x 3 mm
Fastening type Screw hole
For diameter 33,5
for pipe diameter M32
Halogen-free no
Hole size M10 mm
Length 70 mm
Material Steel
Nominal diameter 33,5 mm
Plastic-covered no
Size 1"
Suitable in fire protection area no
Surface Hot-dip galvanised
Thread M10
UV-resistant yes
Version for Closed
Width 20 mm
All types

All types

Types Hole size Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
2900WM10 21.5 FT M10 mm 19 mm 21.5 mm Steel Hot-dip galvanised 1388037
25 piece
2900WM10 27 FT M10 mm 24.5 mm 27 mm Steel Hot-dip galvanised 1388053
25 piece
2900WM10 33.5 FT M10 mm 30.5 mm 33.5 mm Steel Hot-dip galvanised 1388061
25 piece
2900WM10 48.5 FT M10 mm 45.5 mm 48.5 mm Steel Hot-dip galvanised 1388118
25 piece
2900WM10 60 FT M10 mm 56 mm 60 mm Steel Hot-dip galvanised 1388134
15 piece
