Screw-in spacer clip 2 | M6 | 12 | 16 | Steel | Electrogalvanized

morepic-1

morepic-2

Screw-in spacer clip

Item no. 1366165 | EAN 4012195117971

Item no. / Types

Material thickness	2 mm

Hole size	M6 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Electrogalvanized

Product description

Product description

With M6 thread.

Technical data

Technical data

Bolt	M5 x 12
Clamping range D, max.	16 mm
Clamping range D, min.	12 mm
Dimension	12-16mm
Dimension A	47 mm
Dimension B	32 mm
Dimension D	16 mm
Dimension d min.	16 mm
Dimension t	2 mm
Fastening type	Screw hole
Halogen-free	no

Hole size	M6 mm
Length	47 mm
Material	Steel
Material thickness	2 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
731 W 12 G	2 mm	M6 mm	8 mm	12 mm	Steel	Electrogalvanized	1366122	piece	50 piece
731 W 16 G	2 mm	M6 mm	12 mm	16 mm	Steel	Electrogalvanized	1366165	piece	50 piece
731 W 20 G	2 mm	M6 mm	16 mm	20 mm	Steel	Electrogalvanized	1366203	piece	50 piece
731 W 25 G	2 mm	M6 mm	20 mm	25 mm	Steel	Electrogalvanized	1366254	piece	50 piece
731 W 30 G	2 mm	M6 mm	25 mm	30 mm	Steel	Electrogalvanized	1366300	piece	25 piece
731 W 35 G	2 mm	M6 mm	30 mm	35 mm	Steel	Electrogalvanized	1366351	piece	25 piece

Downloads

Data sheet 731 W 16 G / 1366165 , 0.19MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 731 W 16 G / 1366165 , 0.13MB , pdf

REACH Declaration of conformity 731 W 16 G / 1366165 , 0.12MB , pdf

Download

RoHS Declaration of conformity 731 W 16 G / 1366165 , 0.12MB , pdf

Download

Product graphic 731 W 16 G / 1366165, 151.22 kB, jpg

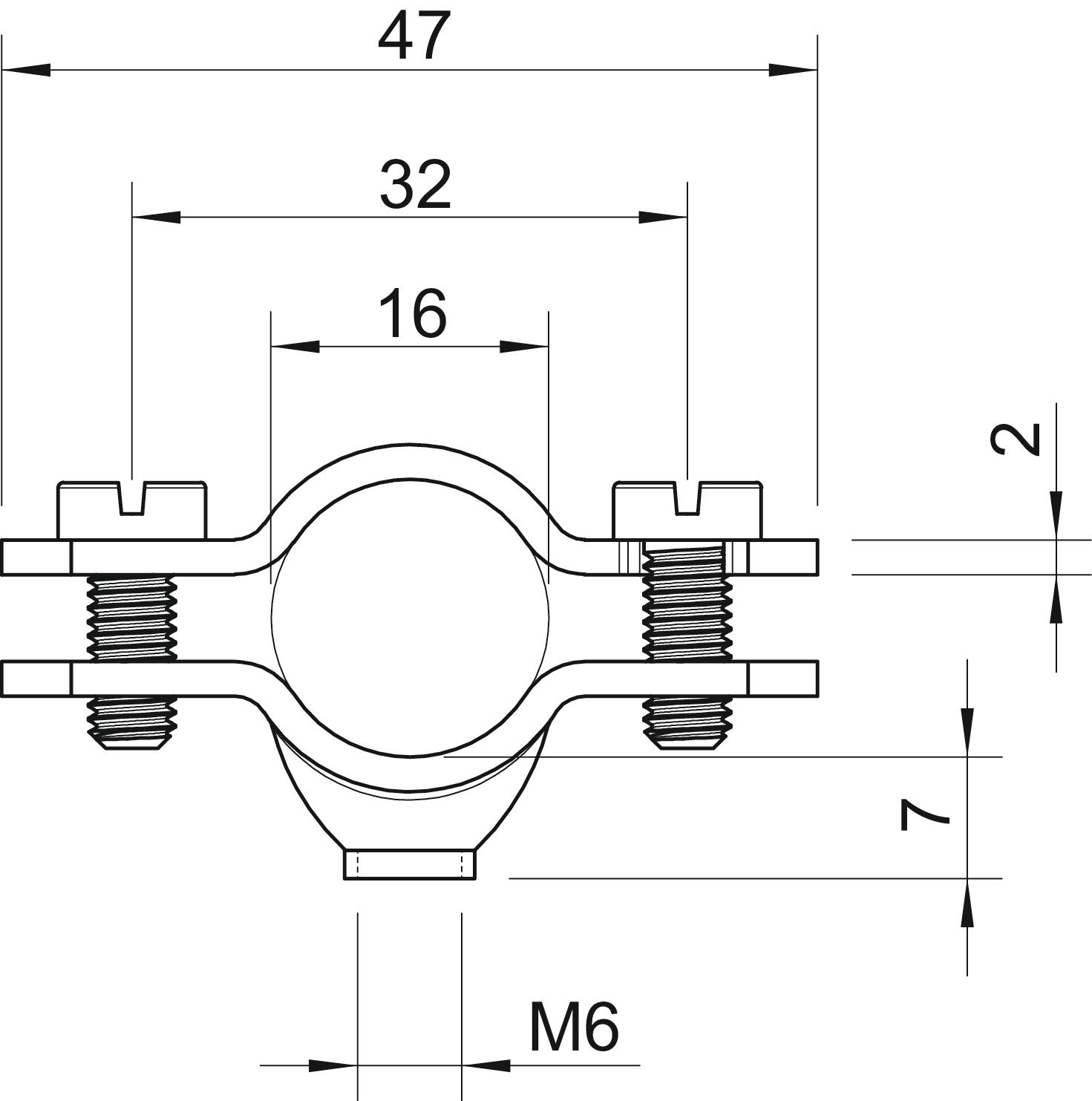

Scale drawing 731 W 16 G / 1366165, 91.37 kB, jpg
