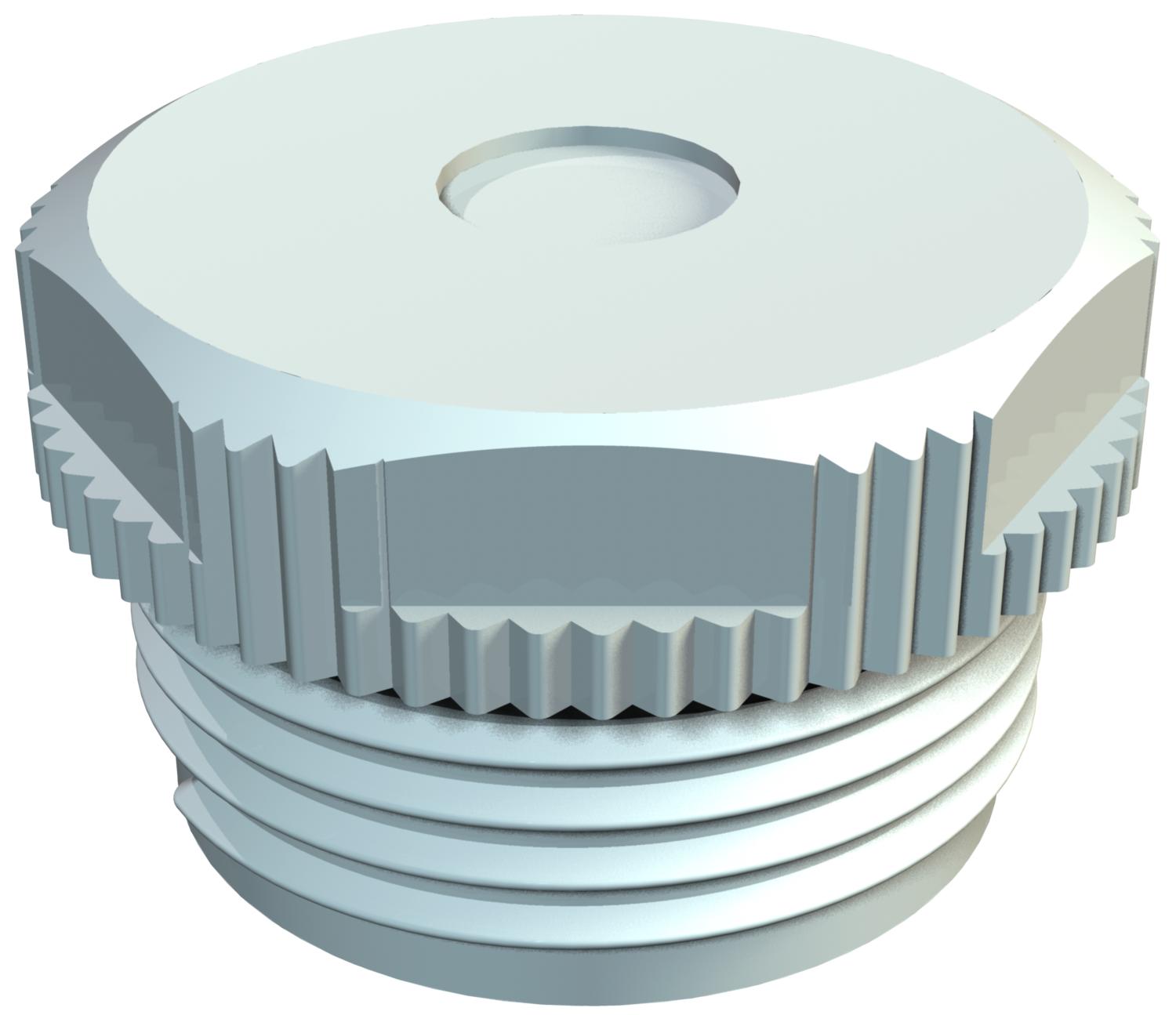

Screw-in nipple, PG thread, with perforation membrane
Item no. 2032503 | EAN 4012195169819
- Product description
-
Product descriptionWith perforation membrane, the opening D is pre-marked, but closed.
Grip seal to screw into PG thread to DIN 40430.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
-
- Technical data
-
Technical data

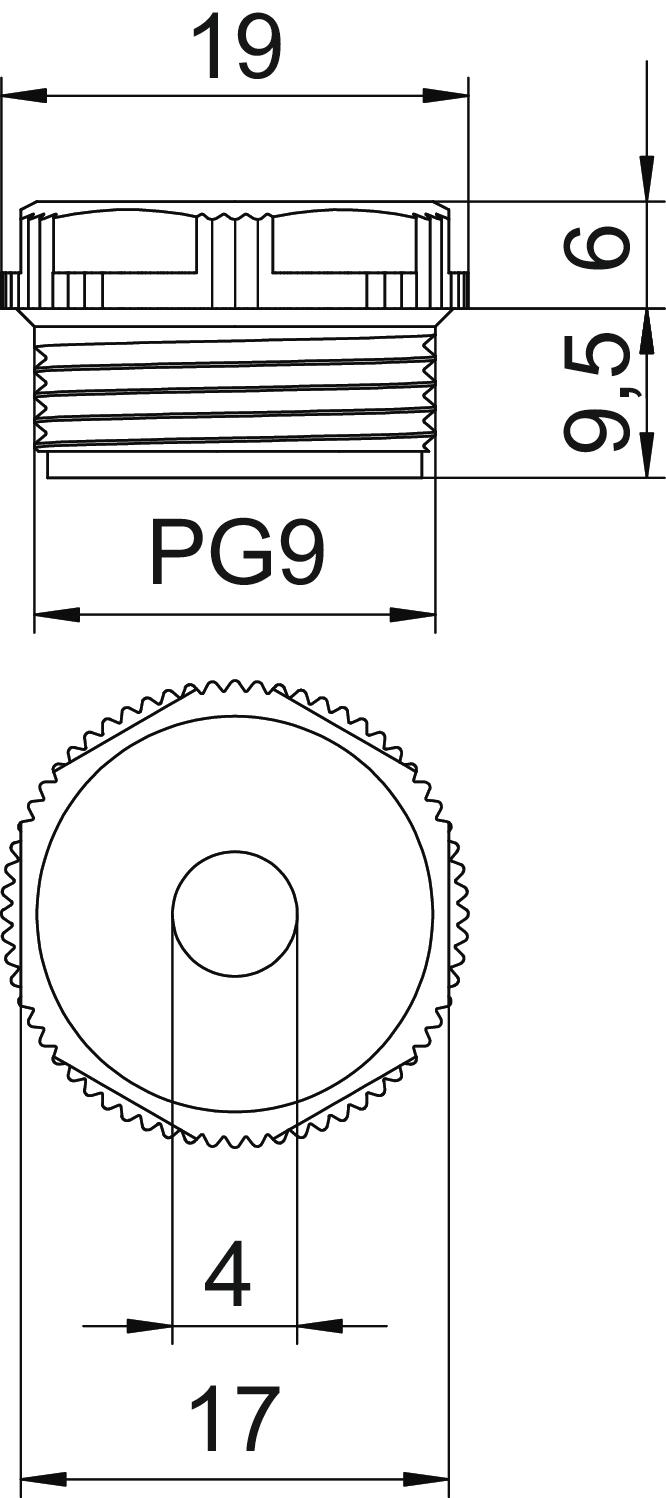

Colour Light grey; RAL 7035 Dimension PG9 Dimension D 4 mm Dimension E 19 mm Dimension L1 9,5 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size Pg 9 Thread length 9,5 mm WAF 17 - All types
- Downloads
-
Data sheet 90 PG 9 DSMB / 2032503 , 0.18MB , pdfEU declaration of conformity 90 PG 9 DSMB / 2032503 , 0.05MB , pdfREACH Declaration of conformity 90 PG 9 DSMB / 2032503 , 0.12MB , pdfRoHS Declaration of conformity 90 PG 9 DSMB / 2032503 , 0.12MB , pdf
