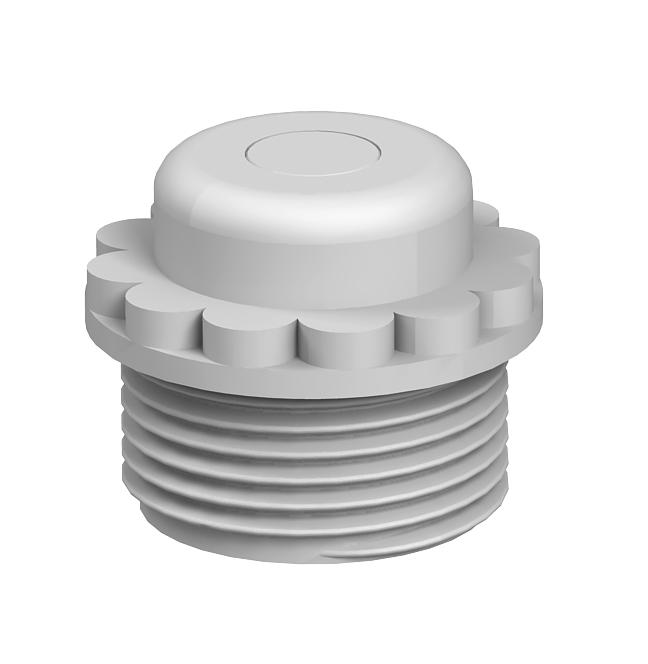

Screw-in nipple, metric thread, with perforation membrane
Item no. 2032382 | EAN 4012195481577
- Product description
-
Product description
With perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
-
- Technical data
-
Technical data

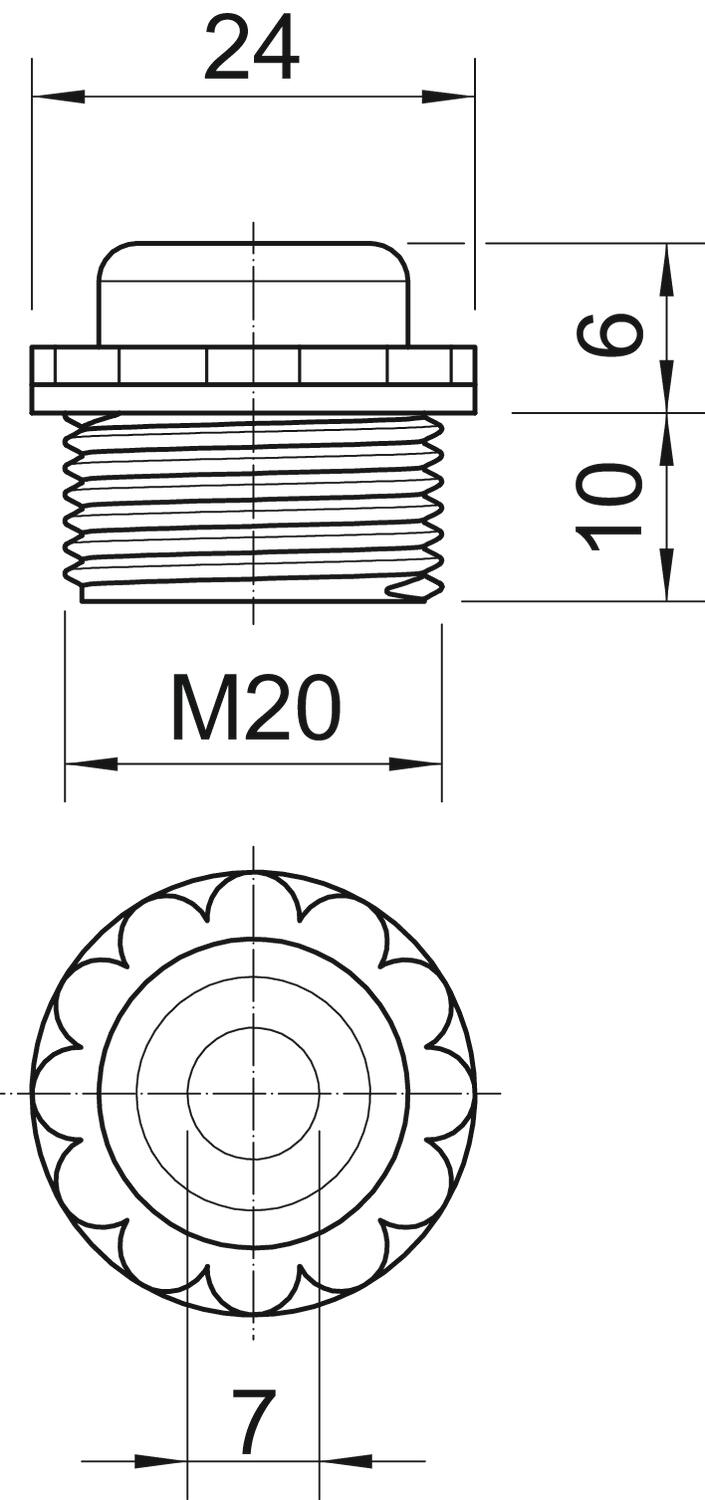

Colour Light grey; RAL 7035 Dimension M20 Dimension D 7 mm Dimension E 24 mm Dimension L1 10 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M20 Thread length 10 mm WAF 21 - All types
- Downloads
-
Data sheet 90 M20 GE / 2032382 , 0.18MB , pdfREACH Declaration of conformity 90 M20 GE / 2032382 , 0.12MB , pdfRoHS Declaration of conformity 90 M20 GE / 2032382 , 0.12MB , pdf
