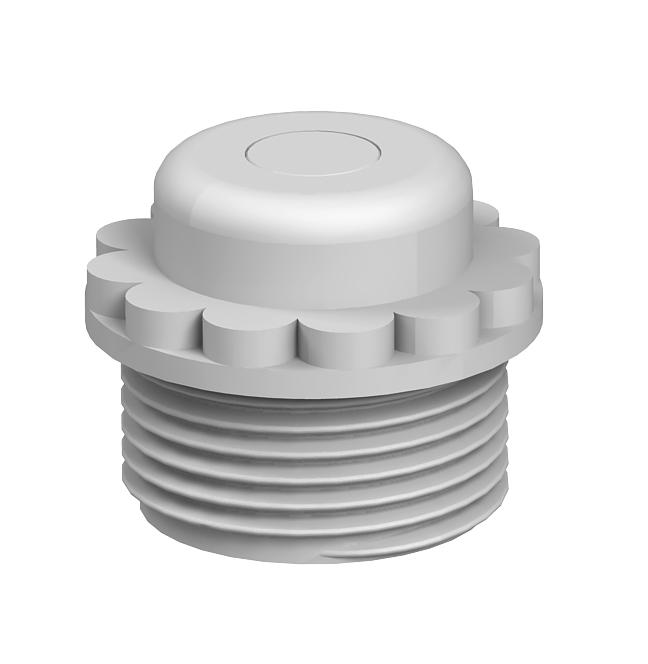

Screw-in nipple, metric thread, with perforation membrane
Item no. 2032378 | EAN 4012195481454
- Product description
-
Product description
With perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
-
- Technical data
-
Technical data

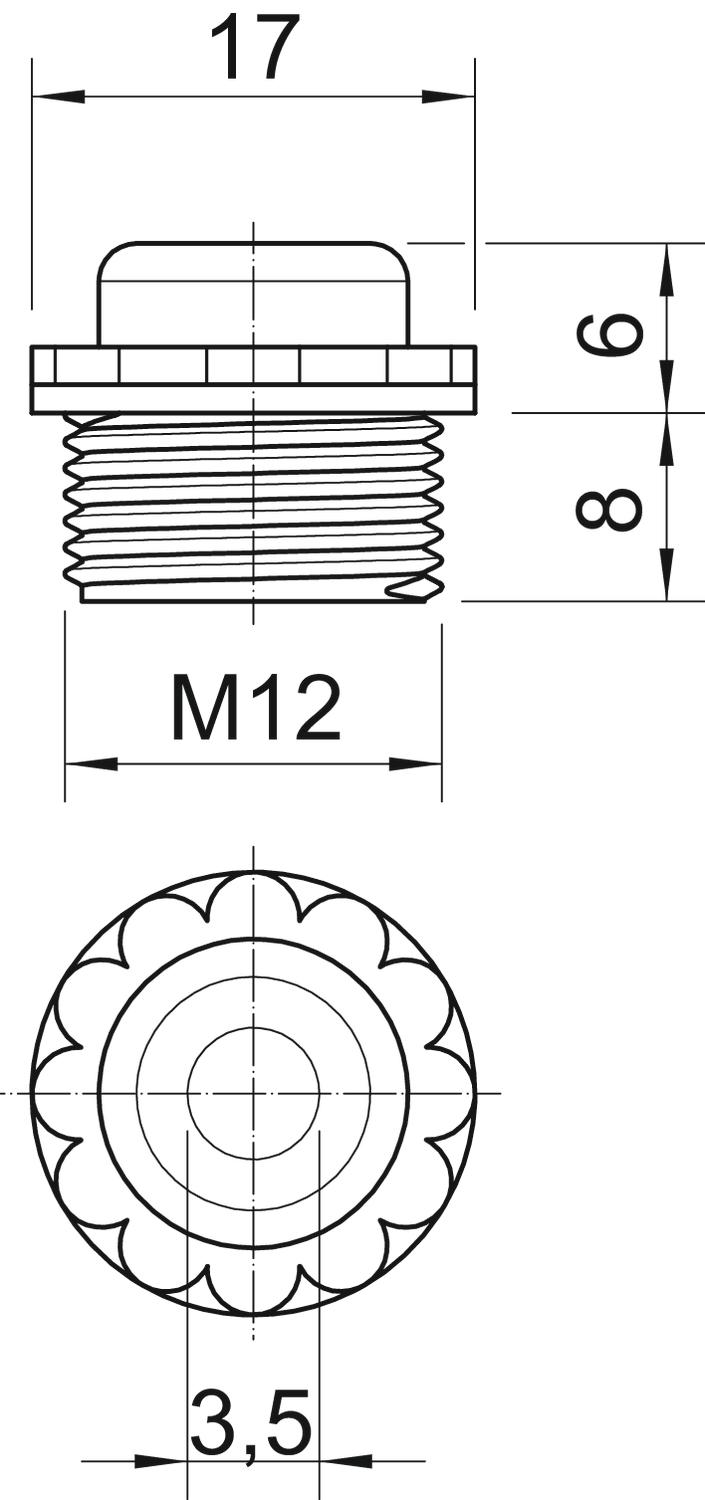

Colour Light grey; RAL 7035 Dimension M12 Dimension D 3,5 mm Dimension E 17 mm Dimension L1 8 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M12 Thread length 8 mm WAF 13 - All types
- Downloads
-
Data sheet 90 M12 GE / 2032378 , 0.19MB , pdfREACH Declaration of conformity 90 M12 GE / 2032378 , 0.12MB , pdfRoHS Declaration of conformity 90 M12 GE / 2032378 , 0.12MB , pdf
