Screw-in nipple, metric thread, with opening
Item no. 2032031 | EAN 4012195477914
- Product description
-
Product description
With open cable entry.
Grip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With open cable entry.
-
- Technical data
-
Technical data

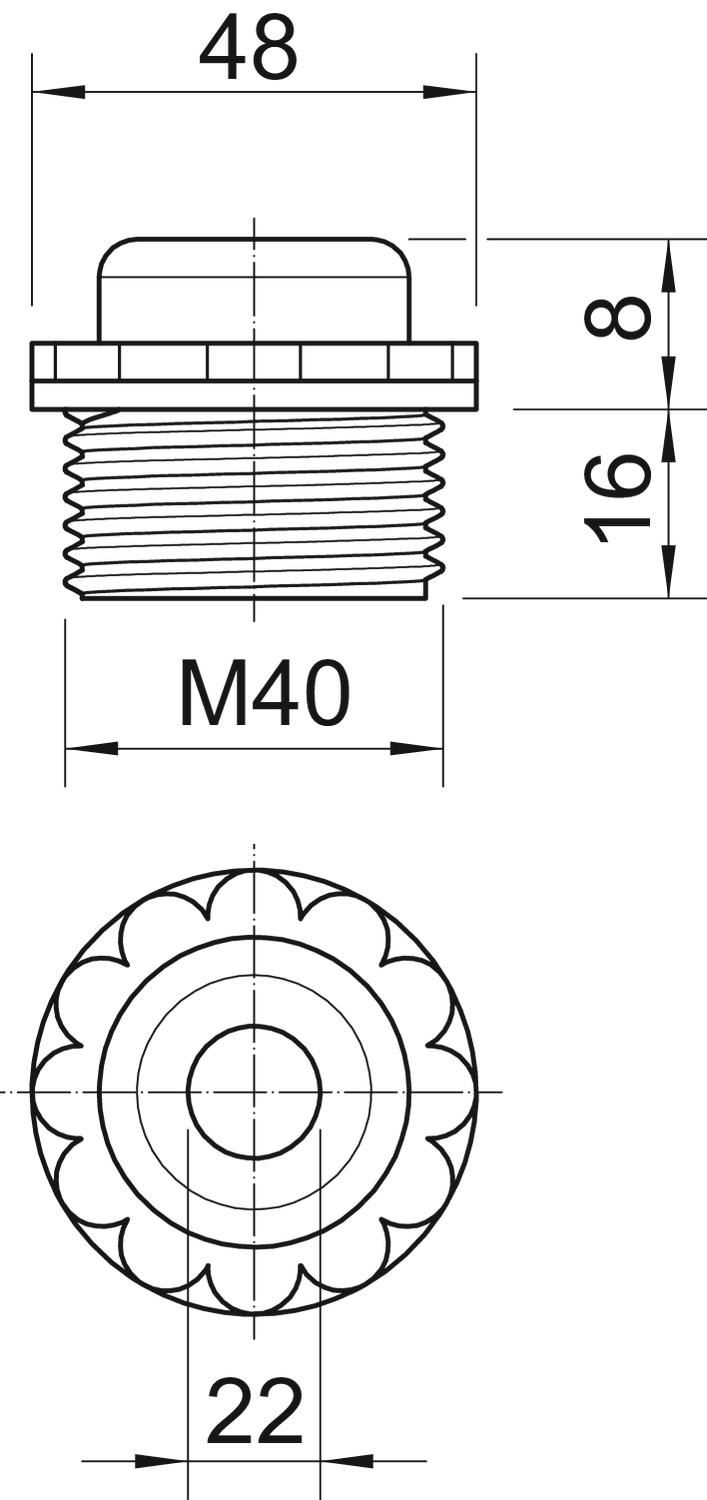

Colour Light grey; RAL 7035 Dimension M40 Dimension D 22 mm Dimension E 48 mm Dimension L1 16 mm Dimension L2 8 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M40 Thread length 16 mm WAF 44 - All types
- Downloads
-
Data sheet 90 M40 OF / 2032031 , 0.18MB , pdfREACH Declaration of conformity 90 M40 OF / 2032031 , 0.12MB , pdfRoHS Declaration of conformity 90 M40 OF / 2032031 , 0.12MB , pdf
