Screw-in nipple, metric thread, with opening
Item no. 2032015 | EAN 4012195477730
- Product description
-
Product description
With open cable entry.
Grip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With open cable entry.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension M20 Halogen-free yes Material Polyethylene Protection rating IP54 Size M20 Thread length 10 mm WAF 21 Dimensions

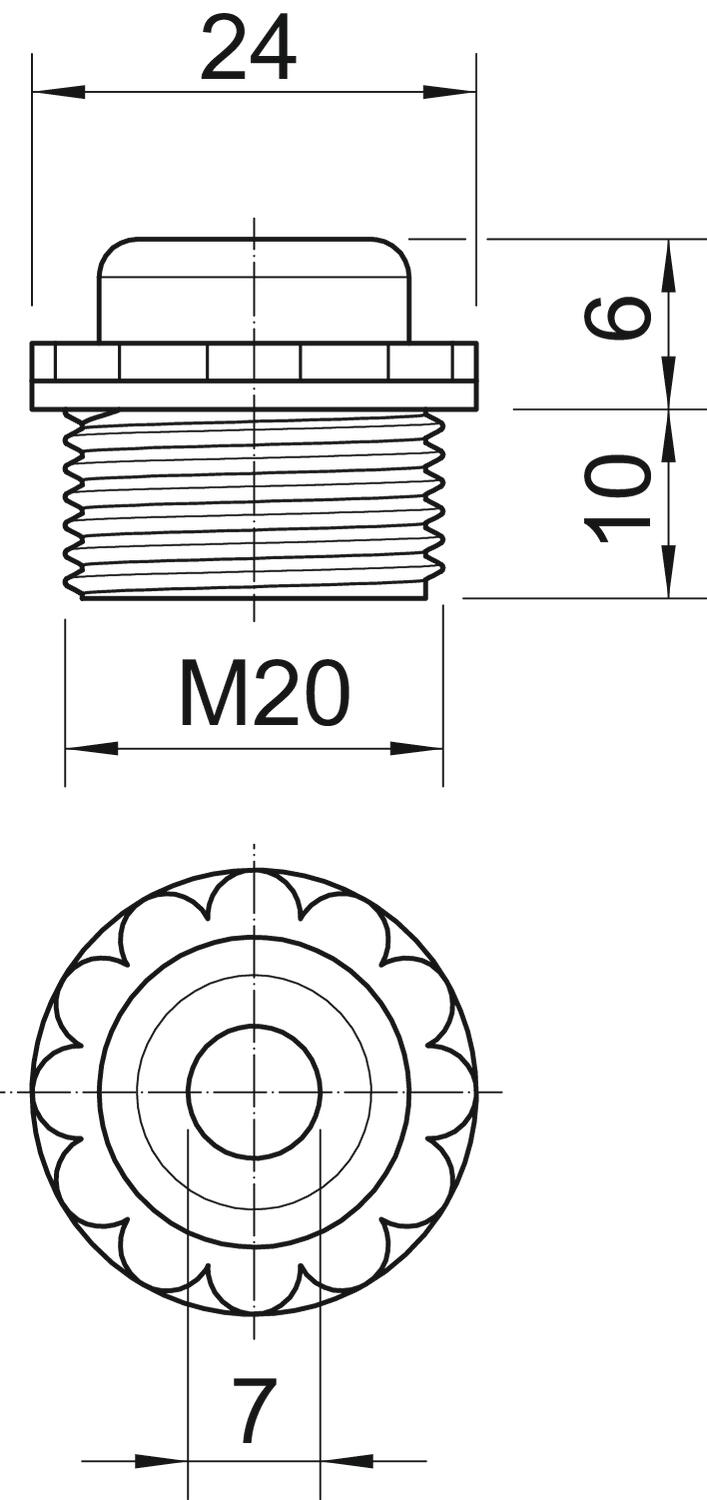

Dimension D 7 mm Dimension E 24 mm Dimension L1 10 mm Dimension L2 6 mm - All types
- Downloads
-
Data sheet 90 M20 OF / 2032015 , 0.22MB , pdfREACH Declaration of conformity 90 M20 OF / 2032015 , 0.12MB , pdfRoHS Declaration of conformity 90 M20 OF / 2032015 , 0.12MB , pdf
