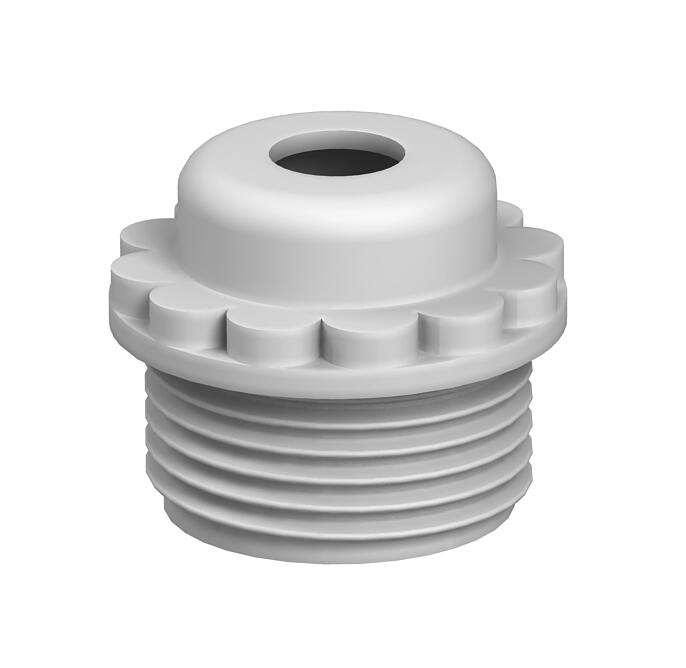

Screw-in nipple, metric thread, with opening
Item no. 2032011 | EAN 4012195477617
- Product description
-
Product description
With open cable entry.
Grip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With open cable entry.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Dimension M16 Halogen-free yes Material Polyethylene Protection rating IP54 Size M16 Thread length 8 mm WAF 16 Dimensions

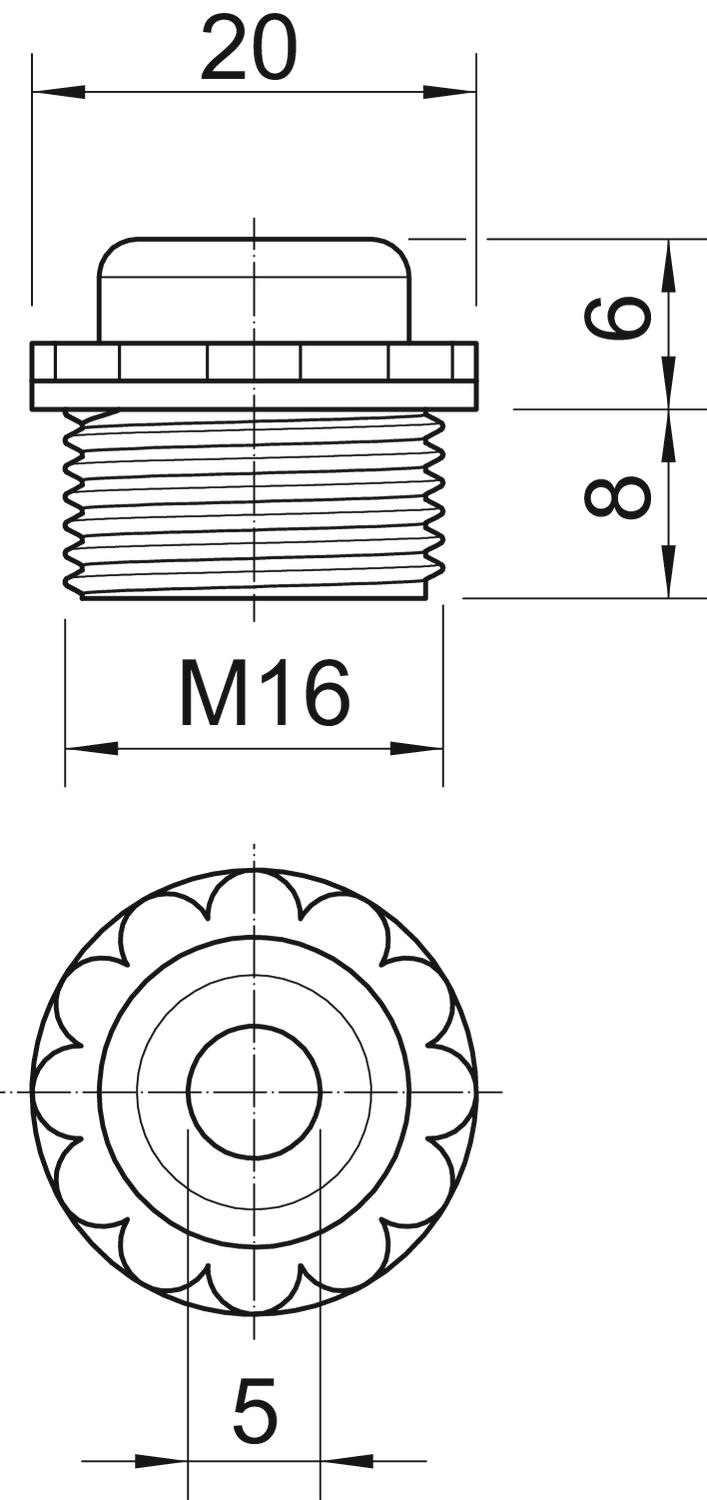

Dimension D 5 mm Dimension E 20 mm Dimension L1 8 mm Dimension L2 6 mm - All types
- Downloads
-
Data sheet 90 M16 OF / 2032011 , 0.23MB , pdfREACH Declaration of conformity 90 M16 OF / 2032011 , 0.12MB , pdfRoHS Declaration of conformity 90 M16 OF / 2032011 , 0.12MB , pdf
