Screw-in beam clamp, with gland hole 44 | 21 | 42 | | | | 20 | 11 | 2.5 | M10
morepic-1 morepic-2 video-1

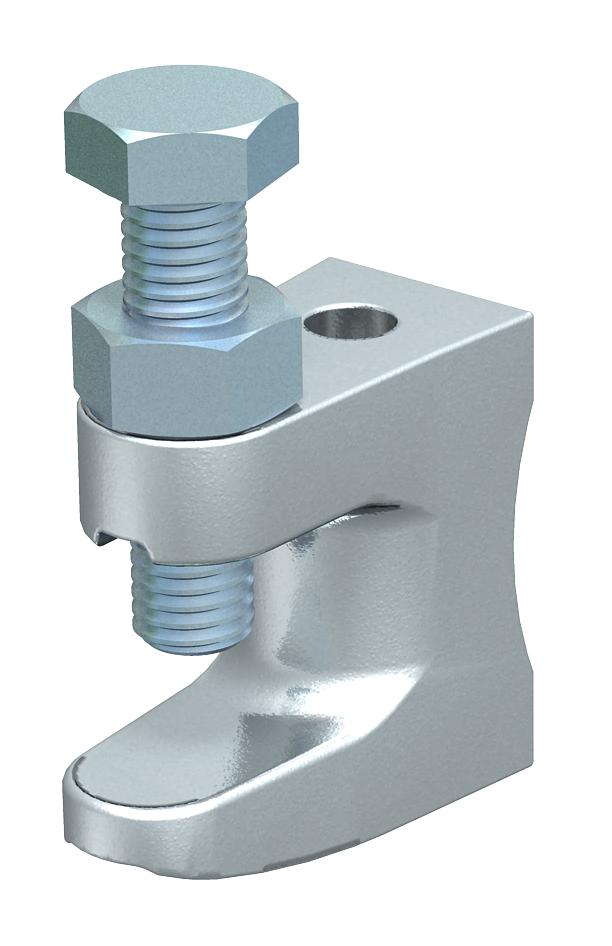

Screw-in beam clamp, with gland hole

Item no. 1488023 | EAN 4012195150916

Product description

Product description

With gland hole.

Max. tightening torque: 18 Nm
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 2,5 kN
Connection type/component Hole
Dimension 0-19mm
Fastening hole 11 mm
Fastening type Bolts
Flange thickness F max. 20 mm
Hinge, adjustable no
Hinged no
Material Cast iron
Max. Tightening torque 18 Nm
Thread M10
Thread metric 10

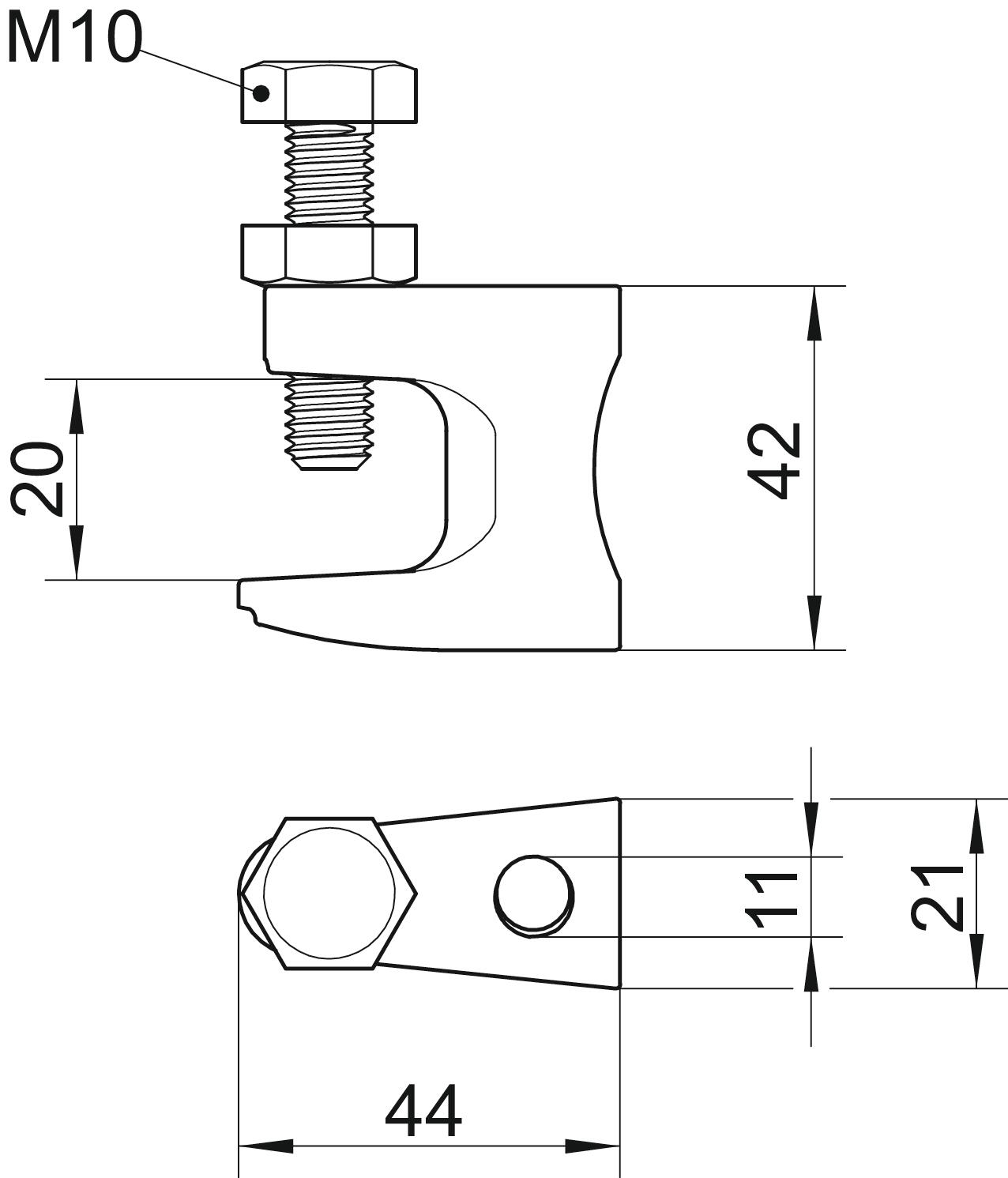

Dimensions

Dimension B 21 mm
Dimension D 11 mm
Dimension F 20 mm
Dimension G (mm) M10
Dimension H 42 mm
Dimension L 44 mm
Height 42 mm
Length 44 mm
Width 21 mm
All types

All types

Types Length Width Height Flange thickness F max. Fastening hole Breaking load Thread Item no. Quantity SSU
FL 1 TG 38 mm 19 mm 35 mm 18 mm 9 mm 1.2 kN M8 1488015
50 piece
FL 2 TG 44 mm 21 mm 42 mm 20 mm 11 mm 2.5 kN M10 1488023
50 piece
FL 3 TG 58 mm 23.5 mm 54 mm 26 mm 13 mm 3.5 kN M10 1488031
25 piece
