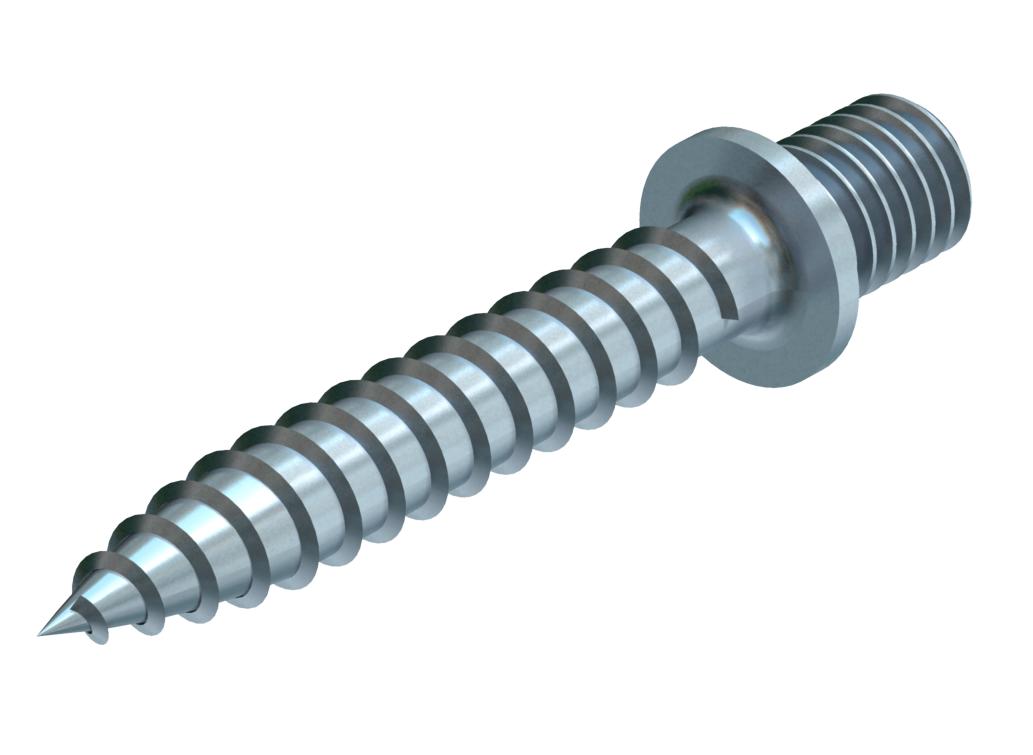

Screw-in anchor with M8 thread
Item no. 3133230 | EAN 4012195250579
- Product description
-
Product description
With wood screw shank and M8 thread.
-
- Technical data
-
Technical data

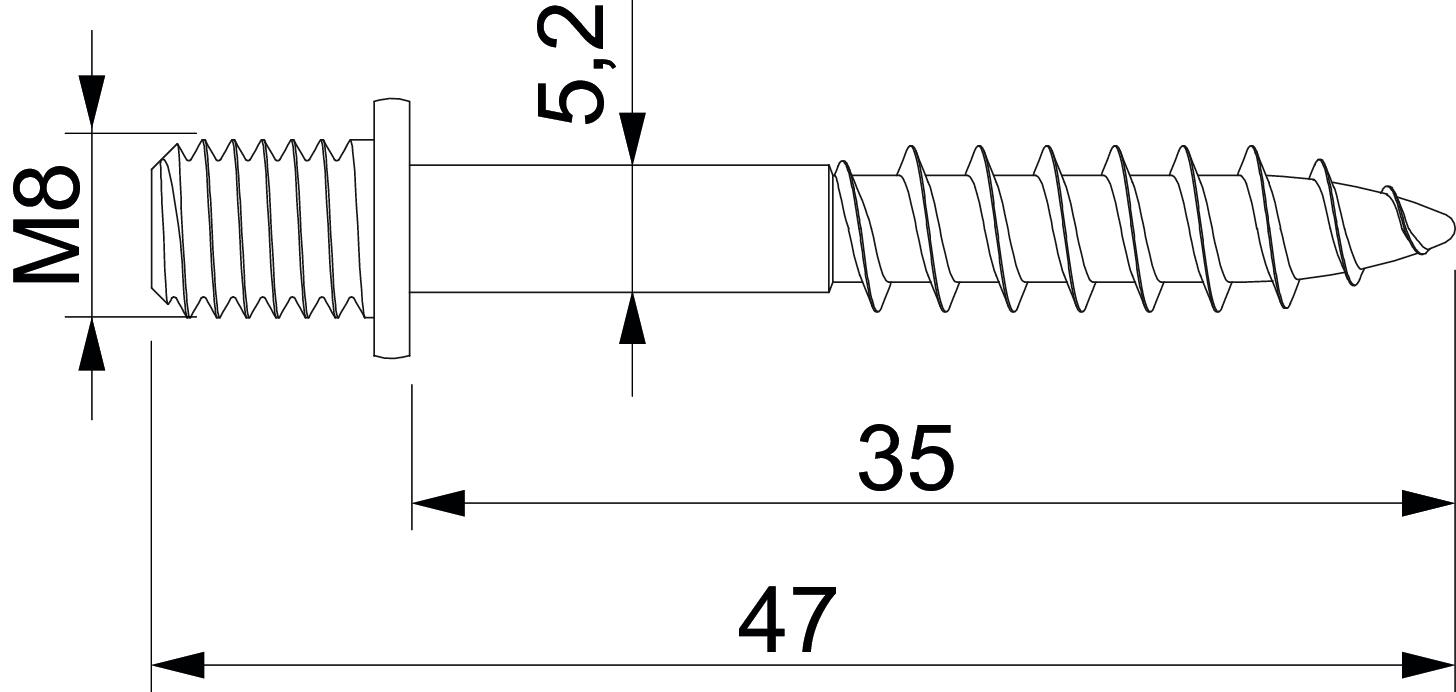

Dimension M8x35mm Dimension D 5,2 mm Dimension G M8 mm Dimension L 47 mm Dimension L1 35 mm Hardened no Head shape Miscellaneous Length 35 mm Material Steel Screw system Miscellaneous Shank diameter 5,2 mm Surface Electrogalvanized Two-compartment no - All types
- Downloads
-
Data sheet 985 M8 35 / 3133230 , 0.11MB , pdfDeclaration of conformity 985 M8 35 / 3133230 , 0.06MB , pdfREACH Declaration of conformity 985 M8 35 / 3133230 , 0.12MB , pdfRoHS Declaration of conformity 985 M8 35 / 3133230 , 0.12MB , pdf
