Screw-in anchor with M6 thread 35 | 4.3

morepic-1

morepic-2

Screw-in anchor with M6 thread

Item no. 3133036 | EAN 4012195250456

Item no. / Types

Length

Dimension D	4.3 mm

Product description

Product description

With wood screw shank and M6 thread.

Technical data

Technical data

Dimension	M6x35mm
Dimension D	4,3 mm
Dimension G	M6 mm
Dimension L	45 mm
Dimension L1	35 mm
Hardened	no
Head shape	Miscellaneous

Length	35 mm
Material	Steel
Screw system	Miscellaneous
Shank diameter	4,3 mm
Surface	Electrogalvanized
Two-compartment	no

All types

All types

Types	Length	Dimension D	Item no.	Quantity	SSU
985 M6 25	25 mm	4.3 mm	3133028	piece	100 piece
985 M6 35	35 mm	4.3 mm	3133036	piece	100 piece

Downloads

Data sheet 985 M6 35 / 3133036 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 985 M6 35 / 3133036 , 0.06MB , pdf

Download

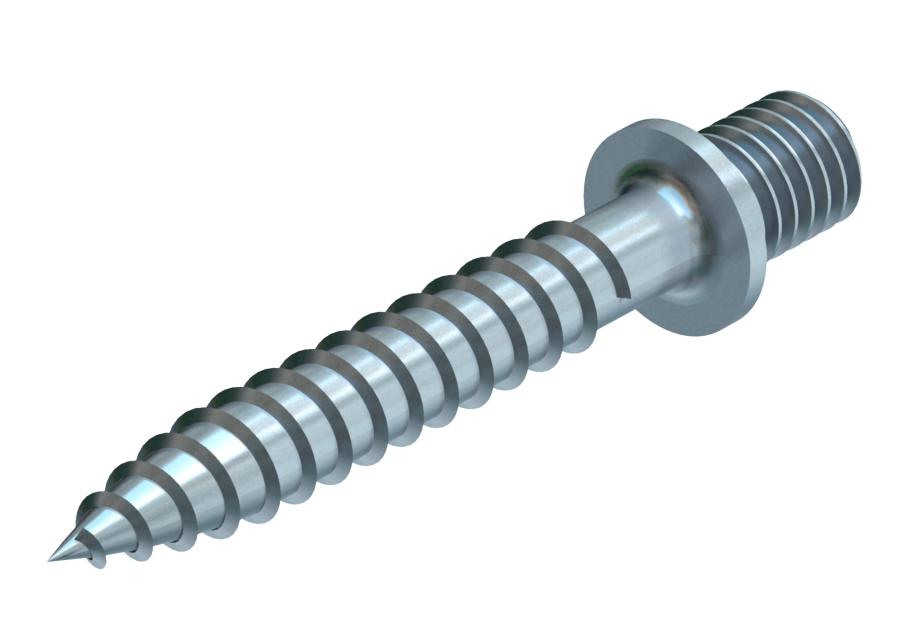

Product graphic 985 M6 35 / 3133036, 29.46 kB, jpg

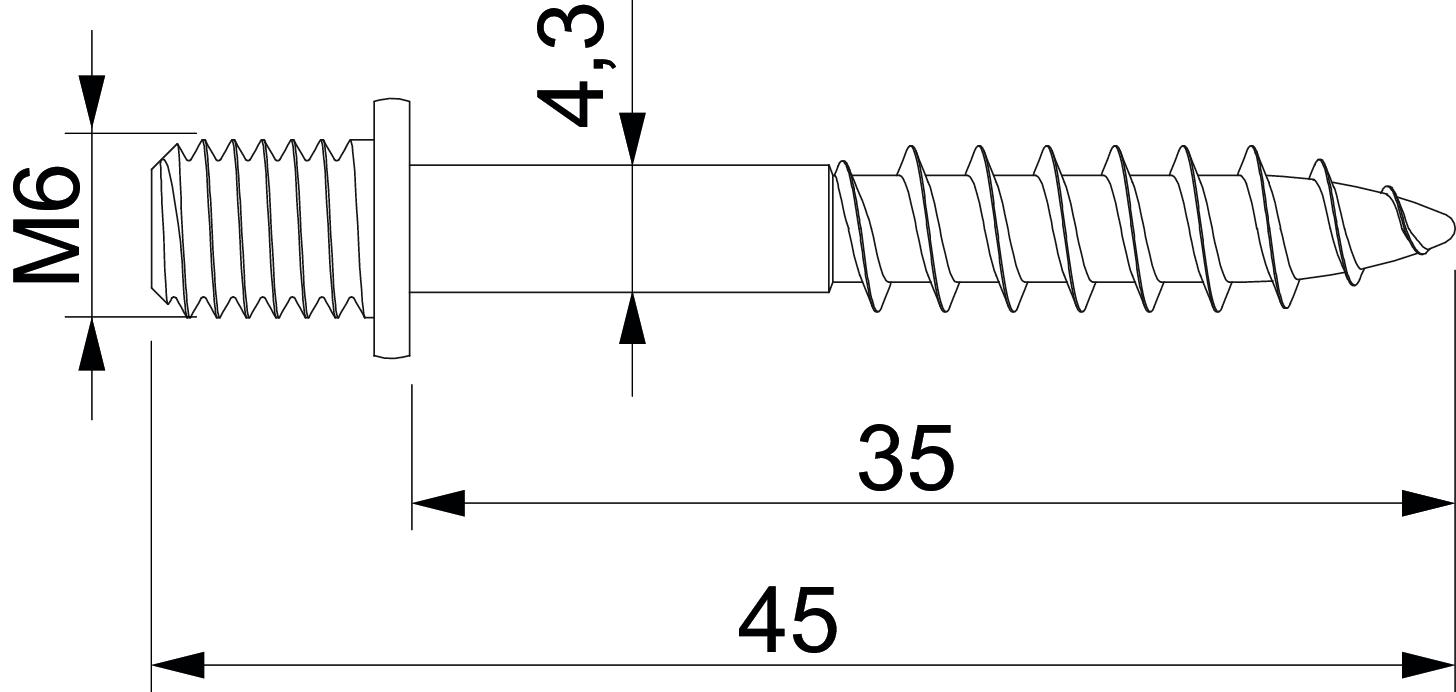

Scale drawing 985 M6 35 / 3133036, 56.07 kB, jpg

985 M6 35 / 3133036
