Rung support plate for the maintenance of electrical function FS
Item no. 6222978 | EAN 4012196555970
- Product description
-
Product description
Rung support plates to increase the support area for the cables in the fittings for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Use the support plates to ensure the largest possible support surface in the cable ladder fittings for cables that maintain electrical function in the event of fire. The rung support plates are just laid loosely on the rungs of the cable ladder fittings. The lugs pointing down prevent slippage.
-
- Technical data
-
Technical data

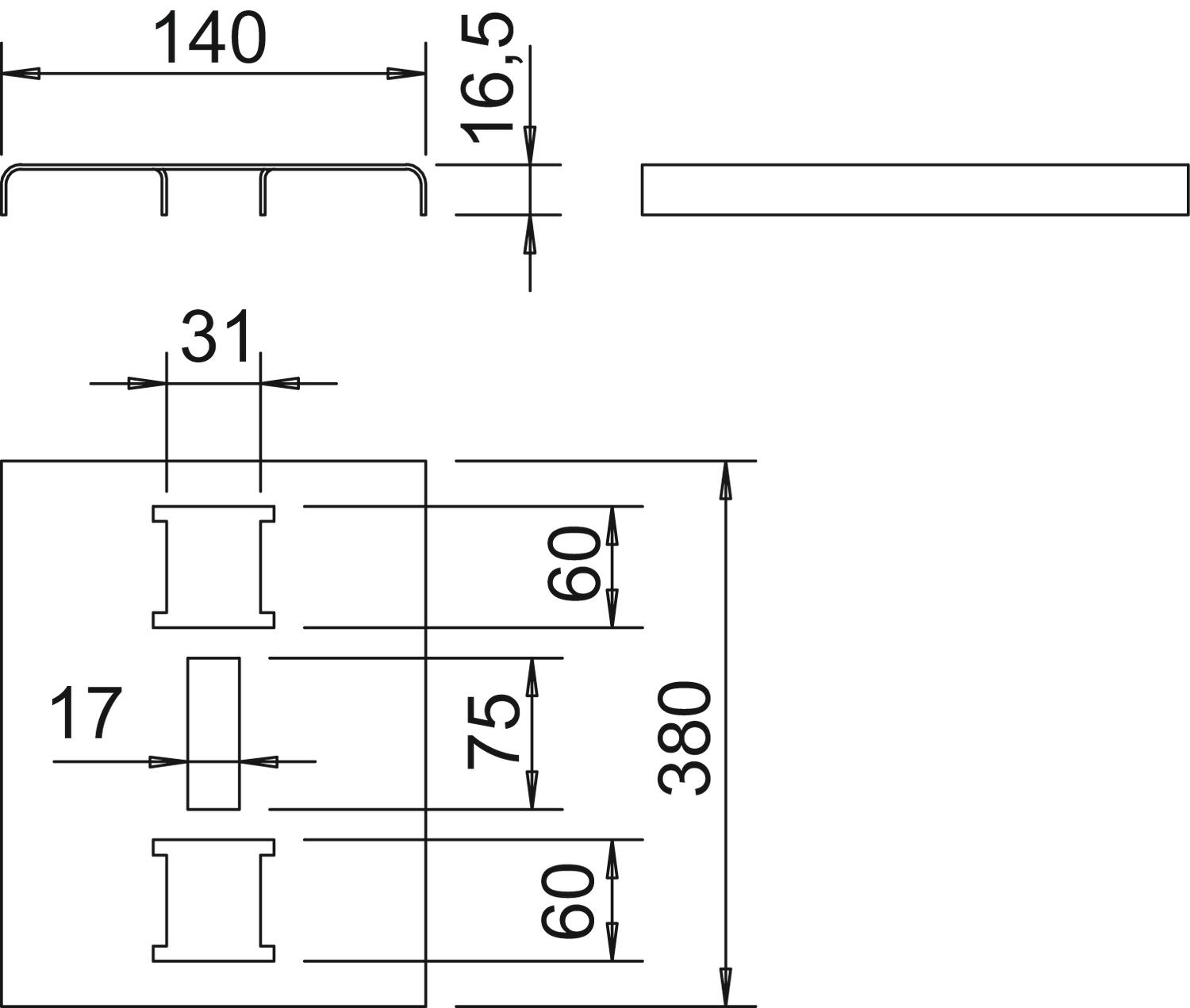

Dimension 380x140x16,5 Dimension a 60 mm Dimension b 75 mm Dimension B 380 mm Height 16,5 mm Maintain electrical functions yes Material Steel Material thickness 1,5 mm Rustproof steel, pickled no Surface Strip galvanized Wide-span version no Width 380 mm With perforation yes - All types
- Downloads
-
Data sheet SAB40 FS / 6222978 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity SAB40 FS / 6222978 , 0.12MB , pdfRoHS Declaration of conformity SAB40 FS / 6222978 , 0.13MB , pdfNo invitation to tender text is available for this product.
