Rung support plate for the maintenance of electrical function FS

Item no. 6222943 | EAN 4012196555857

1.5 mm
Product description

Product description

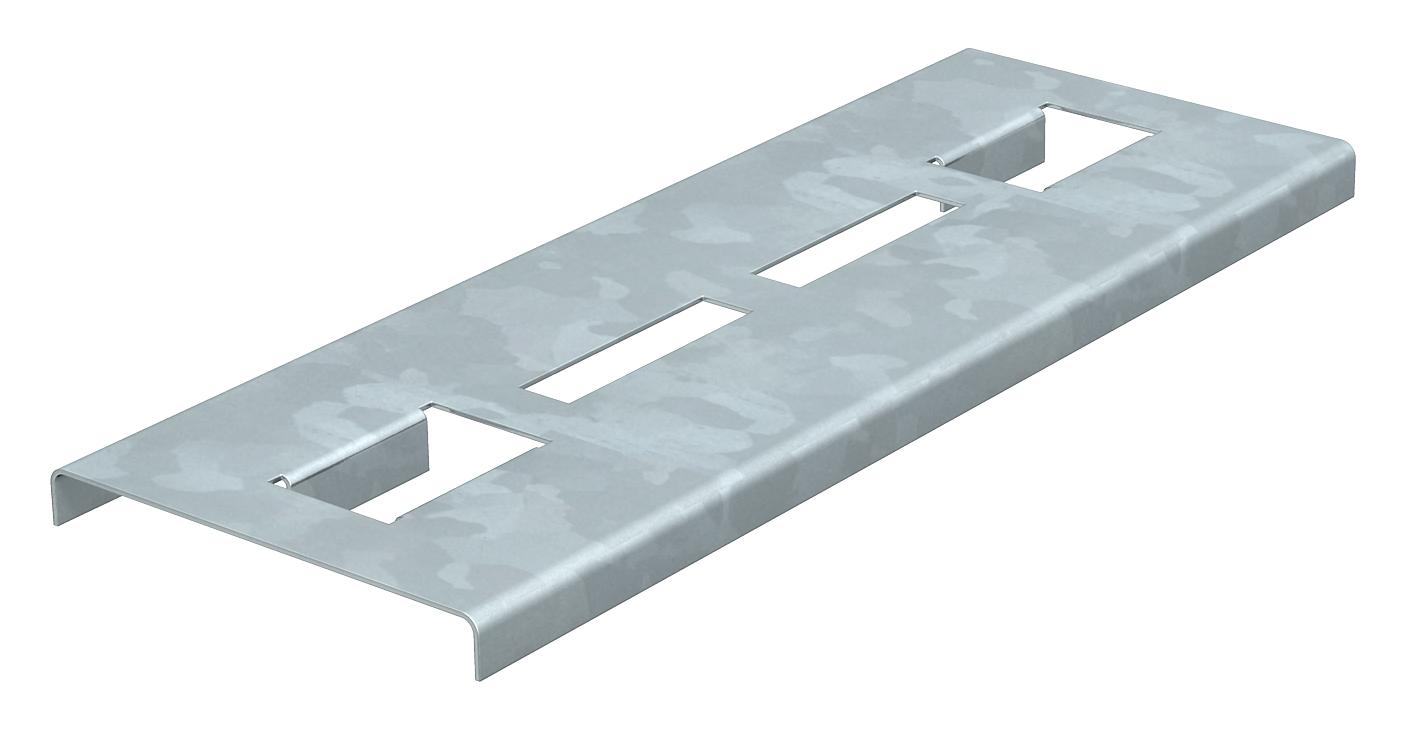

Rung support plates to increase the support area for the cables in the fittings for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Use the support plates to ensure the largest possible support surface in the cable ladder fittings for cables that maintain electrical function in the event of fire. The rung support plates are just laid loosely on the rungs of the cable ladder fittings. The lugs pointing down prevent slippage.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

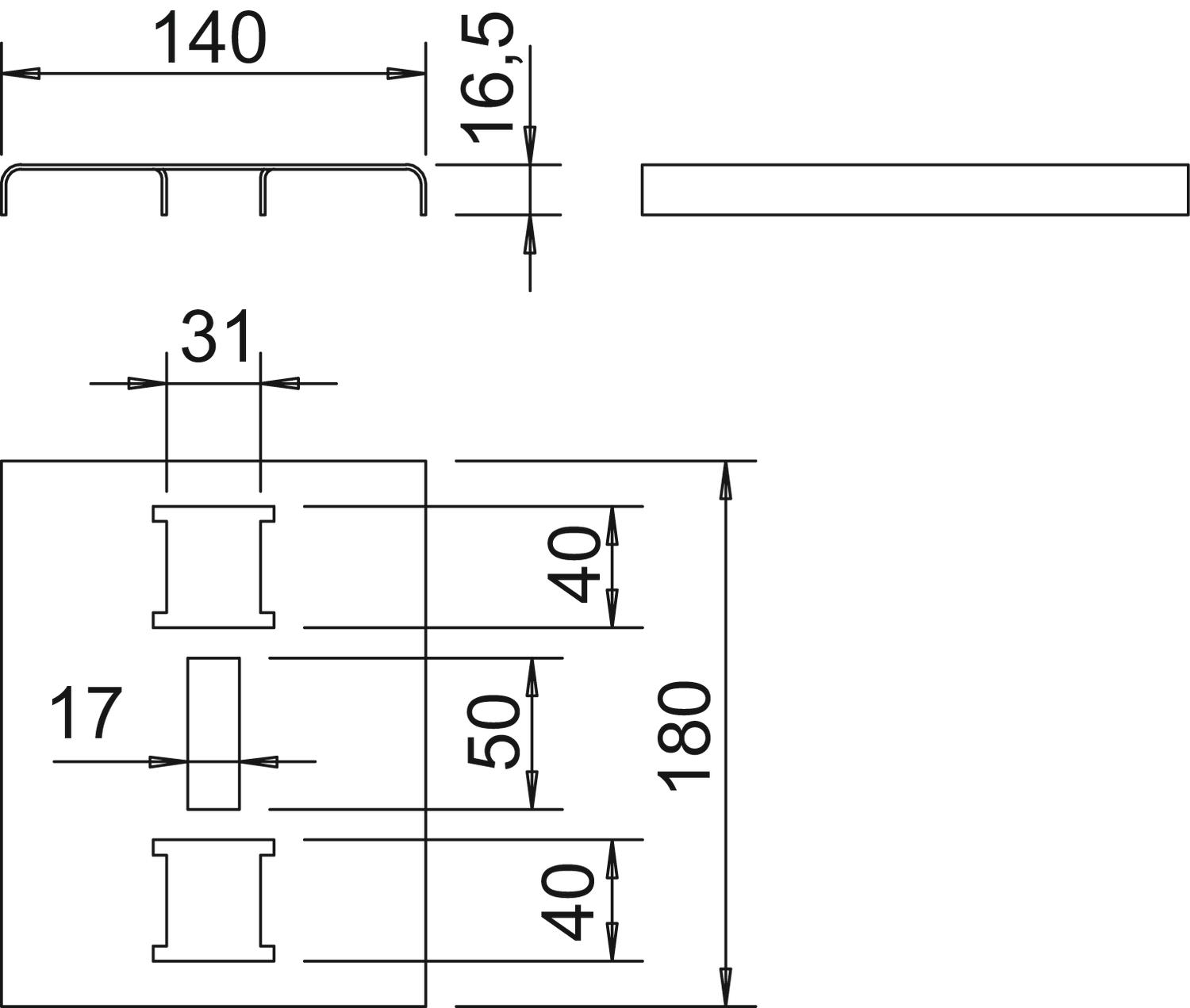

Dimension 180x140x16,5
Dimension a 40 mm
Dimension B 180 mm
Dimension b 50 mm
Height 16,5 mm
Maintain electrical functions yes
Material Steel
Material thickness 1,5 mm
Rustproof steel, pickled no
Surface Strip galvanized
Wide-span version no
Width 180 mm
With perforation yes
All types

All types

Types Width Material thickness Item no. Quantity SSU
SAB20 FS 180 mm 1.5 mm 6222943
25 piece
SAB30 FS 280 mm 1.5 mm 6222951
25 piece
SAB40 FS 380 mm 1.5 mm 6222978
25 piece
Downloads

Download

REACH Declaration of conformity SAB20 FS / 6222943 , 0.12MB , pdf
RoHS Declaration of conformity SAB20 FS / 6222943 , 0.13MB , pdf

No invitation to tender text is available for this product.
