Rung CK 40 154

Rung CK 40

Item no. 6008224 | EAN 4012196629718

Item no. / Types

Width

Back to overview

Product description

Product description

CK40 rung for use in heavy-duty vertical ladders and in IS 8 supports.

Technical data

Technical data

Colour	zinc
Dimension	B154mm
Height	100 mm
lampDimension WxH	40 x 22,5 mm
Length	154 mm

Material	Steel
Material thickness	2 mm
Slot width	18 mm
Surface	Hot-dip galvanised
Width	154 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
CK 40 20 FT	154 mm	6008224	piece	1 piece
CK 40 30 FT	254 mm	6008232	piece	1 piece
CK 40 40 FT	354 mm	6008240	piece	1 piece
CK 40 50 FT	454 mm	6008259	piece	1 piece
CK 40 60 FT	554 mm	6008267	piece	1 piece
CK 40 70 FT	654 mm	6008275	piece	1 piece
CK 40 80 FT	754 mm	6008283	piece	1 piece
CK 40 90 FT	854 mm	6008291	piece	1 piece
CK 40 100 FT	954 mm	6008305	piece	1 piece
CK 40 110 FT	1054 mm	6008313	piece	1 piece
CK 40 120 FT	1154 mm	6008321	piece	1 piece

Downloads

Data sheet CK 40 20 FT / 6008224 , 0.19MB , pdf

Guide KTS cable tray systems , 1.61MB , pdf

Catalogue Cable support systems , 54.52MB , pdf

EU declaration of conformity CK 40 20 FT / 6008224 , 0.10MB , pdf

REACH Declaration of conformity CK 40 20 FT / 6008224 , 0.12MB , pdf

Download

RoHS Declaration of conformity CK 40 20 FT / 6008224 , 0.13MB , pdf

Download

Mounting instructions Wide span cable ladders , 11.33MB , pdf

Mounting instructions General information on the mounting , 2.65MB , pdf

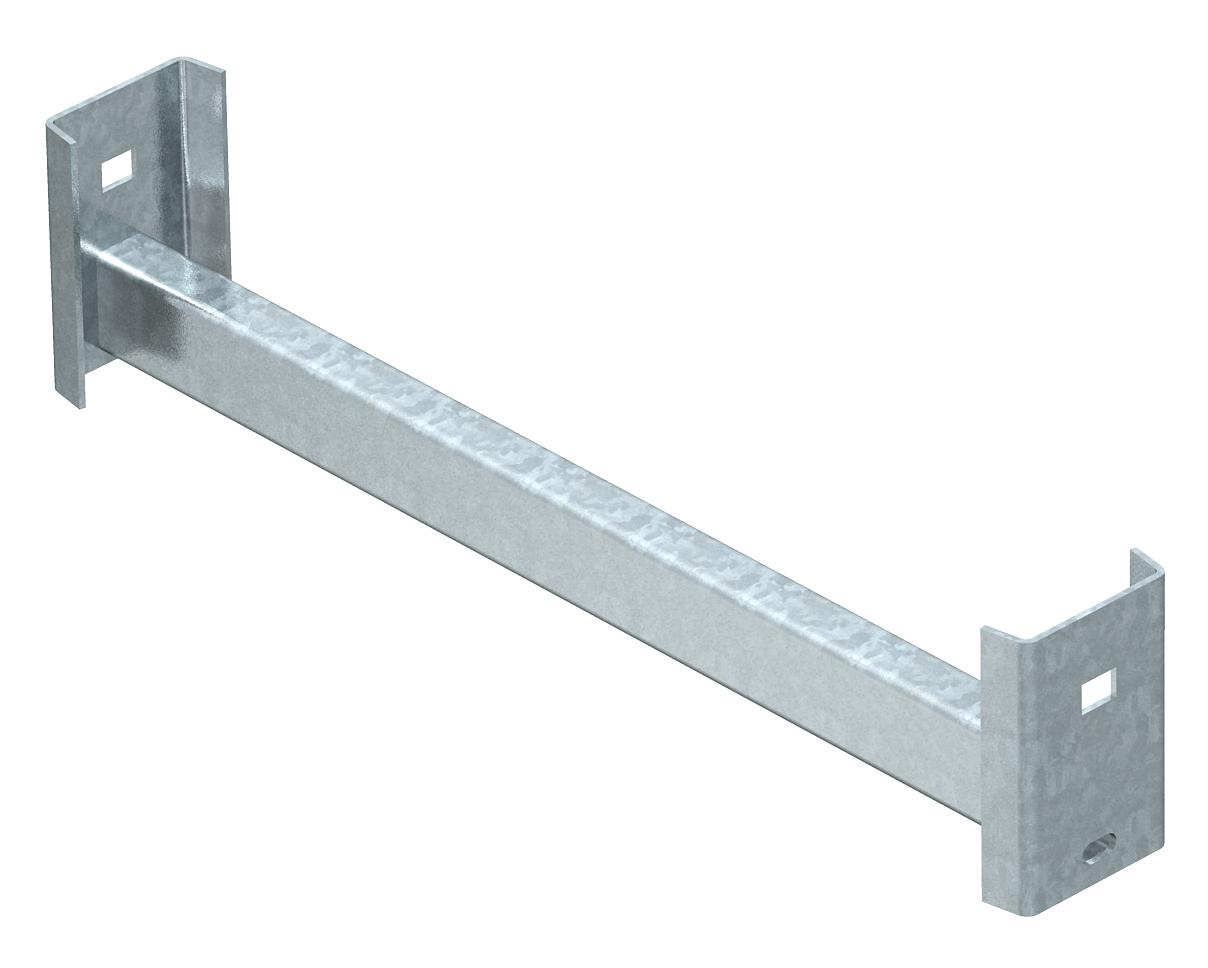

Product graphic CK 40 20 FT / 6008224, 43.03 kB, jpg

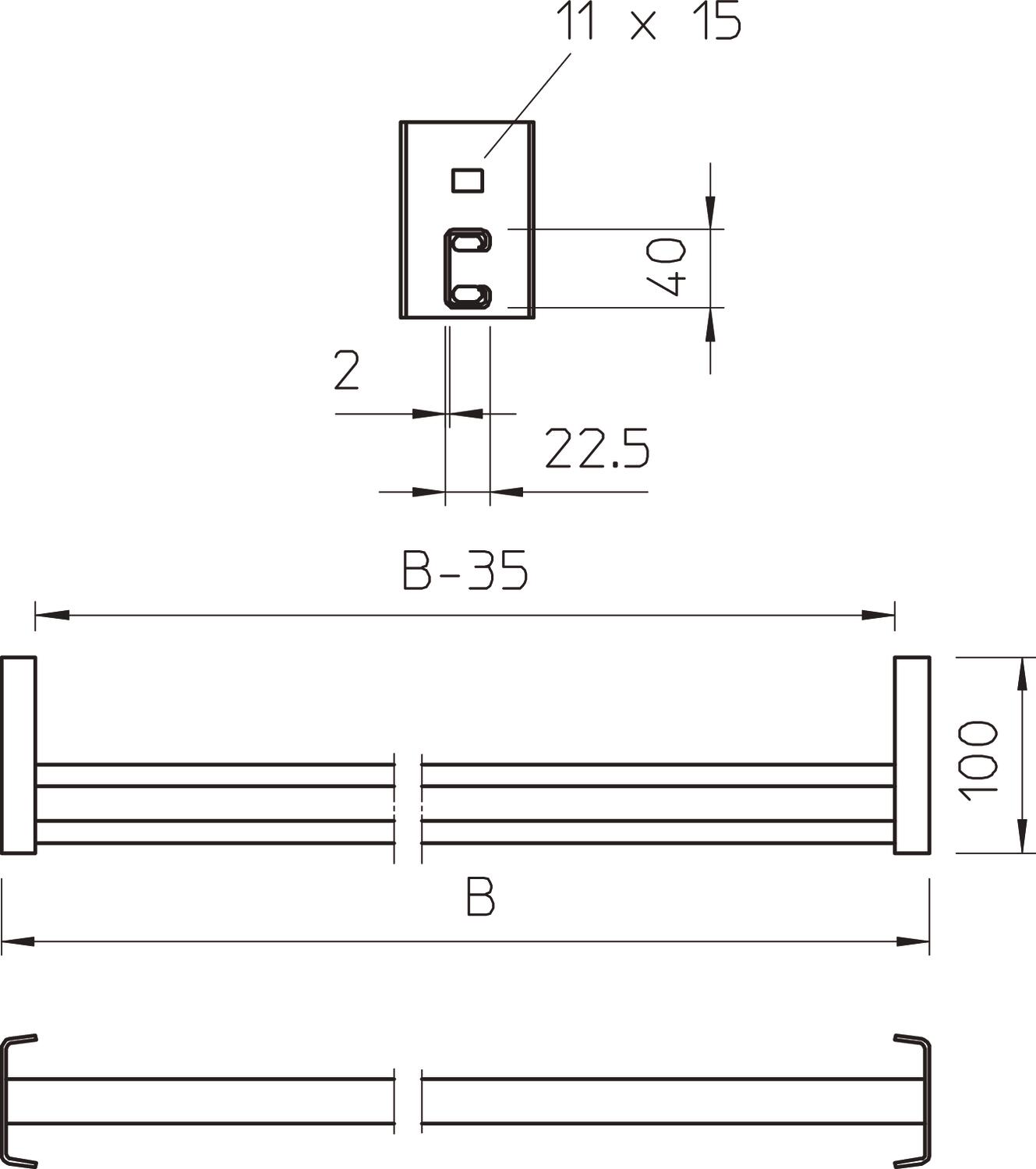

Scale drawing CK 40 20 FT / 6008224, 63.40 kB, jpg

CK 40 20 FT / 6008224
