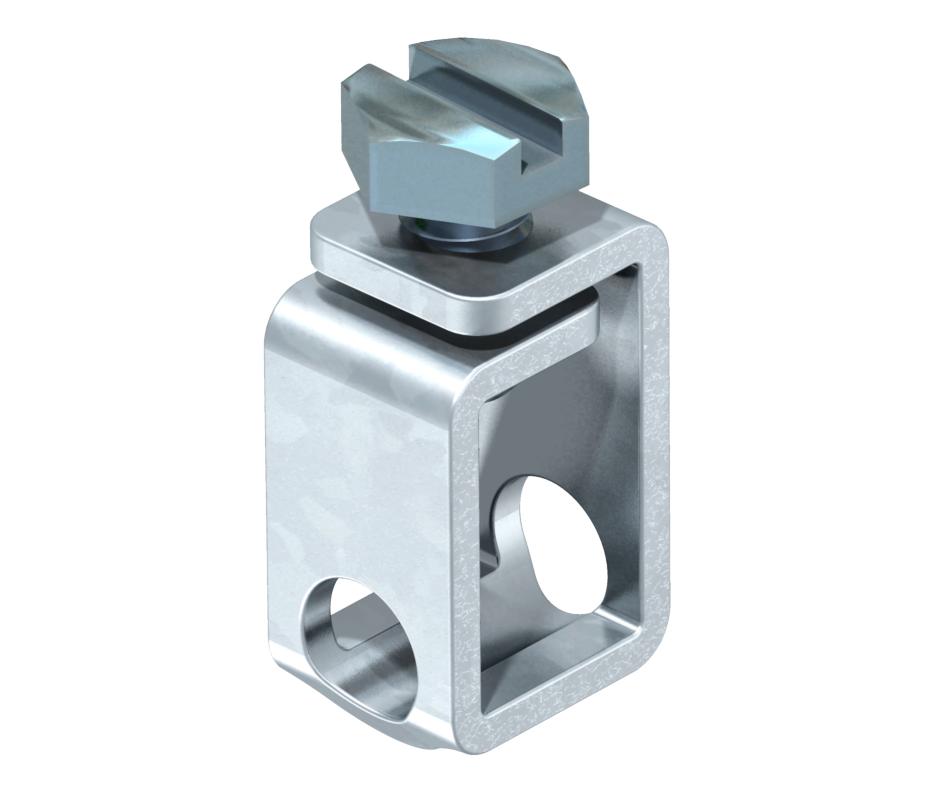

Round cable terminal to 25 mm² for 1801 VDE 12 | 2.5−25 mm²

Round cable terminal to 25 mm² for 1801 VDE

Item no. 5015758 | EAN 4012195378853

Item no. / Types	5015758 / 1801 RK25

Width	12 mm

Connection options	2.5−25 mm²

Product description

Product description

• For single or multi-wire cables 2.5–25 mm²
• For fine-wire cables to 16 mm² (max. Ø 7 mm)
• 1 division unit
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
• Tension clamp with screw lock against self-loosening
(e.g. required in industry and in explosion-protected areas)

Technical data

Technical data

Connection options	2.5−25 mm²
Dimension	25mm²
Dividing unit TE (10 mm)	1
Material	Steel
Max. Conductor cross-section	25 mm²

Suitable for busbar	Other
Suitable for ribbon conductor connection	no
Suitable for round cable connection	yes
Suitable for sector conductor connection	no
Surface	Electrogalvanized
