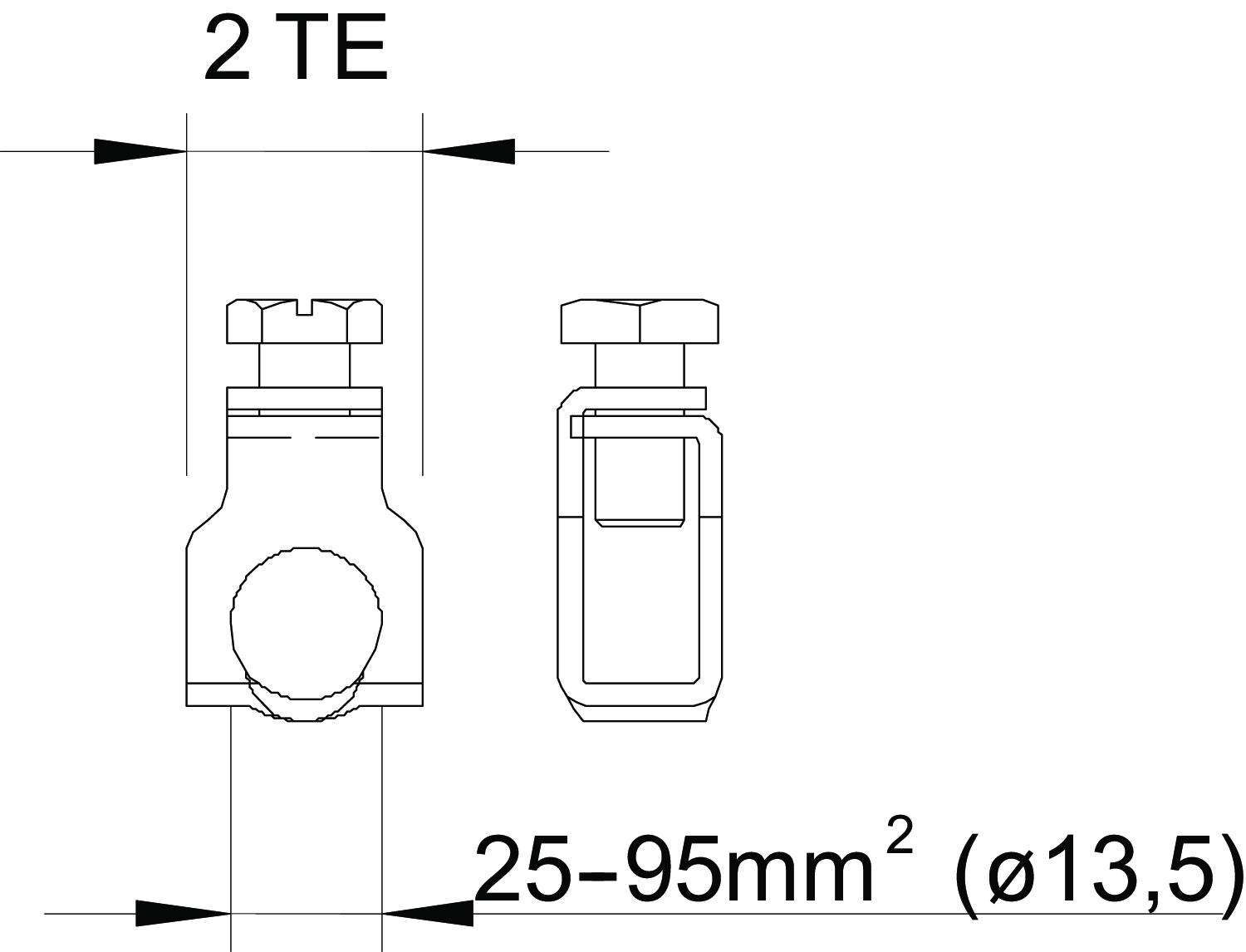

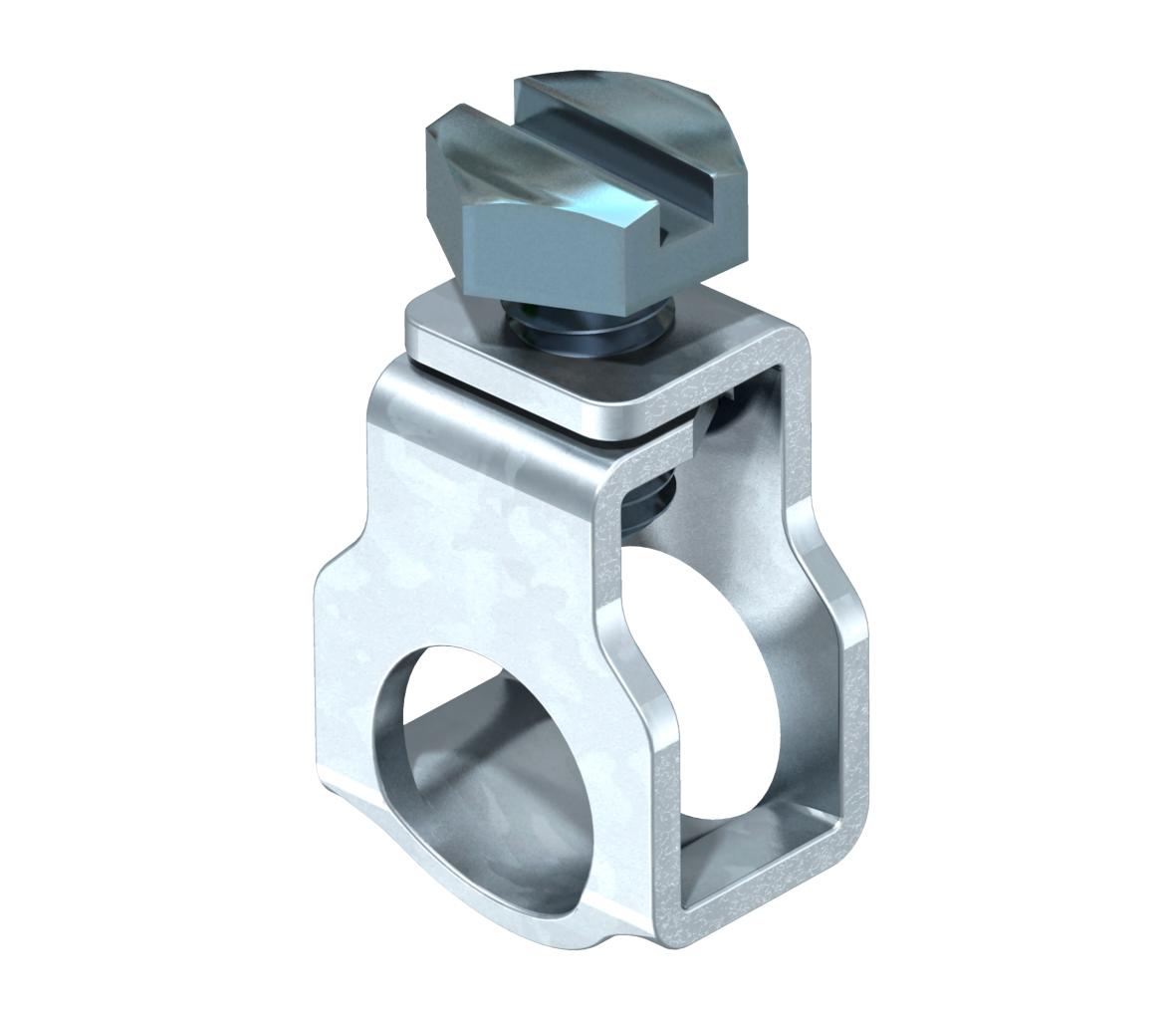

Round cable terminal from 25 mm² for 1801 VDE 14 | 25−95 mm²

Round cable terminal from 25 mm² for 1801 VDE

Item no. 5015766 | EAN 4012195378914

Item no. / Types	5015766 / 1801 RK95

Width	14 mm

Connection options	25−95 mm²

Product description

Product description

• For single or multi-wire cables 25–95 mm²
• For fine-wire cables to 70 mm² (max. Ø 13.5 mm)
• 2 division units
• Lightning current carrying capacity 100 kA (10/350)
• Electrogalvanised steel
• Tension clamp with screw lock against self-loosening
(e.g. required in industry and in explosion-protected areas)

Technical data

Technical data

Connection options	25−95 mm²
Dimension	95mm²
Dividing unit TE (10 mm)	2
Material	Steel
Max. Conductor cross-section	95 mm²
Suitable for busbar	Other

Suitable for ribbon conductor connection	no
Suitable for round cable connection	yes
Suitable for sector conductor connection	no
Surface	Electrogalvanized
Width	14 mm
